  • 20 GPM 12V G20® Series Fuel Transfer Pump 162000-03
  • 20 GPM 12V G20® Series Fuel Transfer Pump 162000-03
  • 20 GPM 12V G20® Series Fuel Transfer Pump 162000-03
  • 20 GPM 12V G20® Series Fuel Transfer Pump 162000-03
  • 20 GPM 12V G20® Series Fuel Transfer Pump 162000-03

    • 20 GPM 12V G20® Series Fuel Transfer Pump 162000-03

    GPI

    $1,278.37
    (No reviews yet) Write a Review
    SKU:
    GPI 162000-03
    UPC:
    UPC 031401007183
    Weight:
    0.00 LBS
    Compatible fluids:
    For use with Gasoline (up to 15% alcohol blends such as E15), diesel fuel (up to 20% biodiesel blends such as B20) and kerosene
    Voltage:
    12V (DC)
    Flow:
    20 GPM (76 L/min)
    Nozzle type:
    1 in. FNPT Inlet, Automatic Shut-off, Diesel
    Mount type:
    Spin Collar, 2in. male NPT
    Power cord:
    18 ft. (5.5m), 12/2 AWG, Factory Installed
    Dispensing hose:
    14 ft. (5.2m) x 1 in. Dispensing Hose
    RPM:
    2000
    Horsepower:
    4/10HP
    Inlet connection:
    1 in. FNPT
    Outlet connection:
    1 in. FNPT
    Pump housing material:
    Powder Coated, Corrosion-Resistant Diecast Aluminum
    Adding to cart… category.add_cart_announcement

    Product Description

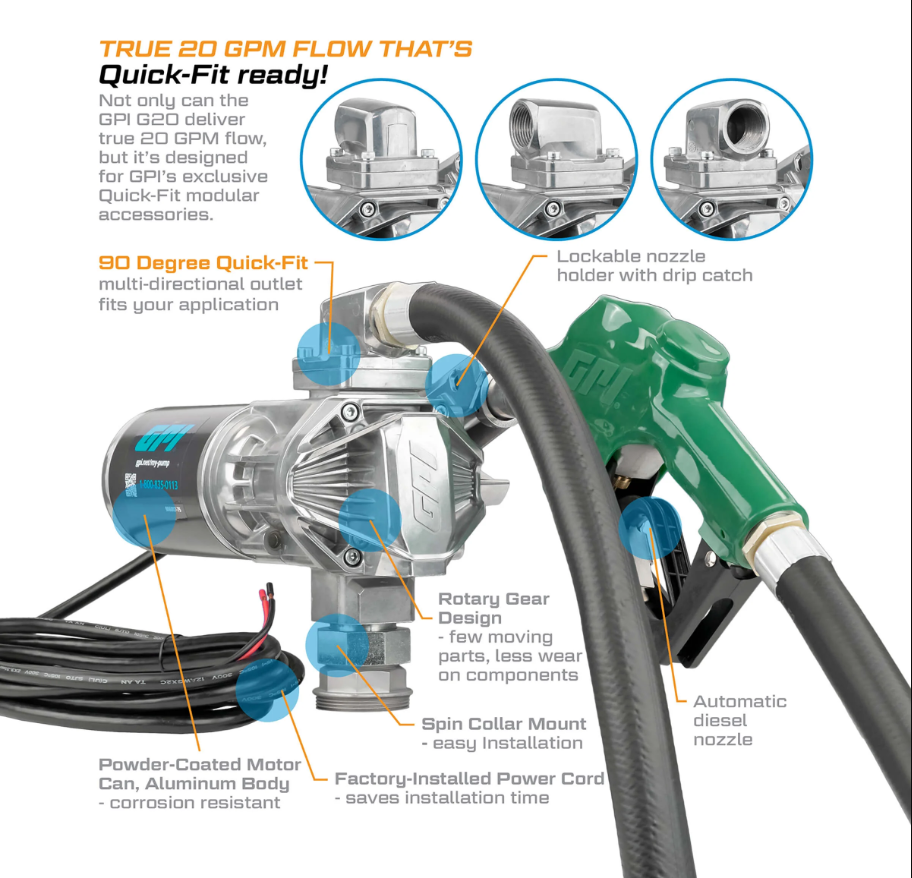

  • The G20-012AD features a new modular design with simple 4-bolt connection points to complement the Quick-Fit accessories.
  • Attach a filter, meter or both quickly and easily.
  • This auto diesel nozzle /14 ft hose model delivers a True 20.
  • Featuring a rotary gear design and powder coated die cast aluminum body to ensure a long life with minimal maintenance.
  • Includes a factory-installed powercord for quick installation.
  • Auto diesel nozzle model.
  • UL listed to US and Canadian safety standards.

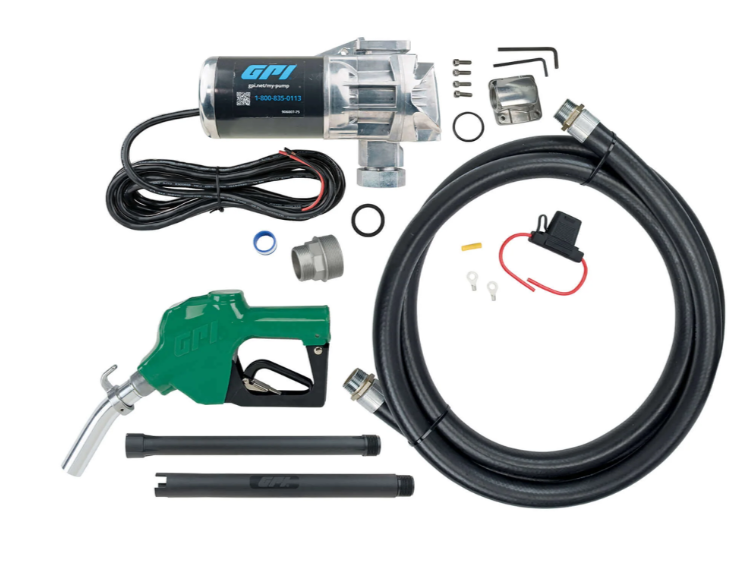

  • Includes:G20-12AD 12V DC 20 GPM fuel transfer pump, auto-shut off diesel nozzle, dispensing hose, factory-installed power cord, telescoping suction pipe, modular fitting w/hardware, tank adapter, fuse assembly, owner's manual

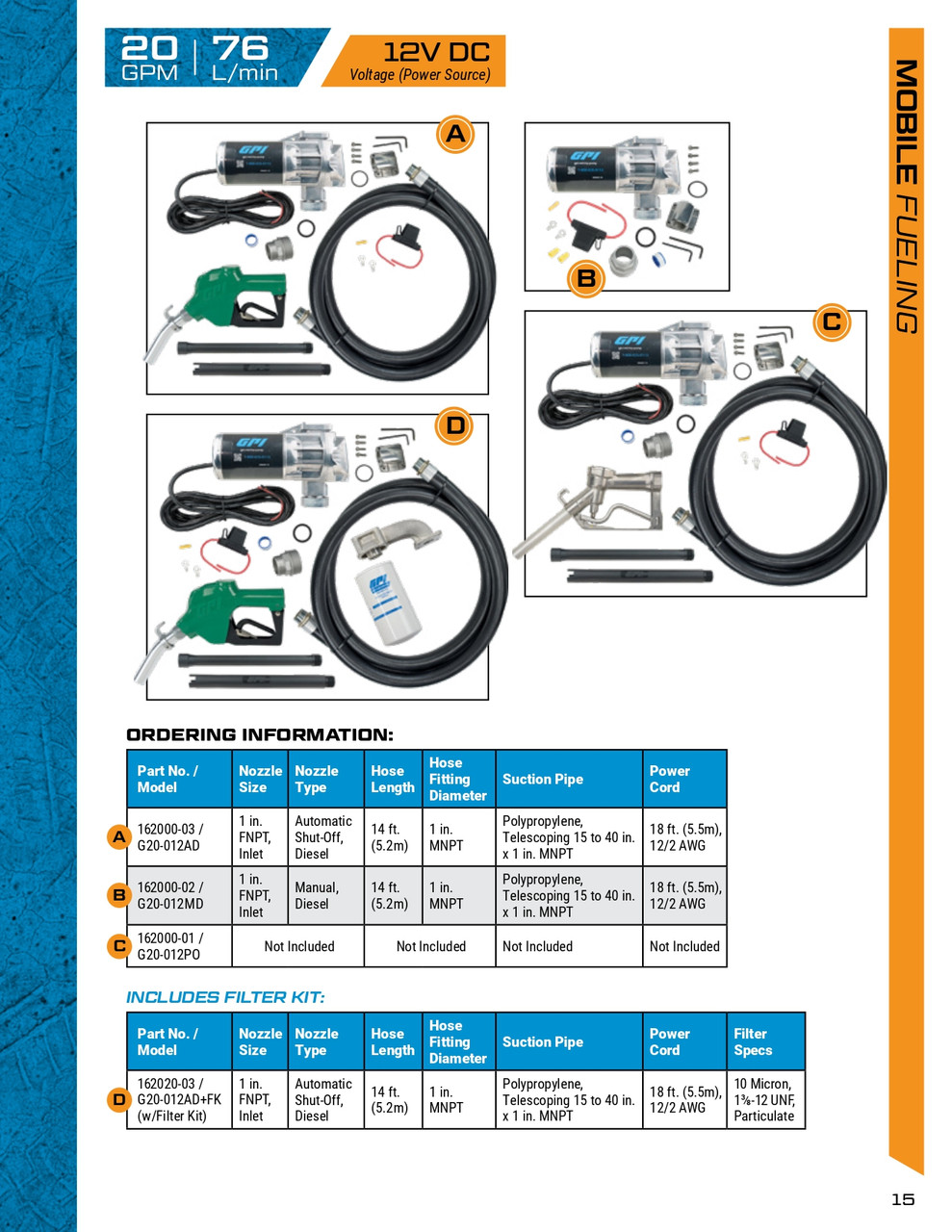

    adobepdficon.png GPI Catalog

    • Product Videos

    Custom Field

    Compatible fluids For use with Gasoline (up to 15% alcohol blends such as E15), diesel fuel (up to 20% biodiesel blends such as B20) and kerosene
    Voltage 12V (DC)
    Flow 20 GPM (76 L/min)
    Nozzle type 1 in. FNPT Inlet, Automatic Shut-off, Diesel
    Mount type Spin Collar, 2in. male NPT
    Power cord 18 ft. (5.5m), 12/2 AWG, Factory Installed
    Dispensing hose 14 ft. (5.2m) x 1 in. Dispensing Hose
    RPM 2000
    Horsepower 4/10HP
    Inlet connection 1 in. FNPT
    Outlet connection 1 in. FNPT
    Pump housing material Powder Coated, Corrosion-Resistant Diecast Aluminum
