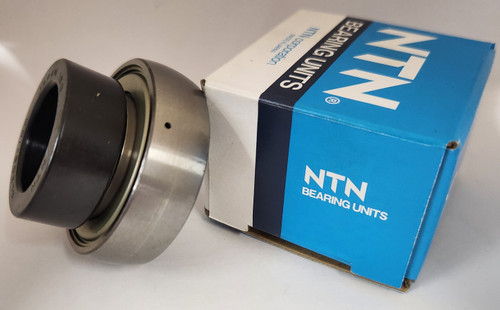

  • 2" Spherical Ball Bearing Insert w/Eccentric Lock Collar AEL210-200D1
  • 2" Spherical Ball Bearing Insert w/Eccentric Lock Collar AEL210-200D1

    • 2" Spherical Ball Bearing Insert w/Eccentric Lock Collar AEL210-200D1

    NTN

    $66.60
    (No reviews yet) Write a Review
    SKU:
    NTN AEL210-200D1
    Weight:
    2.50 LBS
    Width:
    3.75 (in)
    Height:
    2.13 (in)
    Depth:
    3.75 (in)
    Bearing type:
    Deep groove self aligning ball bearing insert
    Outer diameter profile:
    Spherical
    Shaft profile:
    Round
    Material:
    Through hardened steel
    Limiting speed:
    3100 RPM (grease)
    Seal type:
    Contact
    Seal material:
    Nitrile rubber
    Classification:
    Standard duty
    Locking device:
    Eccentric locking collar
    Greasable:
    Yes
    Radial internal clearance:
    CN
    Static load rating:
    5200 lbf
    Dynamic load rating:
    9800 lbf
    Enclosure:
    Double sealed
    Operating temperature range:
    -10°C ~ 100°C (14°F ~ 212°F)
    Adding to cart… category.add_cart_announcement

    Product Description

  • Insert bearings are used in a wide spectrum of applications ranging from industrial, agricultural, food handling, manufacturing, and heavy vehicle maintenance
  • These common insert bearings, regardless their locking style, can be placed in may types of pillow blocks, 2-bolt, 3-bolt and 4-bolt flanges, take-up units as well as stamped steel housings
  • The "D1" suffix found on selected insert bearings designates that bearing is greasable and has at least one opening in the outer race for lubricant access
  • The "W3" suffix denotes the locking collar's set screw has a cup point
  • Locking collar, spherical outer diameter, insert bearings are available in the standard duty, flush backside,"200" series (i.e AEL208-108) and the wider, extended inner race series w/flinger option (UEL208-108)
  • Locking collar, cylindrical insert bearings with smooth outer diameters and flush backsides are available in the (i.e AELS208-108) series and allow you to press fit the bearing into place rather than mount in a self aligning housing
  • Another variant of the cylindrical insert bearing is the double set screw w/snap ring grooved O.D. denoted as the "ASS" series (ASS205-100D1) which offers even more mounting options
  • For medium duty self aligning ball bearing applications, please use the set screw w/flinger "X" (i.e. UCX08-108) series
  • For heavy duty self aligning ball bearing applications, please use the set screw w/flinger "300" (i.e. UC308-108) series

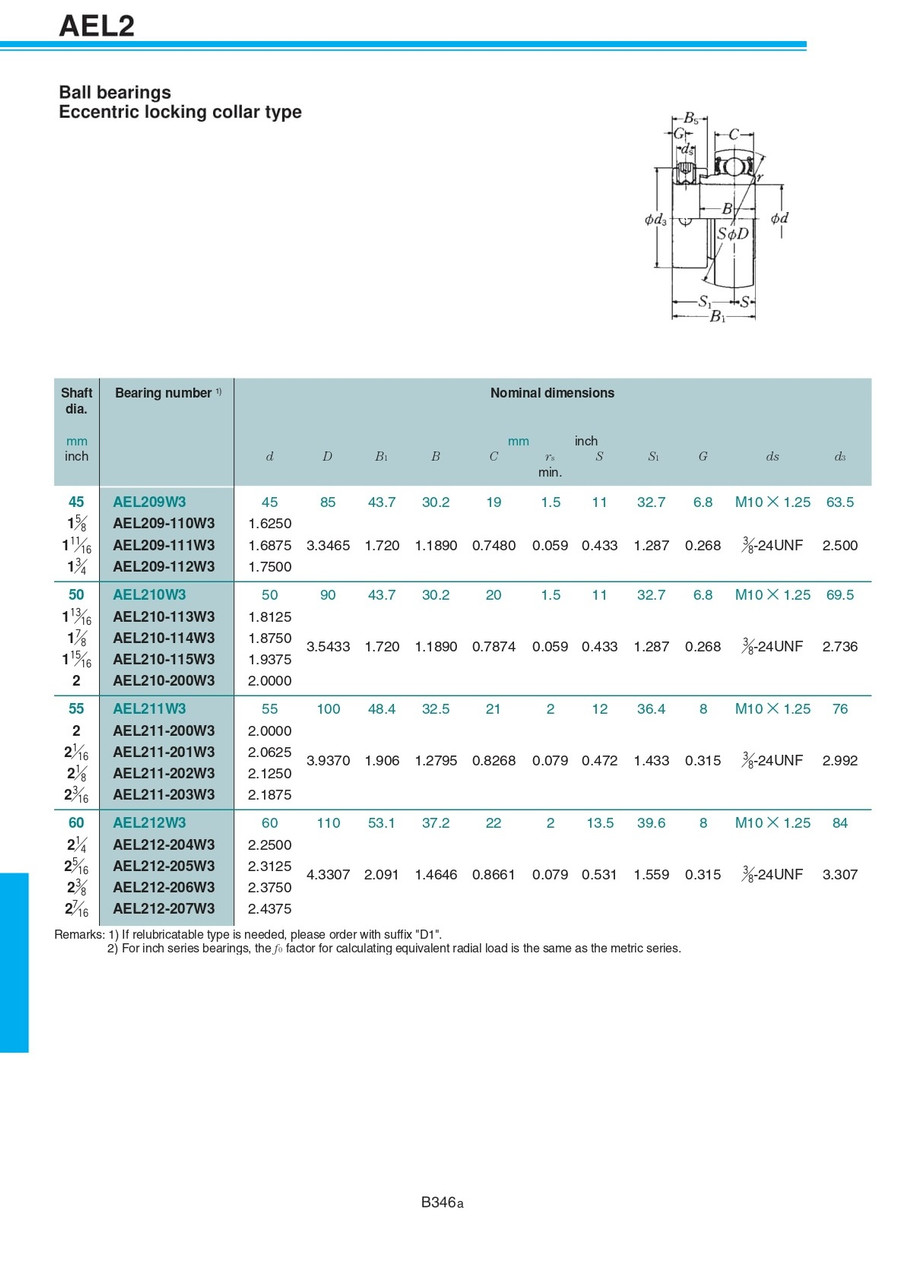

  • Did you know that you can interchange "X" medium duty inserts with "300" series heavy duty designs? Only shaft sizes 13/16 ~ 1-7/16" and metric sizes 25 ~ 35mm (see the first three bearing groupings in attached catalog image) have the exact same outer dimensions as one another, knowing this helps in a pinch


    • adobepdficon.png  NTN Insert Bearing & Block Catalog



    Product Videos

    Custom Field

    Bearing type Deep groove self aligning ball bearing insert
    Outer diameter profile Spherical
    Shaft profile Round
    Material Through hardened steel
    Limiting speed 3100 RPM (grease)
    Seal type Contact
    Seal material Nitrile rubber
    Classification Standard duty
    Locking device Eccentric locking collar
    Greasable Yes
    Radial internal clearance CN
    Static load rating 5200 lbf
    Dynamic load rating 9800 lbf
    Enclosure Double sealed
    Operating temperature range -10°C ~ 100°C (14°F ~ 212°F)
