2.750" x .065" x 108" Round - Steel DOM Drive Shaft Tube ND22-30-12-108

Overview
Reviews

Product Description

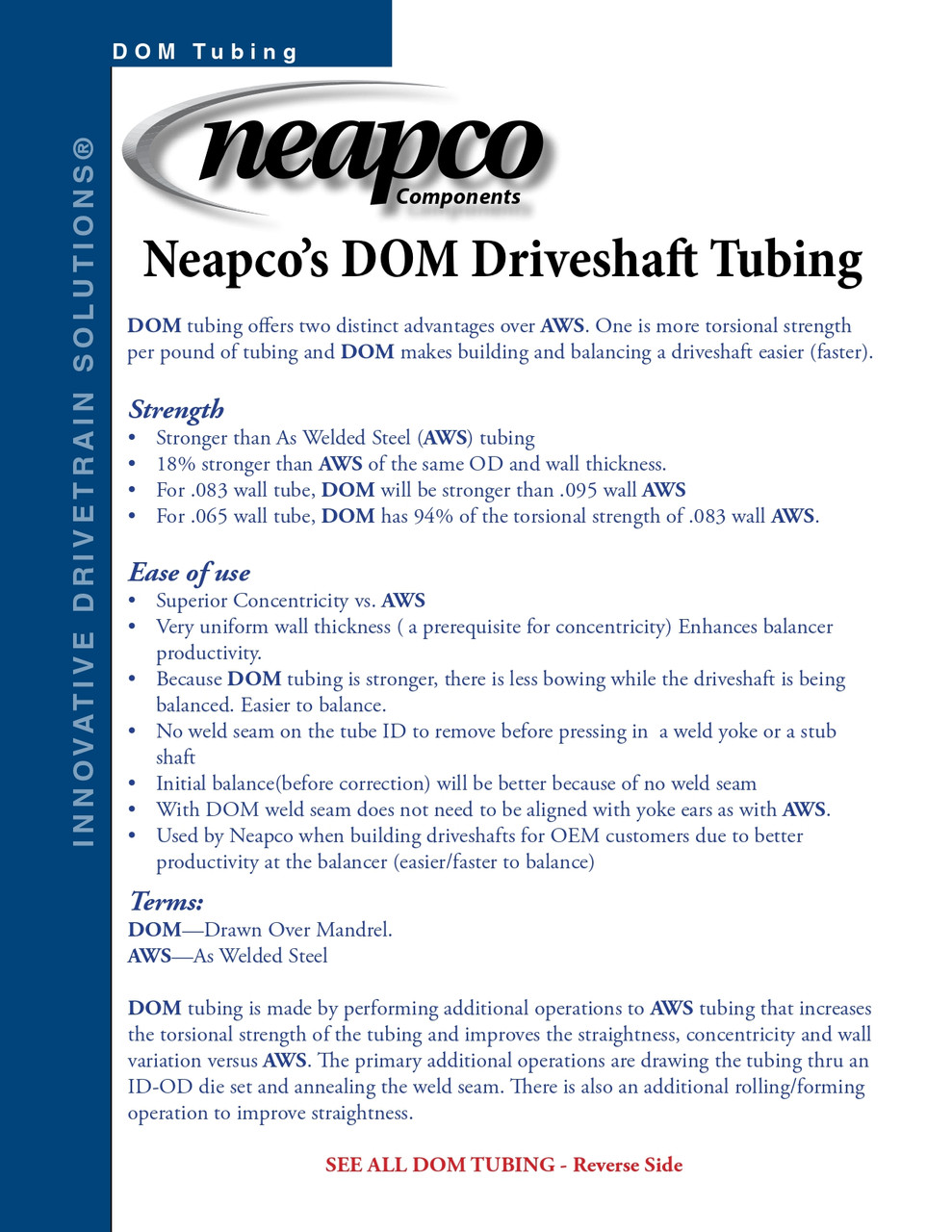

Neapcos "Drawn Over Mandrel" (DOM) driveshaft tubing offers two distinct advantages over AWS - More torsional strength per pound of tubing, as well, DOM makes building and balancing a driveshaft easier and faster.

Stronger than "As Welded Steel" (AWS ) tubing

18% stronger than AWS when the same outer diameter and wall thickness is compared side by side

DOM .083" wall tube will be stronger than .095" wall AWS tube

DOM .065" wall tube has 94% of the torsional strength that AWS .083" wall tube provides

DOM tubing exhibits superior concentricity vs. AWS tubing

Very uniform wall thickness (a prerequisite for concentricity)

Because DOM tubing is stronger, there is less bowing while the driveshaft is being balanced

No weld seam to remove on the tubes inner diameter before pressing in a weld yoke or a stub shaft

Initial balance (before correction) will be better because of no weld seam

With DOM tubing, the weld seam does not need to be aligned with yoke ears as with AWS tubing

DOM tubing is used by Neapco when building driveshafts for OEM customers due to better productivity at the balancer

For an online PTO identification/selection tool, please click this link to access Neapco's online database

Neapco Driveline Components Catalog

Neapco Complete U-joint Catalog

Product Videos

Custom Field

Spicer® equivalent 22-30-12-10800

Country of origin USA
