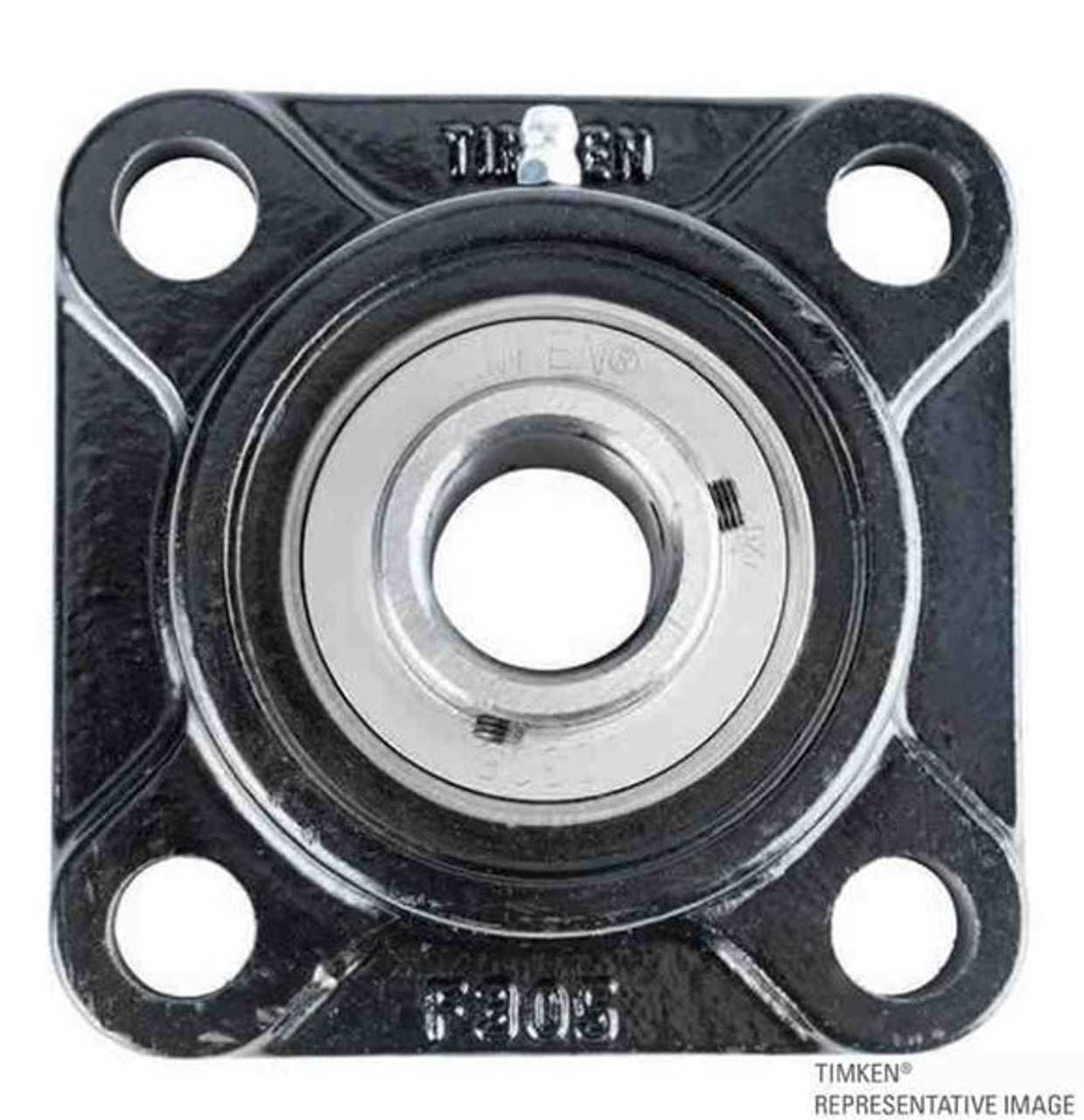

  • 2-1/2" Heavy Duty Set Screw Flange Block Assembly UCF313-40
  • 2-1/2" Heavy Duty Set Screw Flange Block Assembly UCF313-40
  • 2-1/2" Heavy Duty Set Screw Flange Block Assembly UCF313-40
  • 2-1/2" Heavy Duty Set Screw Flange Block Assembly UCF313-40
  • 2-1/2" Heavy Duty Set Screw Flange Block Assembly UCF313-40
  • 2-1/2" Heavy Duty Set Screw Flange Block Assembly UCF313-40
  • 2-1/2" Heavy Duty Set Screw Flange Block Assembly UCF313-40
  • 2-1/2" Heavy Duty Set Screw Flange Block Assembly UCF313-40
  • 2-1/2" Heavy Duty Set Screw Flange Block Assembly UCF313-40
  • 2-1/2" Heavy Duty Set Screw Flange Block Assembly UCF313-40
  • 2-1/2" Heavy Duty Set Screw Flange Block Assembly UCF313-40
  • 2-1/2" Heavy Duty Set Screw Flange Block Assembly UCF313-40
  • 2-1/2" Heavy Duty Set Screw Flange Block Assembly UCF313-40
  • 2-1/2" Heavy Duty Set Screw Flange Block Assembly UCF313-40
  • 2-1/2" Heavy Duty Set Screw Flange Block Assembly UCF313-40
  • 2-1/2" Heavy Duty Set Screw Flange Block Assembly UCF313-40
  • 2-1/2" Heavy Duty Set Screw Flange Block Assembly UCF313-40
  • 2-1/2" Heavy Duty Set Screw Flange Block Assembly UCF313-40

    • 2-1/2" Heavy Duty Set Screw Flange Block Assembly UCF313-40

    Timken

    $373.10
    (No reviews yet) Write a Review
    SKU:
    TIM UCF313-40
    UPC:
    UPC 13992170552
    Weight:
    17.20 LBS
    Bearing Type:
    Deep groove self aligning ball bearing insert
    Shaft profile:
    Round
    Bearing material:
    Hardened steel
    Housing material:
    Cast iron
    Classification:
    Heavy duty
    Locking device:
    Set screws
    Bearing series:
    UC
    Greasable:
    Yes
    Adding to cart… category.add_cart_announcement

    Product Description

  • UCF four-bolt flanged units are suggested for industrial applications where heavy loads are encountered.
  • Each unit comes assembled and ready for mounting, using bolts through the flange.
  • These units use wide inner ring ball bearings with self-aligning spherical outside diameters that compensate for shaft misalignment.
  • Timken UCF series Mounted Bearings feature the Timken set screw locking (UC) bearing insert.
  • Bearing prelubricated and ready for immediate installation.
  • Grease fitting supplied for relubrication.
  • The bonded seal design is well-suited for applications involving wet or dirty environments.
  • Bolt-hole spacing dimensions and shaft center location are interchangeable with competitive units.
  • Housing designed for ease of bearing replacement.

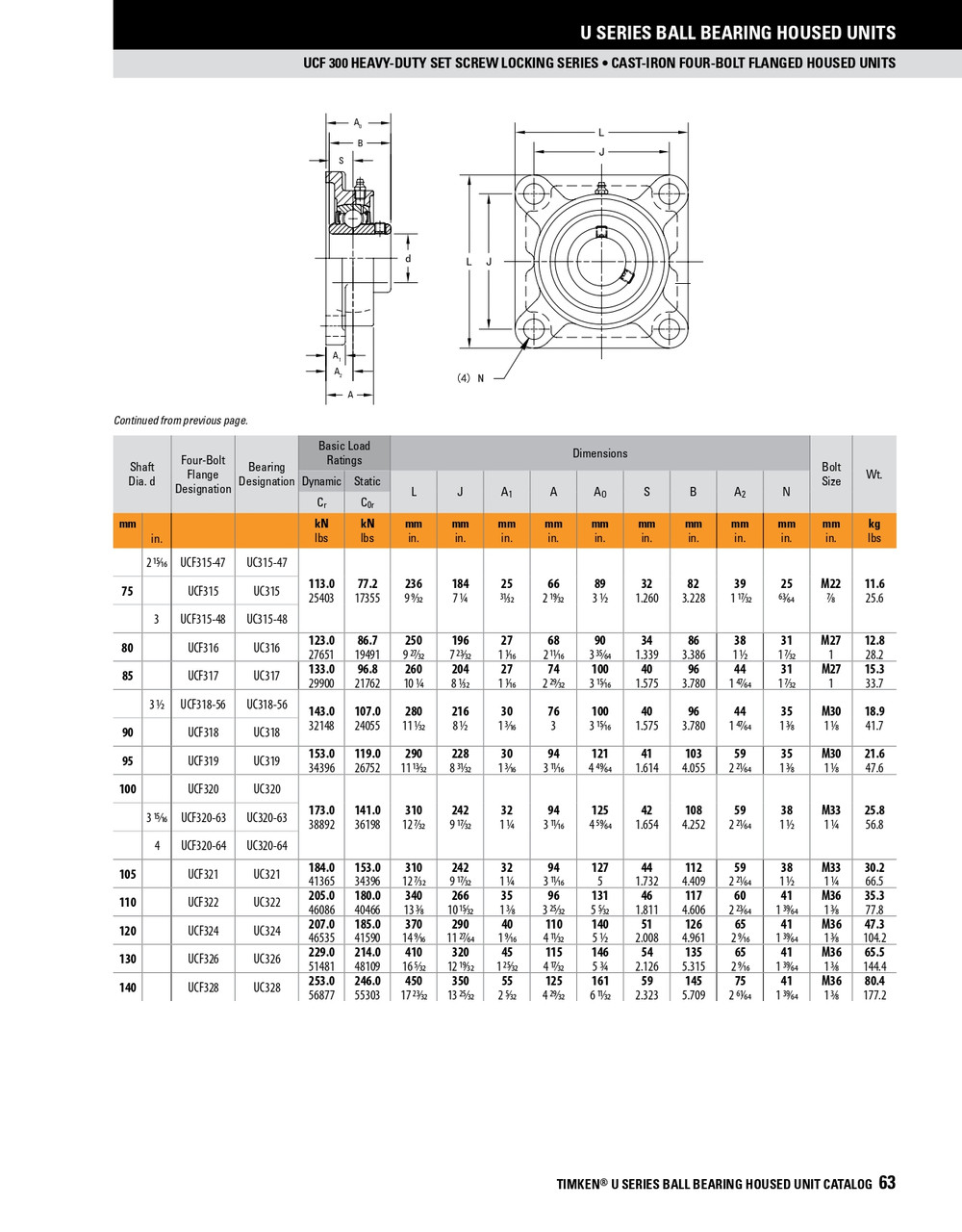

    adobepdficon.png Timken U Series Catalog

    • Product Videos

    Custom Field

    Bearing Type Deep groove self aligning ball bearing insert
    Shaft profile Round
    Bearing material Hardened steel
    Housing material Cast iron
    Classification Heavy duty
    Locking device Set screws
    Bearing series UC
    Greasable Yes
