Product Description
Exclusive Class V+ load chain is the world's strongest gradeAllows use of smaller load chain without compromising safety or performanceAllows for a more compact, lighter weight chain hoist± 10 ~ 15% lighter than L90 hoistsChrome molybdenum load gears for maximum strength and resistance to shockLoad sheave is designed for long wear with uniform pockets for correct chain contactDrop forged hooks are designed to bend slowly to warn of overloadsPositive ratchet, screw and disc are completely enclosed to protect the brake mechanismNon-asbestos wet friction brake discs will not slip even when oil is presentElectrostatic powder painted before assembly to protect against rust and corrosionCapacity unaffected by temperatures to -40ºC with suitable winter lubricationTested to 150% of rated capacityMeets OSHA and ANSI B30.16 standards (certificate included)Made in Japan*NOTE: Custom lifts are available in any length desired; ask us for details on getting custom cut lengthsThe Surewerx group is parent too a collection of many prestigious and well known product lines sold across North America. Jet is only one product name under this umbrella of many brand names. Other product lines such as Strongarm, Sellstrom, and Startech Lighting are already available for online purchase on our webstore. Please note that there are more available product lines for sale by Surewerx that we have not yet created or made available online. To obtain information on these additional product lines, please access Surewerx's own website by clicking on the following hyperlink: Peakworks Rigging, Ranpro Footwear, Jackson Welding & Pioneer Safety. If something interests you, please feel free to email us for a personal quotation in the meantime.
Model Number
Model Number FA-1S
Product weight 110 lbs
Rated lifting capacity 1 Ton
Rated lifting capacity 2200 lbs
Number of falls 1
Lift speed 24.2 fpm
Standard lift* 15'
Standard chain bucket #2
Power phase 3 Phase
Voltage 575V
Motor 2.1 HP
Duty rating in minutes 30
Power cable length 16'
Amps 5.8A

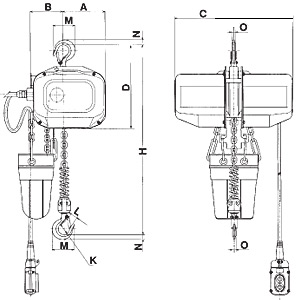

A 6.69"
B 5.04"
C 9.41"
D 13.72"
H 22.44"
K 1.69"
L 1.30"
M 4.21"
N 1.22"
O .91"
