185-6 Series Lovejoy® Overload Disc Pack Kit 185-6-OVERLOAD DISC PACK KIT

Overview
Reviews

Product Description

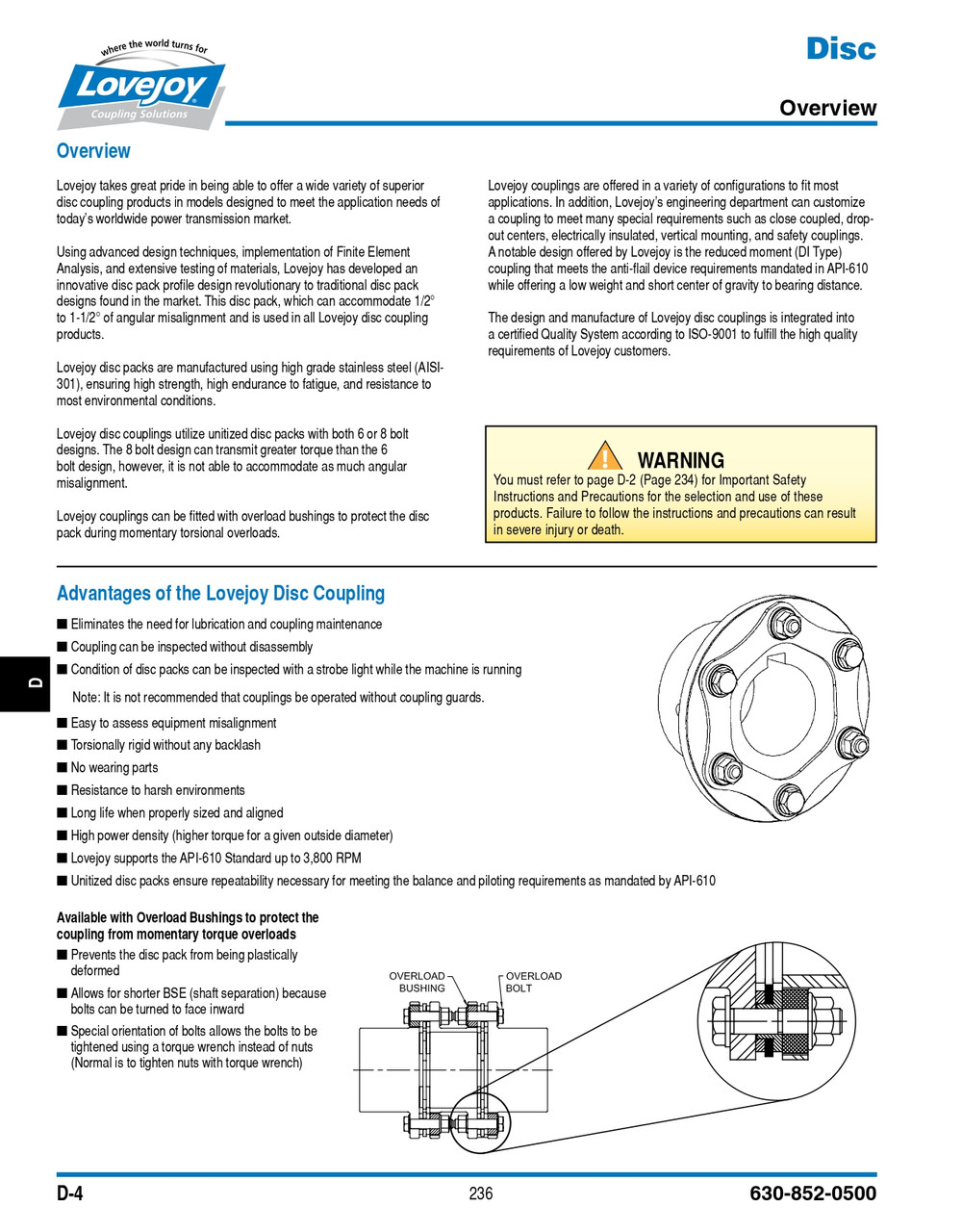

Overload Bushing Disc Packs can protected disc packs from momentary torque overloads.

Using advanced design techniques, implementation of finite element analysis, and extensive testing of materials, Lovejoy has developed an innovative disc pack profile design revolutionary to traditional disc pack designs found in the market.

This disc pack can accommodate 1/2° to 1-1/2° of angular misalignment, and is used in all Lovejoy disc coupling products.

Lovejoy disc packs are manufactured using high grade stainless steel (AISI-301), ensuring high strength, high endurance to fatigue, and resistance to most environmental conditions.

Lovejoy disc couplings utilize unitized disc packs with 4, 6 or 8 bolt designs.

While the 8 bolt design can transmit greater torque than the 6 or 4 bolt design, it is not able to accommodate as much angular misalignment.

Timkens Quick Flex® Elastomeric Coupling Configurator helps you quickly size Quick Flex coupling solutions for common applications.

By entering motor power (HP or kW), speed (rpm), and service factors, the configurator presents available Quick Flex coupling options, supporting faster selection and quoting.

Access the Quick Flex® Coupling Configurator to speed up your next coupling selection.

Timken Lovejoy Master Catalog

Product Videos

Custom Field

Series 185-6

Material Steel/stainless steel

Coupling type Disc coupler
