    Timken

    $0.00
    (No reviews yet) Write a Review
    SKU:
    TIM RA 17
    Weight:
    0.45 LBS
    Bearing Type:
    Deep groove ball bearing
    Shaft profile:
    Round
    Bearing material:
    Hardened steel
    Housing material:
    Pressed steel
    Outer diameter profile:
    Spherical
    Locking device:
    Eccentric locking collar

    Product Description

  • The RA flangette unit is similar to Timken Fafnir RR flangette unit
  • The unit consists of two interchangeable, pressed-steel, zinc plated flanges that house a standard ball bearing
  • The unit incorporates an extended inner-ring bearing with a self locking collar and spherical seat in the cartridge, providing initial self-alignment
  • The unit is equipped with an RA-RRB extended inner ring ball bearing
  • The units are non-relubricatable

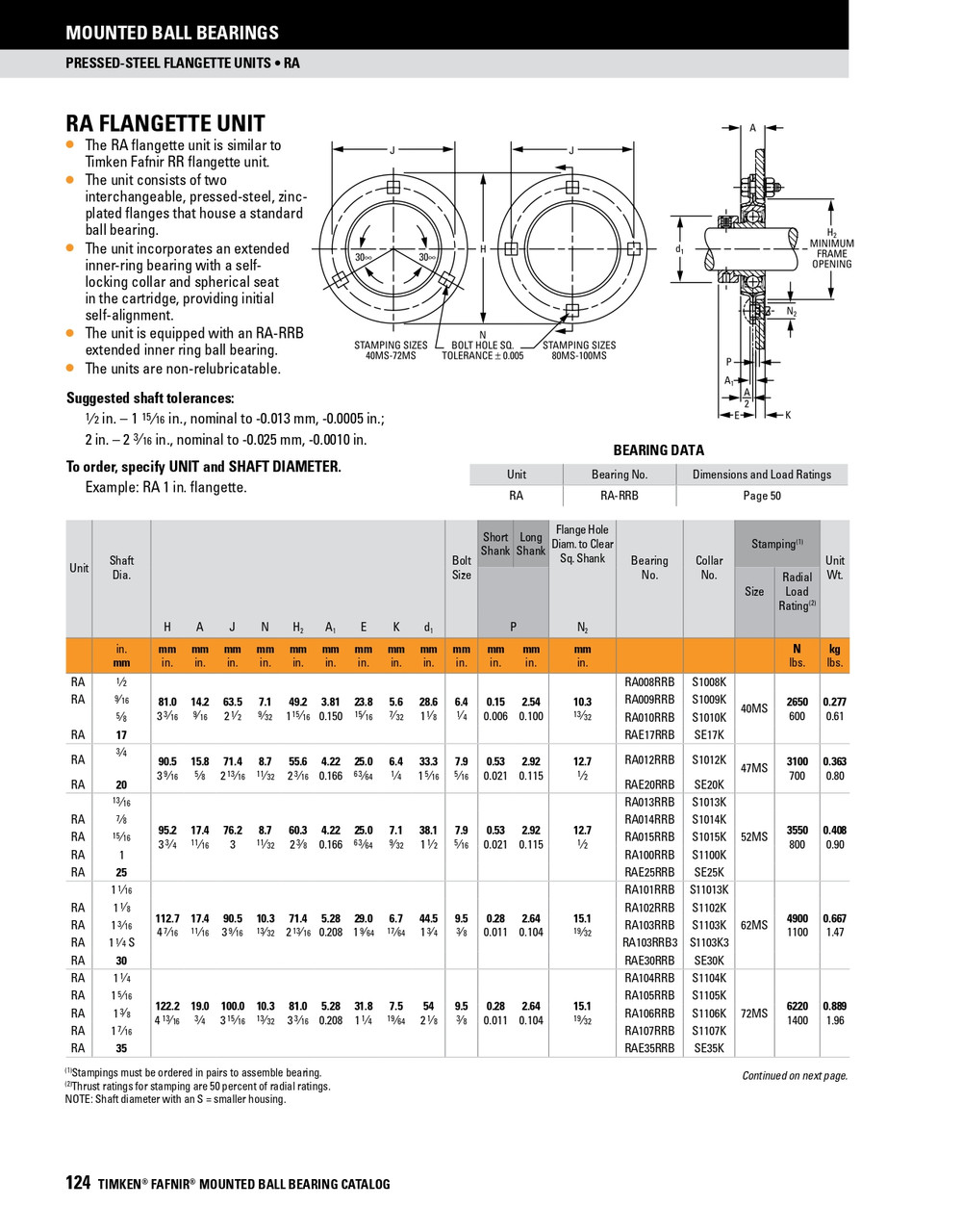

    adobepdficon.png Timken Fafnir Mounted Ball Bearing Catalog

    adobepdficon.png Timken Fafnir Competitive Interchange Chart

    • Product Videos

    Custom Field

    Bearing Type Deep groove ball bearing
    Shaft profile Round
    Bearing material Hardened steel
    Housing material Pressed steel
    Outer diameter profile Spherical
    Locking device Eccentric locking collar
