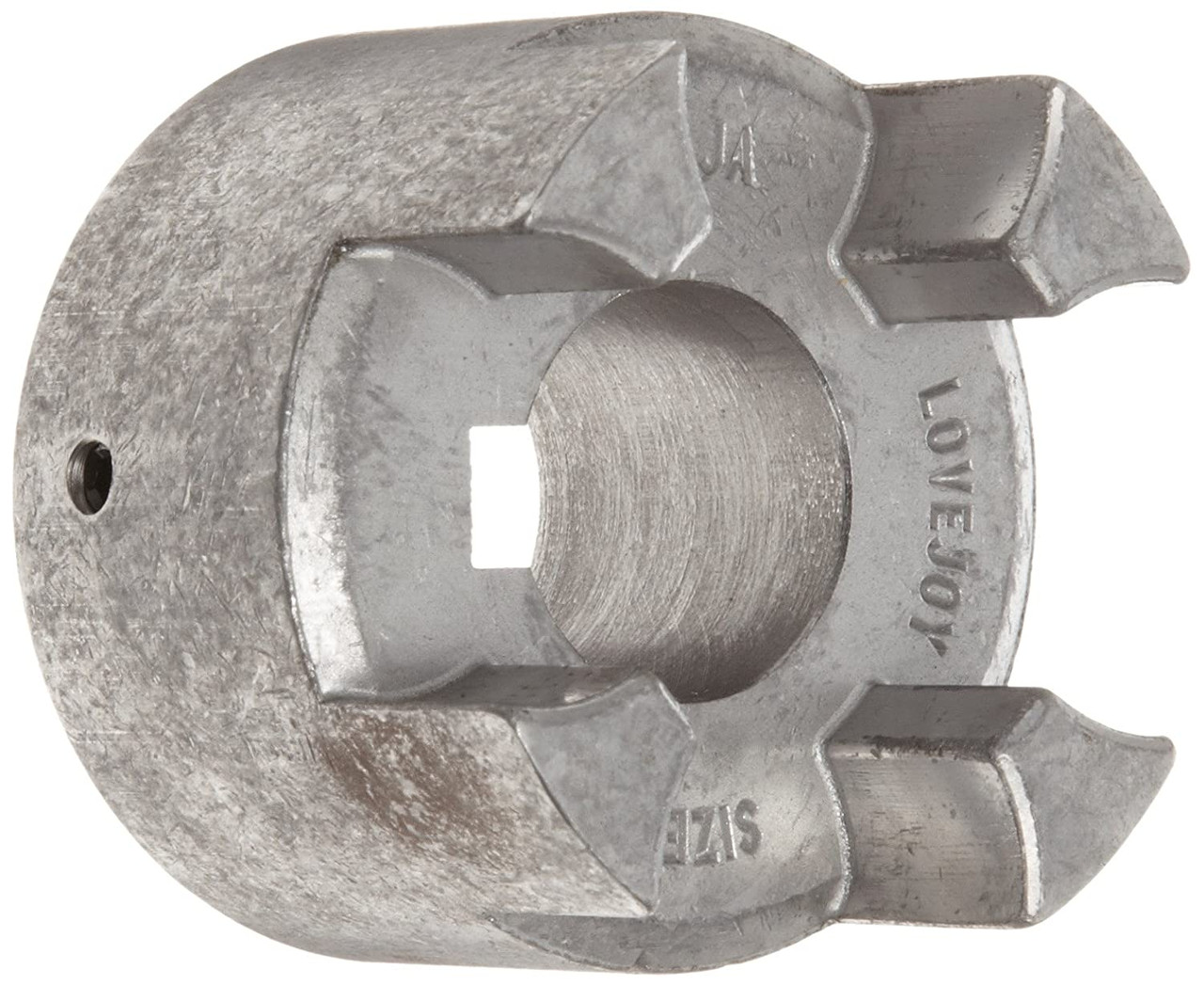

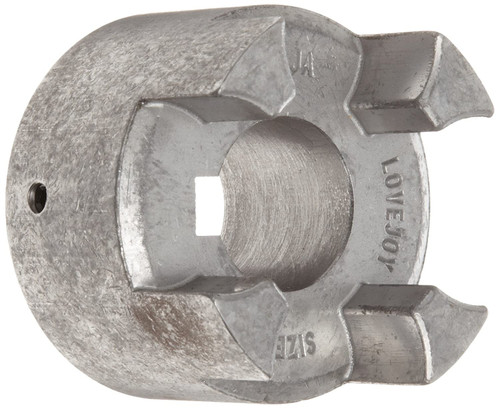

  • 15mm Shaft Lovejoy® Type CJ24/32A Curved Jaw Style Coupling Half CJ24A-HUB-AL-15MMH7-5X2.3MMKW
  • 15mm Shaft Lovejoy® Type CJ24/32A Curved Jaw Style Coupling Half CJ24A-HUB-AL-15MMH7-5X2.3MMKW
  • 15mm Shaft Lovejoy® Type CJ24/32A Curved Jaw Style Coupling Half CJ24A-HUB-AL-15MMH7-5X2.3MMKW
  • 15mm Shaft Lovejoy® Type CJ24/32A Curved Jaw Style Coupling Half CJ24A-HUB-AL-15MMH7-5X2.3MMKW
  • 15mm Shaft Lovejoy® Type CJ24/32A Curved Jaw Style Coupling Half CJ24A-HUB-AL-15MMH7-5X2.3MMKW
  • 15mm Shaft Lovejoy® Type CJ24/32A Curved Jaw Style Coupling Half CJ24A-HUB-AL-15MMH7-5X2.3MMKW
  • 15mm Shaft Lovejoy® Type CJ24/32A Curved Jaw Style Coupling Half CJ24A-HUB-AL-15MMH7-5X2.3MMKW
  • 15mm Shaft Lovejoy® Type CJ24/32A Curved Jaw Style Coupling Half CJ24A-HUB-AL-15MMH7-5X2.3MMKW
  • 15mm Shaft Lovejoy® Type CJ24/32A Curved Jaw Style Coupling Half CJ24A-HUB-AL-15MMH7-5X2.3MMKW
  • 15mm Shaft Lovejoy® Type CJ24/32A Curved Jaw Style Coupling Half CJ24A-HUB-AL-15MMH7-5X2.3MMKW
  • 15mm Shaft Lovejoy® Type CJ24/32A Curved Jaw Style Coupling Half CJ24A-HUB-AL-15MMH7-5X2.3MMKW
  • 15mm Shaft Lovejoy® Type CJ24/32A Curved Jaw Style Coupling Half CJ24A-HUB-AL-15MMH7-5X2.3MMKW

    • 15mm Shaft Lovejoy® Type CJ24/32A Curved Jaw Style Coupling Half CJ24A-HUB-AL-15MMH7-5X2.3MMKW

    Timken

    $259.64
    (No reviews yet) Write a Review
    SKU:
    TIM CJ24A-HUB-AL-15MMH7-5X2.3MMKW
    UPC:
    UPC 0685144719621
    Weight:
    0.26 LBS
    Series:
    CJ24/32A
    Shaft diameter:
    15mm
    Material:
    Aluminum
    Keyway size:
    5 x 2.3mm
    Coupling type:
    Curved jaw coupler
    Adding to cart… category.add_cart_announcement

    Product Description

  • A complete CJ Series coupling is comprised of two standard CJ hubs and one CJ spider.
  • Four types of spiders are available for the CJ Series.
  • Three piece design that is easy to assemble
  • The curved jaw design incorporates both radial and axial curvature (crowning) to the elastomer (spider)
  • Hubs are offered in sintered iron, steel, aluminum, cast iron and nodular iron materials
  • Three different urethane elastomers available
  • No metal to metal contact and no lubrication required
  • Fail safe design due to the jaw in compression design (continues to function after the elastomer fails)
  • The CJ series covers a torque range of 67 to 247,800 in-lbs

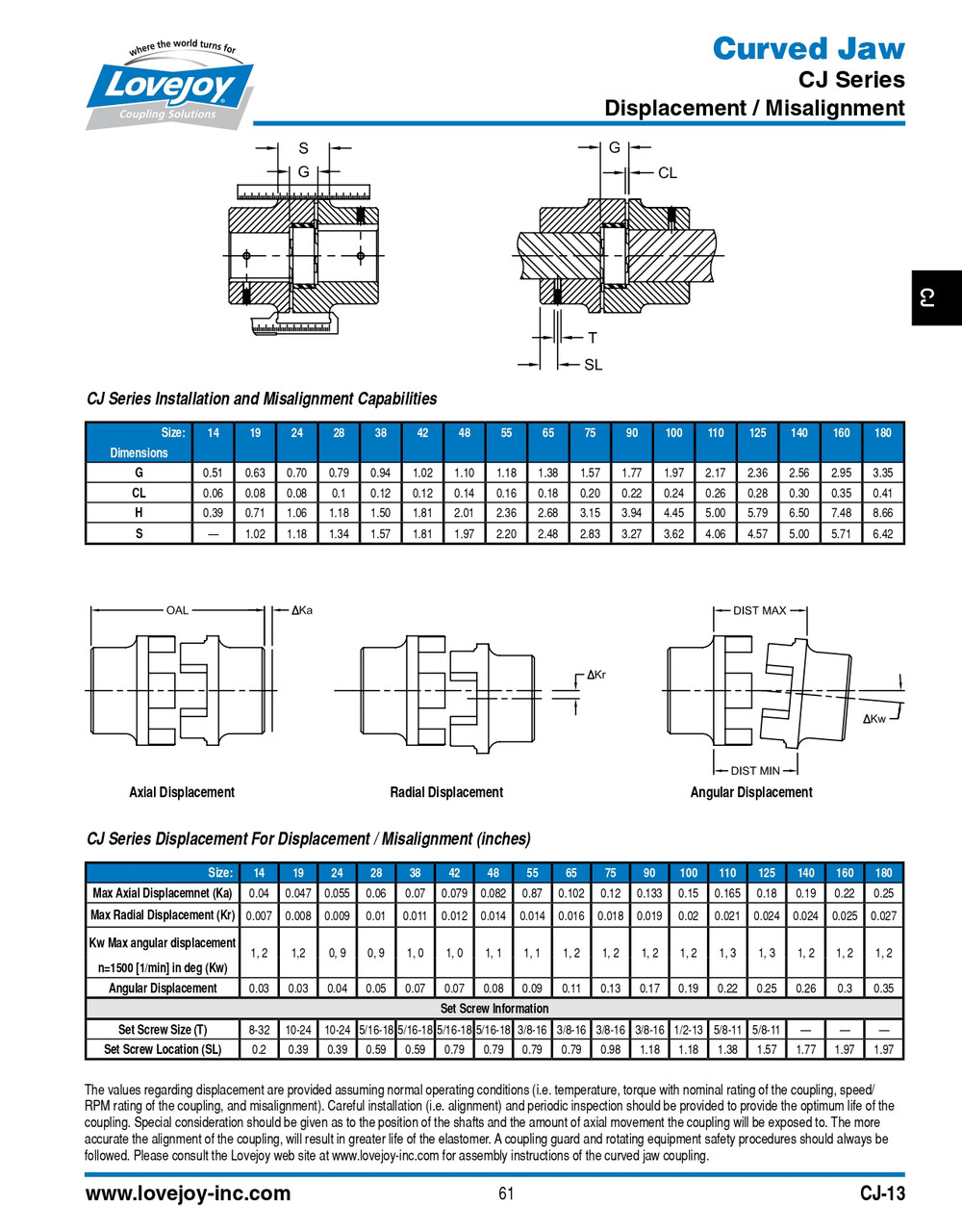

    adobepdficon.png Timken Lovejoy Master Catalog

    adobepdficon.png Curved Jaw Coupling Installation Guide

    • Product Videos

    Custom Field

    Series CJ24/32A
    Shaft diameter 15mm
    Material Aluminum
    Keyway size 5 x 2.3mm
    Coupling type Curved jaw coupler
