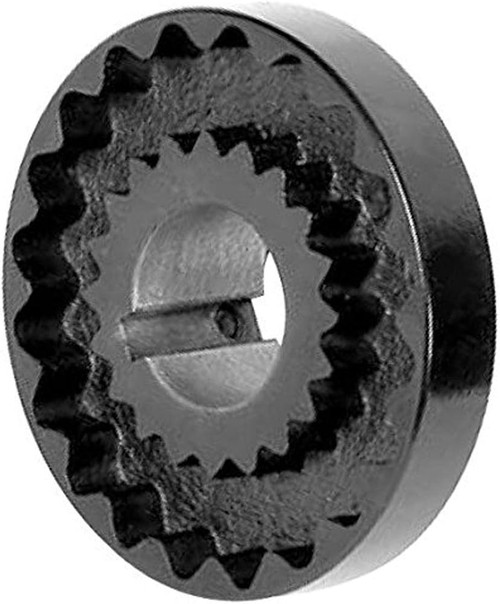

#14 x 2" Shaft Sure-Flex® Coupling Half 14S-FLNG-2"-RSB-NKW-2SS90

Overview
Reviews

Product Description

Lovejoy offers flexible sleeves for S-Flex Endurance couplings in three designs: one-piece solid, one-piece split, and two-piece with retaining ring

The one-piece split design provides solutions for applications with unique requirements where small shaft separations inhibit the installation of a one-piece solid sleeve

Pre-molded teeth along the diameter of the sleeve engage with teeth of the coupling flanges

No clamps or screws are needed to connect the flanges with the flexible sleeve which securely lock together under torque for smooth transmission of power

Torque is transmitted through shear loading of the sleeve

All three sleeve materials are highly elastic which permits the S-Flex coupling to protect connected equipment from harmful shock loading, vibration, and shaft misalignment

These sleeves feature a two-piece design with retaining ring. The E Type is molded in EPDM rubber and the N Type is molded in Neoprene. The two- piece design is ideal for applications where there is difficulty in separating the shafts of the driver and driven.

Neoprene provides very good performance characteristics for most applications and offers a very good resistance to chemical and oil conditions. Color is black with a green dot.

Timkens Quick Flex® Elastomeric Coupling Configurator helps you quickly size Quick Flex coupling solutions for common applications.

By entering motor power (HP or kW), speed (rpm), and service factors, the configurator presents available Quick Flex coupling options, supporting faster selection and quoting.

Access the Quick Flex® Coupling Configurator to speed up your next coupling selection.

Timken Lovejoy Master Catalog

S-Flex Coupling Installation Guide

Product Videos

Custom Field

Shaft diameter 2"

Series #14

Material Cast iron

Keyway size No keyway

Coupler type Sure-flex coupler
