115mm Shaft Lovejoy® Series F-4 Exposed Bolt Rigid Flanged Gear Coupling Half F-4E-HUB RGD-115MM-32X11MMKW

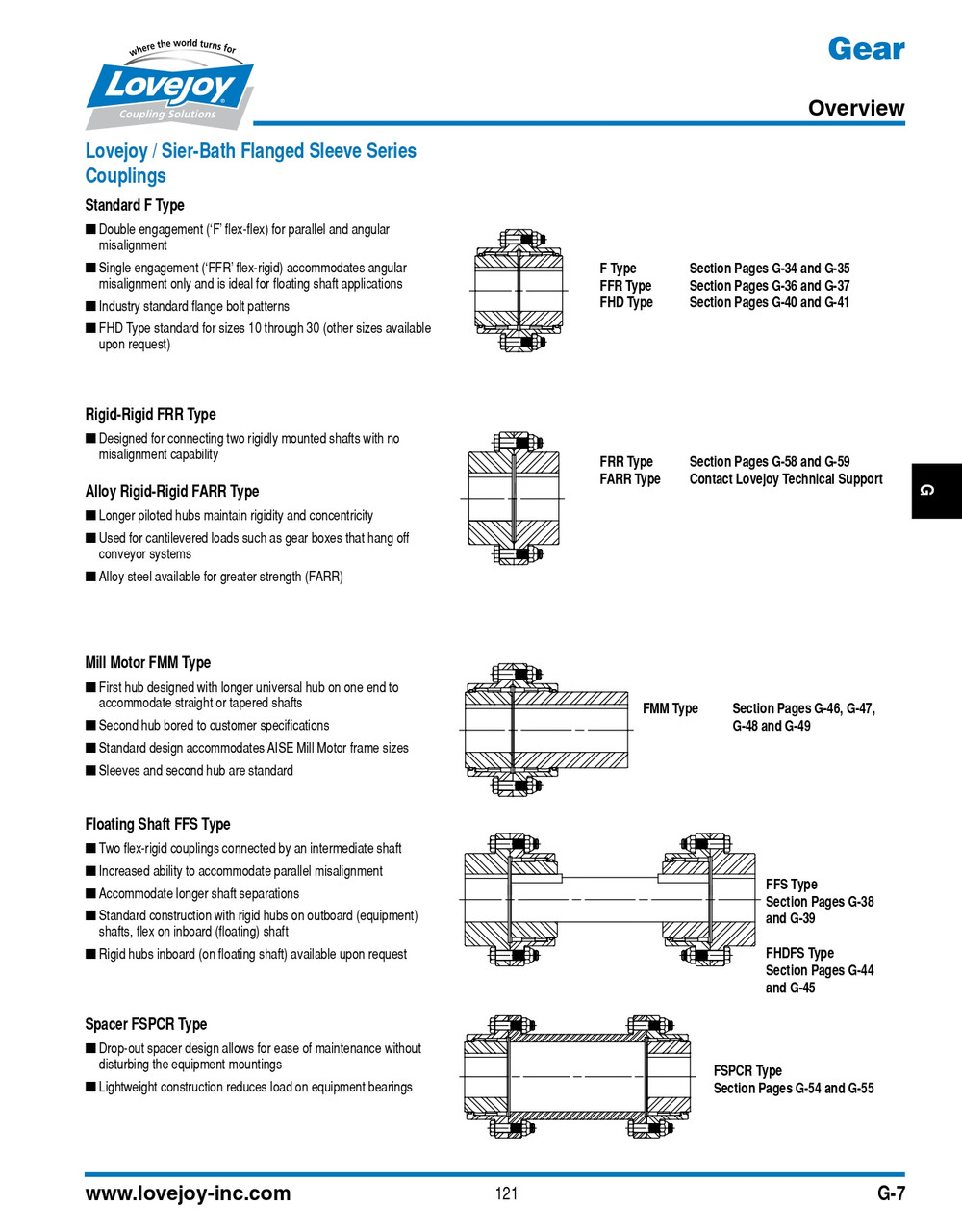

F type rigid hubs, solid & rough stock bore - exposed and shrouded bolt designs

For use with FFR (flex-rigid) or FRR (rigid-rigid) couplings.

The FFR Type coupling consists of one flex hub, one rigid hub, one sleeve, and one accessory kit.

Exposed bolts (E) are the standard design for this coupling, though shrouded bolt (S) designs are available upon request through size 5.5.

The FFR Type has a max angular misalignment of 1.5 degrees (1.5 degrees per gear mesh).

The FRR Type coupling consists of two rigid hubs and one accessory kit.

Exposed bolts (E) are also the standard design for this coupling, though shrouded bolt (S) designs are available upon request through size 5.5.

The FRR Type coupling does not accommodate for any angular misalignment.

For larger torques, consider the FHD type gear coupling in sizes 10 through 30.

Timken Lovejoy Master Catalog

F & FA Flange Gear Coupling Installation Guide

Series F-4

Shaft diameter 115mm

Keyway size 32 x 11mm

Coupling type Gear coupler
