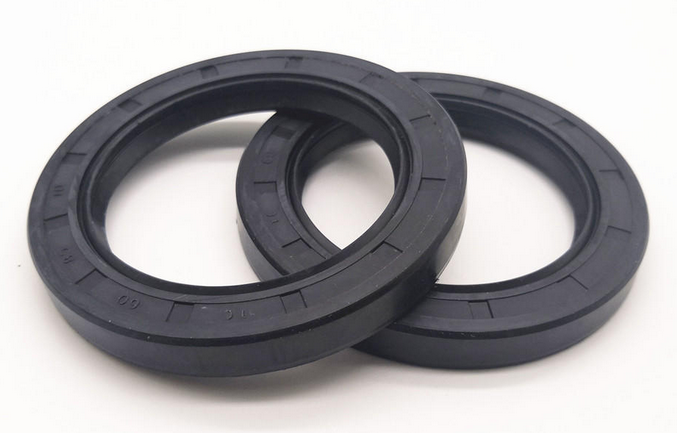

Product Description
Double lip, spring-loaded design
Rubber cover over metallic core for an excellent combination of sealing ability and corrosion resistance
The rubber elastomer outer covering tolerates thermal expansion as well as roughness in the housing bore
Because of the rubberized covering on the seal, there will be no fretting/galvanic corrosion of the metal bore that the seal is pressed into
This is a two-way seal, which means that it can retain lubricant and exclude contaminants simultaneouslyThe nitrile seal offers good resistance to standard oils, greases, and normal fuelsThis material also provides good abrasion resistanceFollow this link for access to Timken's interactive, multi-vehicle, bearing & seal application database.
Follow this link to access Timken's National oil seal & competitor's interchange.

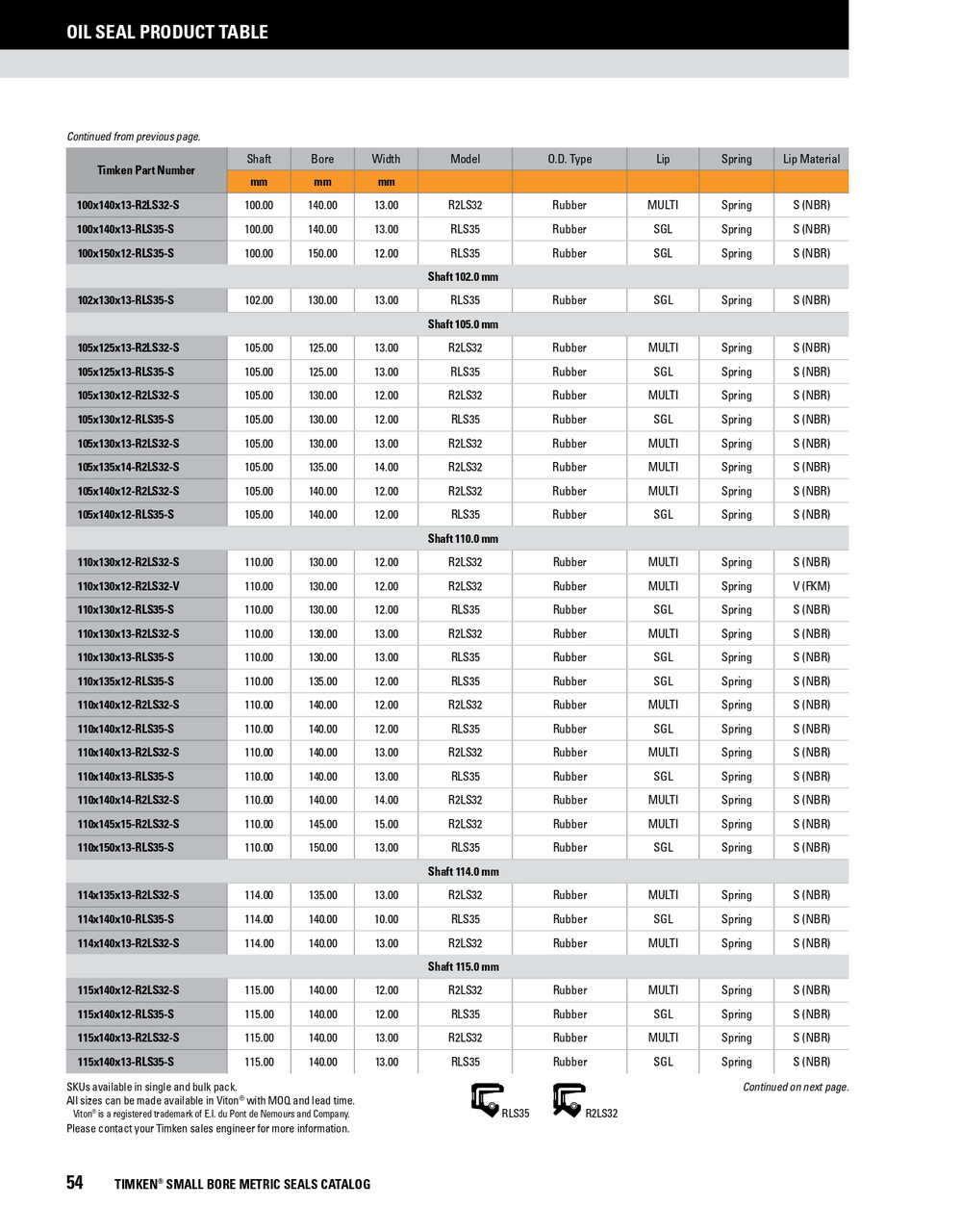

Timken Metric Oil Seal Catalog
National 7707 Inch Oil Seal Catalog & Interchange
Shaft size
Shaft size 105mm
Seal outer diameter 130mm
Seal width 12mm
Seal type & style R2LS35 (double lip)
Lip material S (Nitrile NBR)
Hardness/Durometer 70
Spring retained Yes
Case material Rubberized metal
Maximum surface speed 12 m/s (2362 fpm)
Maximum pressure 0.3kg/cm² (4.267 psi)
Temperature range -20ºC ~ 120ºC (-4ºF ~ 248ºF)
Denoted measurement Metric
