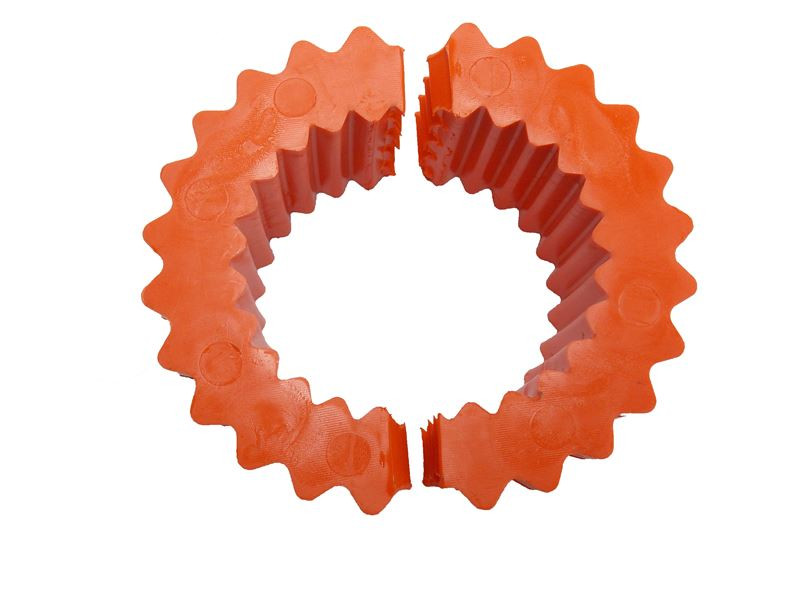

  • #10 Sure-Flex® Split Hytrel Insert 10HS-SLEEVE
  • #10 Sure-Flex® Split Hytrel Insert 10HS-SLEEVE
  • #10 Sure-Flex® Split Hytrel Insert 10HS-SLEEVE
  • #10 Sure-Flex® Split Hytrel Insert 10HS-SLEEVE
  • #10 Sure-Flex® Split Hytrel Insert 10HS-SLEEVE
  • #10 Sure-Flex® Split Hytrel Insert 10HS-SLEEVE

    • #10 Sure-Flex® Split Hytrel Insert 10HS-SLEEVE

    Timken

    $436.08
    (No reviews yet) Write a Review
    SKU:
    TIM 10HS-SLEEVE
    UPC:
    UPC 0685144354556
    Weight:
    3.00 LBS
    Series:
    #10
    Material:
    Hytrel
    Coupler type:
    Sure-flex coupler
    Adding to cart… category.add_cart_announcement

    Product Description

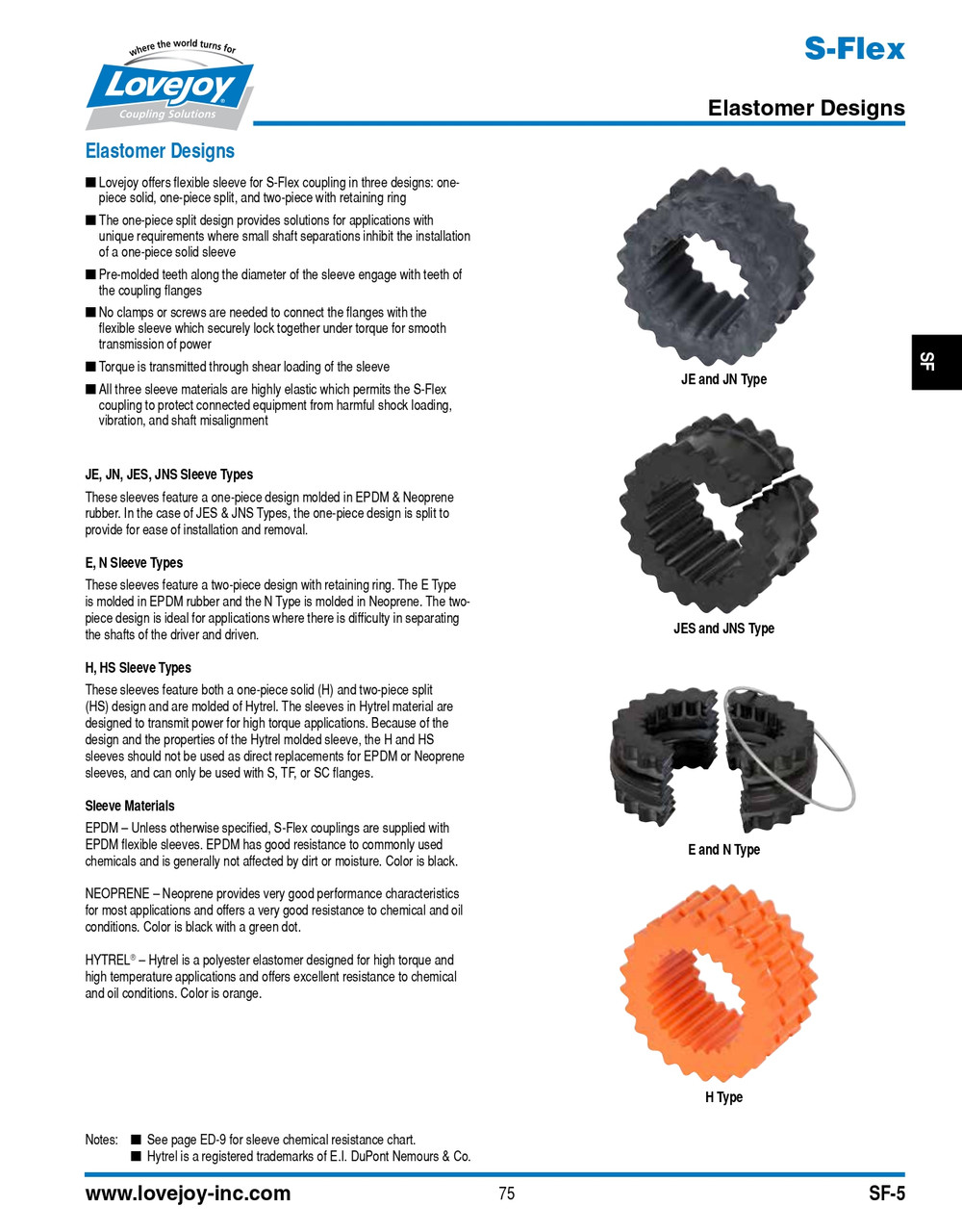

  • Lovejoy offers flexible sleeves for S-Flex Endurance couplings in three designs: one-piece solid, one-piece split, and two-piece with retaining ring
  • The one-piece split design provides solutions for applications with unique requirements where small shaft separations inhibit the installation of a one-piece solid sleeve
  • Pre-molded teeth along the diameter of the sleeve engage with teeth of the coupling flanges
  • No clamps or screws are needed to connect the flanges with the flexible sleeve which securely lock together under torque for smooth transmission of power
  • Torque is transmitted through shear loading of the sleeve
  • All three sleeve materials are highly elastic which permits the S-Flex coupling to protect connected equipment from harmful shock loading, vibration, and shaft misalignment
  • These sleeves feature both a one-piece solid (H) and two-piece split (HS) design and are molded of Hytrel. The sleeves in Hytrel material are designed to transmit power for high torque applications. Because of the design and the properties of the Hytrel molded sleeve, the H and HS sleeves should not be used as direct replacements for EPDM or Neoprene sleeves, and can only be used with S, TF, or SC flanges.
  • Operating Hytrel within a high service factor application is not recommended.

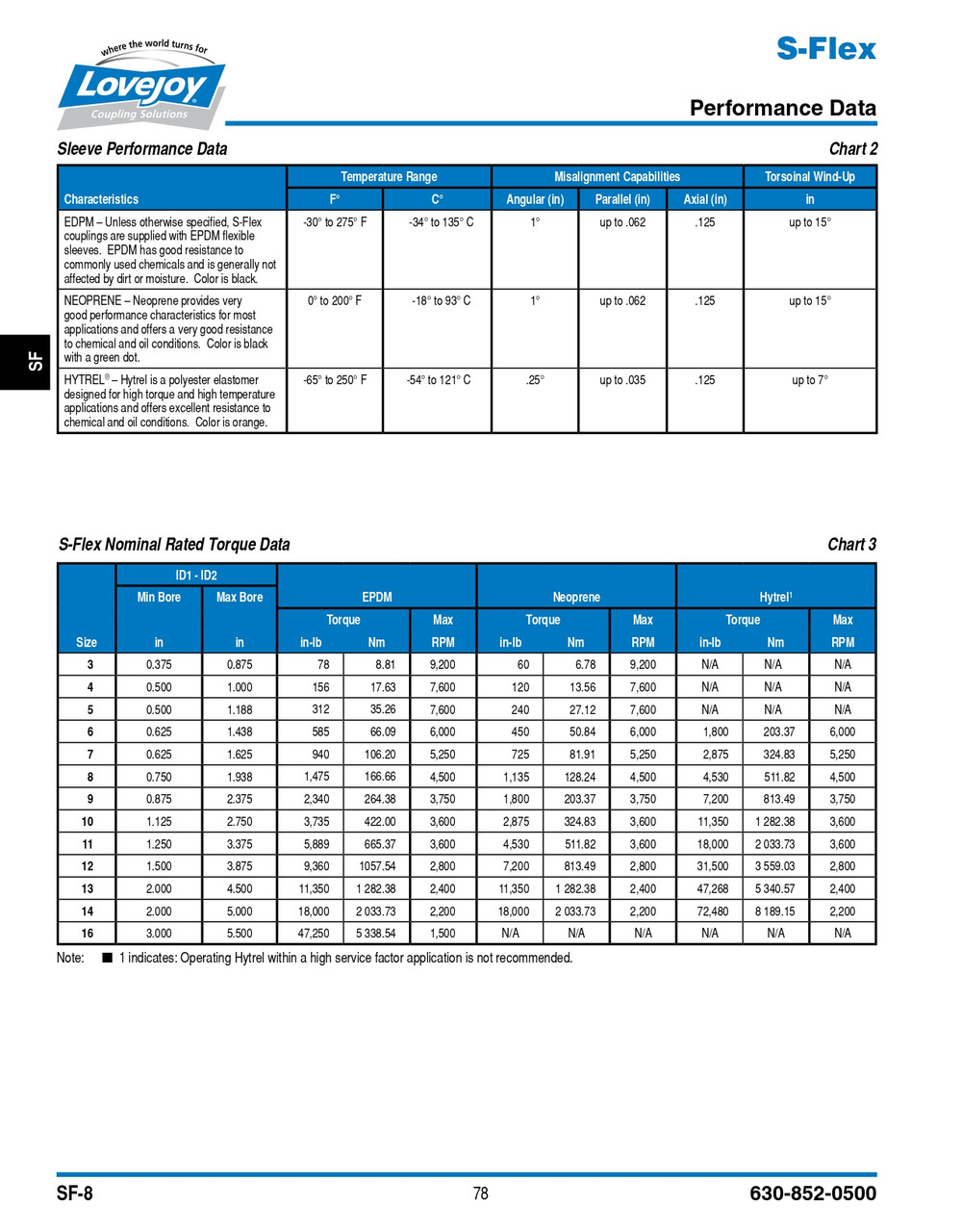

  • H and HS Type sleeves are designed for high torque applications, transmitting about 4 times as much power as an equivalent EPDM or Neoprene sleeve.
  • Hytrel sleeves can be used only with S or SC flanges and can not be used with J or B flanges.
  • Hytrel sleeves should not be used as direct replacements for EPDM or Neoprene applications.

    adobepdficon.png Timken Lovejoy Master Catalog

    adobepdficon.png S-Flex Coupling Installation Guide

    • Product Videos

    Custom Field

    Series #10
    Material Hytrel
    Coupler type Sure-flex coupler
