Product Description

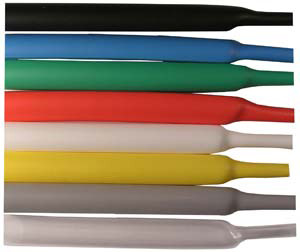

Flexible, flame retardant, general purpose, polyolefin heat shrinkable tubing is designed to provide superior mechanical, thermal & fluid performanceIt is used extensively in military & industrial applications for lightweight harness jackets, insulation, colour coding & identification of electrical connections and wire bundlesPlease be aware when referencing the supplied Pico catalog that certain features may have been changed or upgraded (i.e. Temperature rating) on currently shown product since its original publication. In addition, there are also new items now available from Pico that were not included in this catalog when it went to print. You will notice these newer items by the lack of an attached catalog page in the image carousel

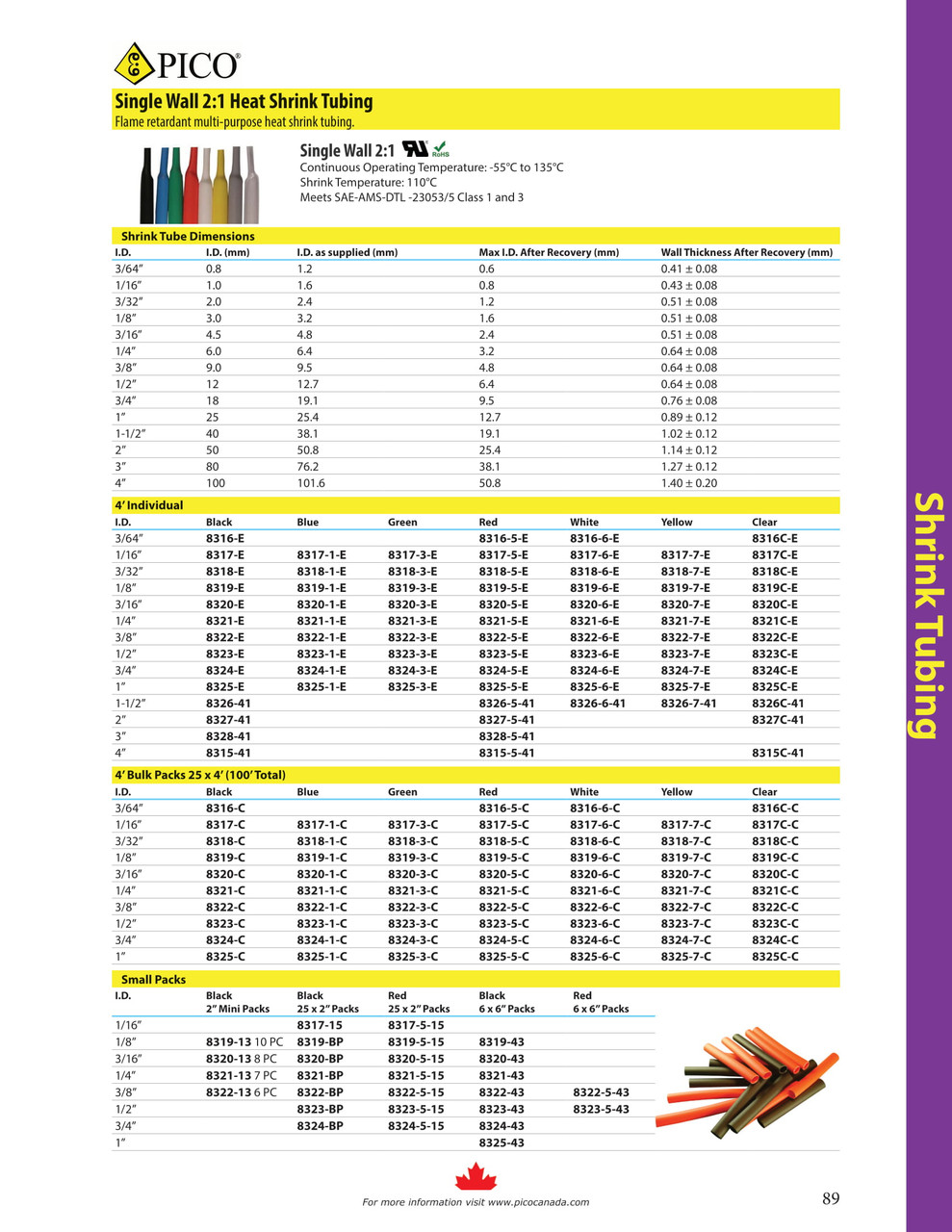

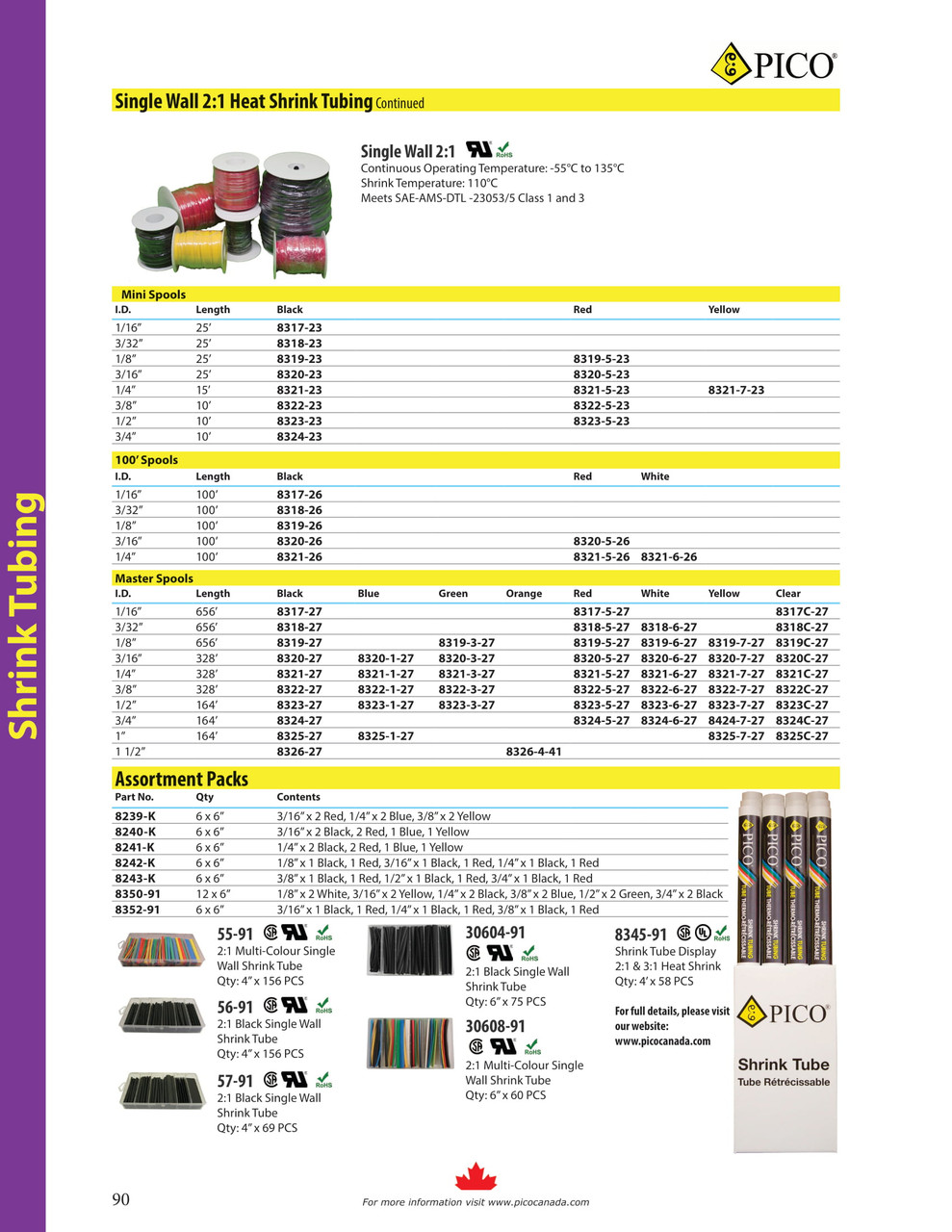

Pico 2018 General Catalog
Package quantity
Package quantity 164' Spool
Shrink ratio 2:1
Shrink temperature 90°C
Temperature rating -55°C ~ 135°C
Shrink material Polyolefin
Certification SAE AMS-DTL-23053/5, Class 1 & 231
