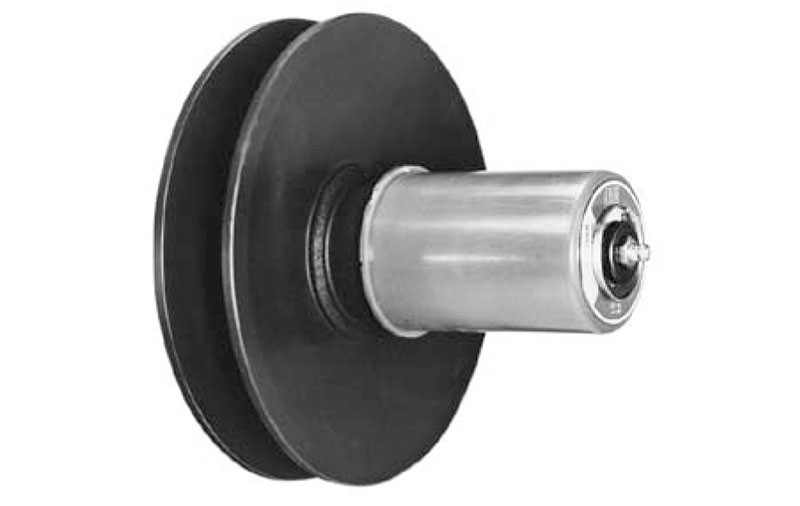

  • 1" Shaft Lovejoy® WB Series Model 301E Spring Loaded Driver Pulley 301E-1"-PULLEY
  • 1" Shaft Lovejoy® WB Series Model 301E Spring Loaded Driver Pulley 301E-1"-PULLEY
  • 1" Shaft Lovejoy® WB Series Model 301E Spring Loaded Driver Pulley 301E-1"-PULLEY
  • 1" Shaft Lovejoy® WB Series Model 301E Spring Loaded Driver Pulley 301E-1"-PULLEY
  • 1" Shaft Lovejoy® WB Series Model 301E Spring Loaded Driver Pulley 301E-1"-PULLEY

    • 1" Shaft Lovejoy® WB Series Model 301E Spring Loaded Driver Pulley 301E-1"-PULLEY

    Timken

    $2,153.88
    (No reviews yet) Write a Review
    SKU:
    TIM 301E-1"-PULLEY
    UPC:
    UPC 0685144187673
    Weight:
    12.00 LBS
    Series:
    301E
    Shaft diameter:
    1"
    Keyway size:
    1/4 x 1/8"
    Outer diameter:
    7.50"
    Belt size:
    1922V
    Type:
    Variable speed drive
    Adding to cart… category.add_cart_announcement

    Product Description

  • Pulleys in the WB series use wide variable speed belts for the most efficient transmission of torque through the widest possible speed range. These pulleys are two-side moveable for the best possible belt alignment when used with a grooved companion sheave. However, the location of the belt centerline close to the bore end of the pulley reduces the overhung load on motor bearings and seals. Precision-calibrated springs maintain correct pressure, keeping the belt properly tensioned and minimizing belt slip.
  • WB pulleys can be used on both adjustable and fixed center drives. They offer maximum service when lubricated through a convenient grease fitting and occasionally run through the speed range.

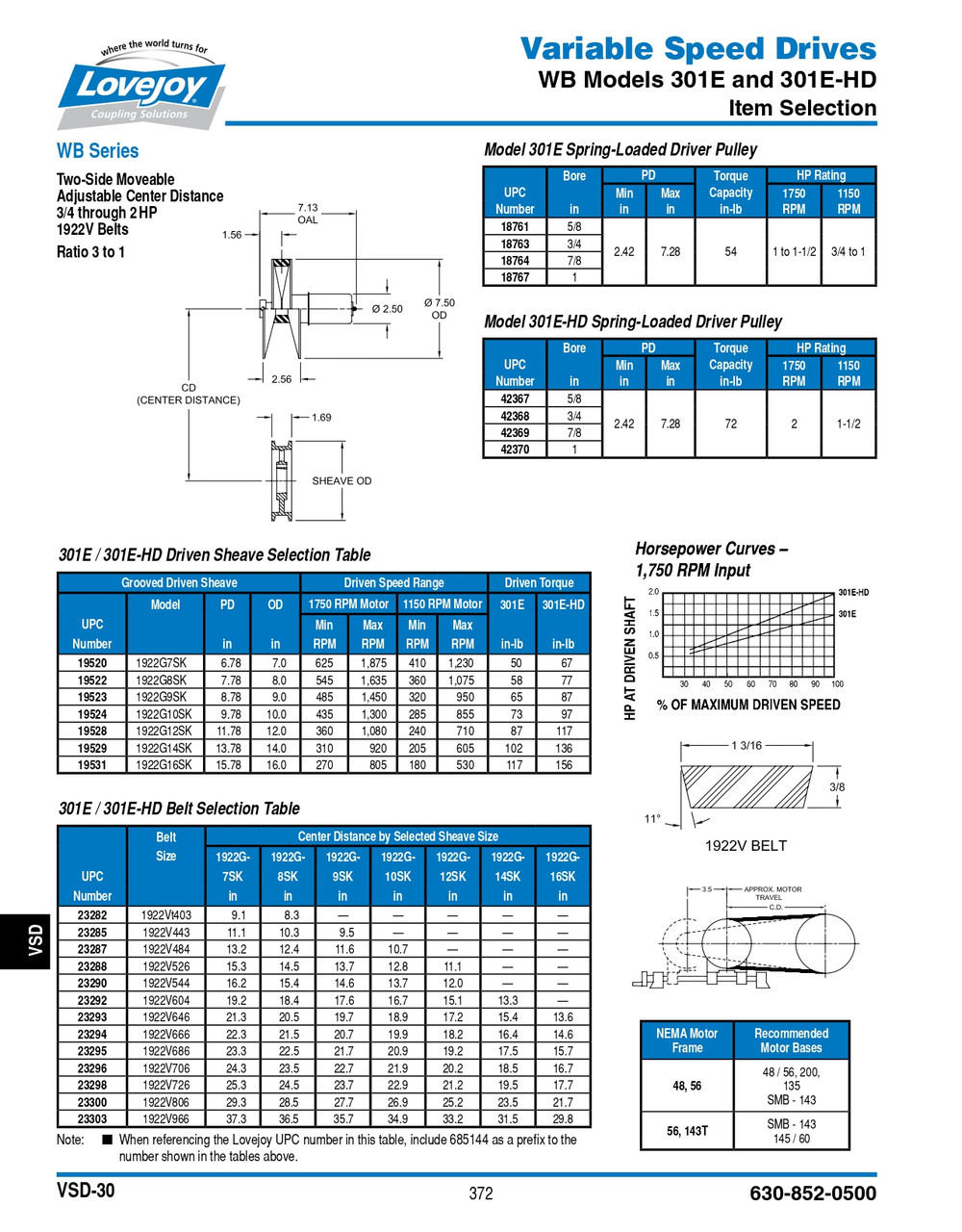

    adobepdficon.png Timken Lovejoy Master Catalog

    • Product Videos

    Custom Field

    Series 301E
    Shaft diameter 1"
    Keyway size 1/4 x 1/8"
    Outer diameter 7.50"
    Belt size 1922V
    Type Variable speed drive
