1" Industrial Eccentric Locking Collar Take-Up Unit Assembly RTU1

These ball bearing take-up units are used where shaft adjustment and belt-tightening devices are required, such as in conveyor applications

Both types of take-up units incorporate self-aligning, B-type wide-inner-ring ball bearings with self-locking collars

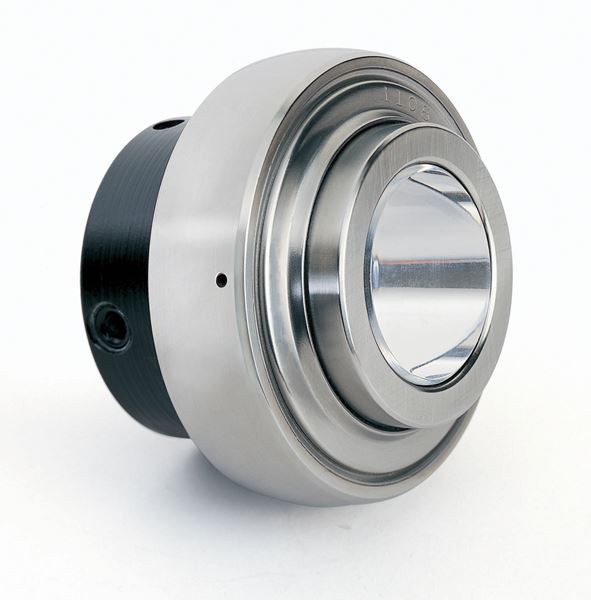

These units use a G-KRRB, R-seal type wide inner ring ball bearing

These units provide compact, efficient supports for adjustable shafts and conveyer take-up pulleys

The units are factory-prelubricated A grease fitting is provided for relubrication if required

See the preceding page for take-up frames to fit these units

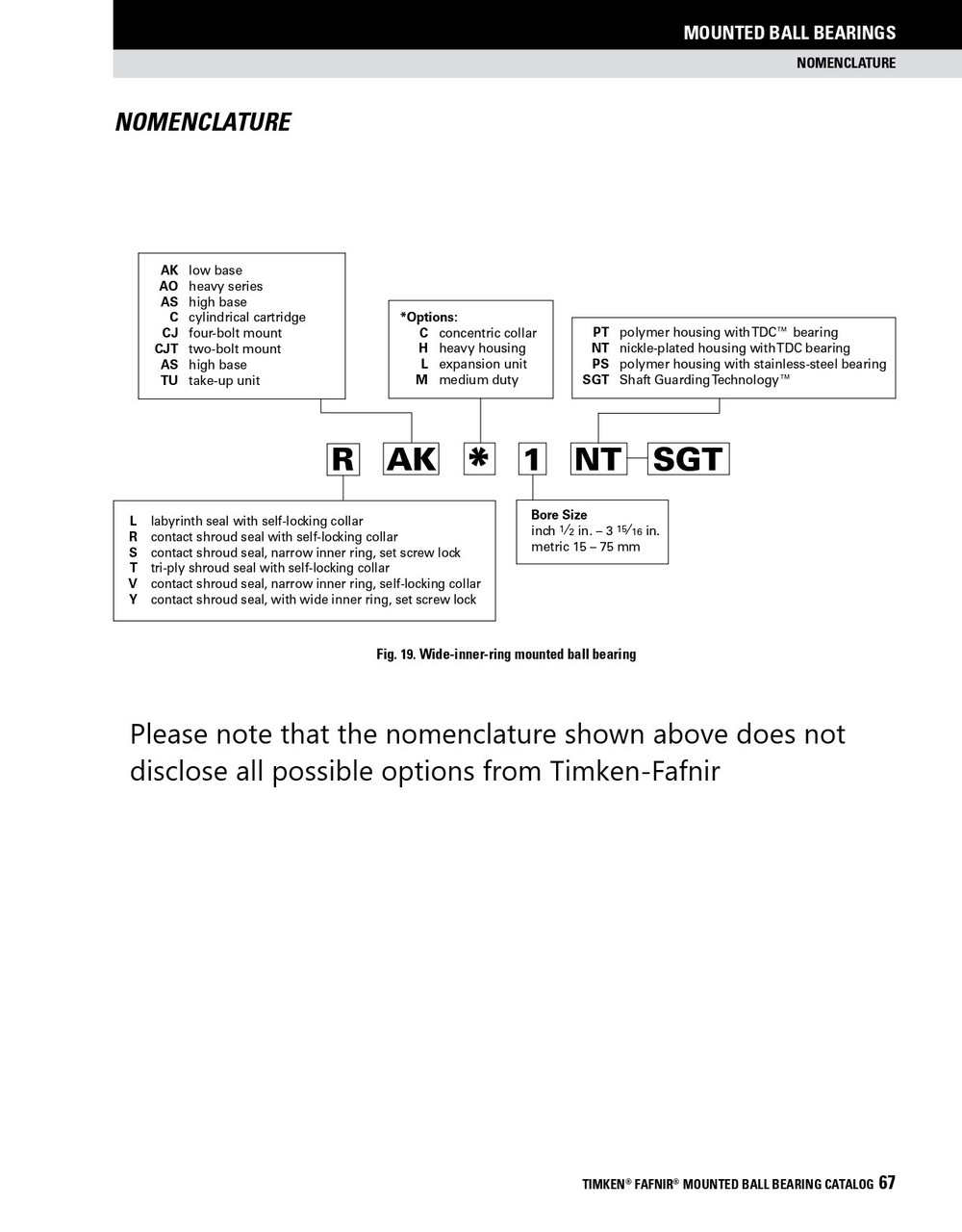

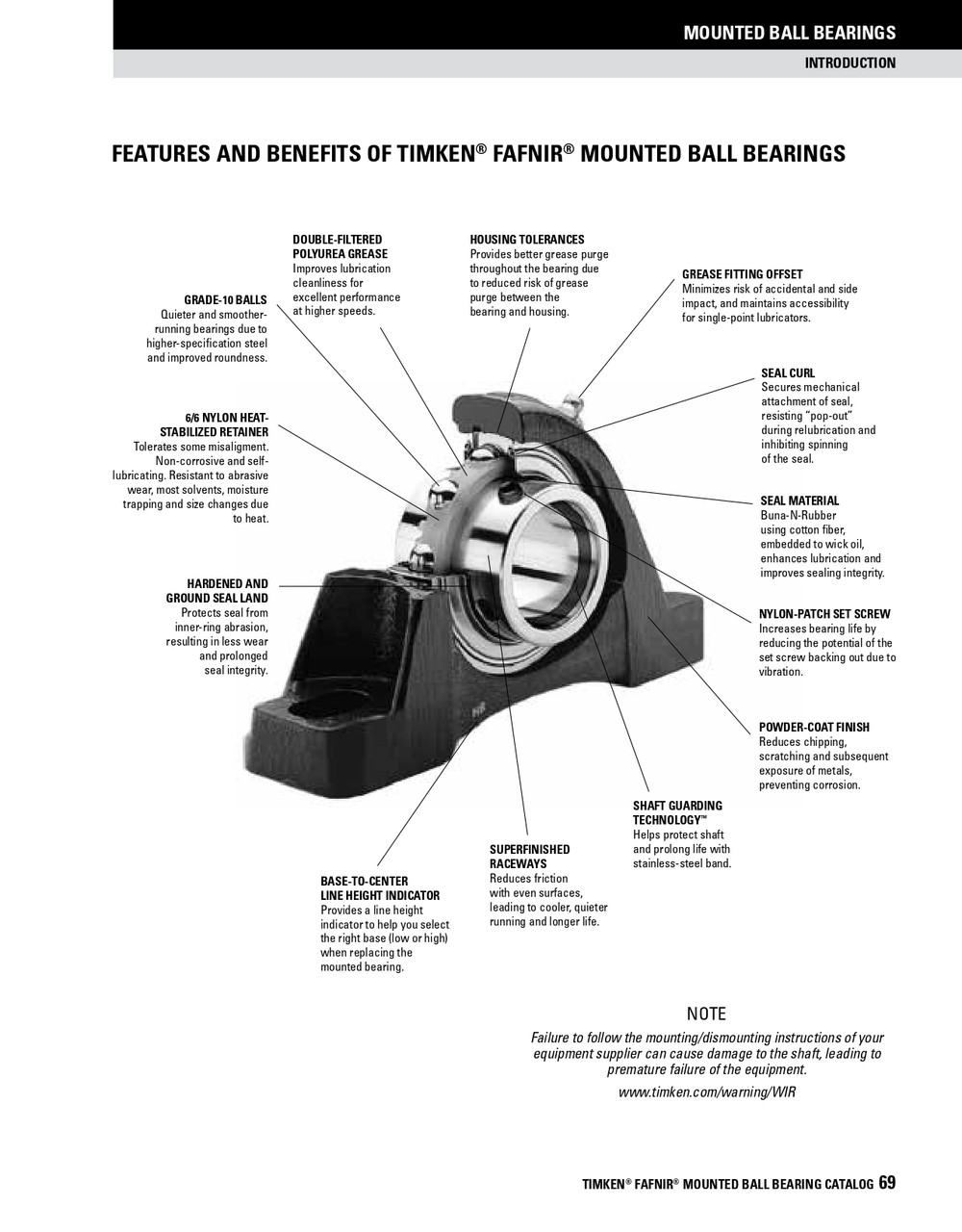

Timken Fafnir Mounted Ball Bearing Catalog

Timken Fafnir Competitive Interchange Chart

Bearing Type Deep groove ball bearing

Shaft profile Round

Bearing material Hardened steel

Housing material Cast iron

Outer diameter profile Spherical

Locking device Eccentric locking collar
