  • 1.831" Inch Rubberized Polyacrylate Oil Seal - Specific Application 710397
  • 1.831" Inch Rubberized Polyacrylate Oil Seal - Specific Application 710397
  • 1.831" Inch Rubberized Polyacrylate Oil Seal - Specific Application 710397
  • 1.831" Inch Rubberized Polyacrylate Oil Seal - Specific Application 710397
  • 1.831" Inch Rubberized Polyacrylate Oil Seal - Specific Application 710397
  • 1.831" Inch Rubberized Polyacrylate Oil Seal - Specific Application 710397

    • 1.831" Inch Rubberized Polyacrylate Oil Seal - Specific Application 710397

    National Oil Seals

    $35.00
    (No reviews yet) Write a Review
    SKU:
    NAT 710397 SEAL
    UPC:
    UPC 053893499789
    Weight:
    0.19 LBS
    Shaft size:
    1.831"
    Seal outer diameter:
    3.551"
    Seal width:
    0.433"
    Seal type & style:
    # (Specific application)
    Lip material:
    N (Polyacrylate)
    Case material:
    Rubberized metal
    Temperature range:
    -25°C ~ 149°C (-13°F ~ 300°F)
    Seal series:
    710300
    Hardness:
    70 Durometer
    Denoted measurement:
    Inch
    Shown in catalog:
    Yes
    Adding to cart… category.add_cart_announcement

    Product Description

  • Polyacrylate (Lip code: N) are well suited for use with extreme pressure (EP) lubricants and have higher resistance to oxidation and ozone than nitrile.
  • Resistant to sulphur commonly used as a grease additive.
  • Polyacrylate elastomers have good compatibility with higher temperatures up to 149°C (300°F), and even to 177°C (350°F) with some fluids.
  • They should not be used alongside water or other aqueous solutions.
  • Does not perform at temperatures below -40°C (-40°F)
  • Polyacrylates are not recommended for dry running applications.

  • Rubber cover over a metallic core offers an excellent combination of sealing ability and corrosion resistance.
  • The rubber elastomer outer covering tolerates thermal expansion as well as roughness in the housing bore.
  • Because of the rubberized covering on the seal, there will be no fretting/galvanic corrosion of the metal bore that the seal is pressed into.

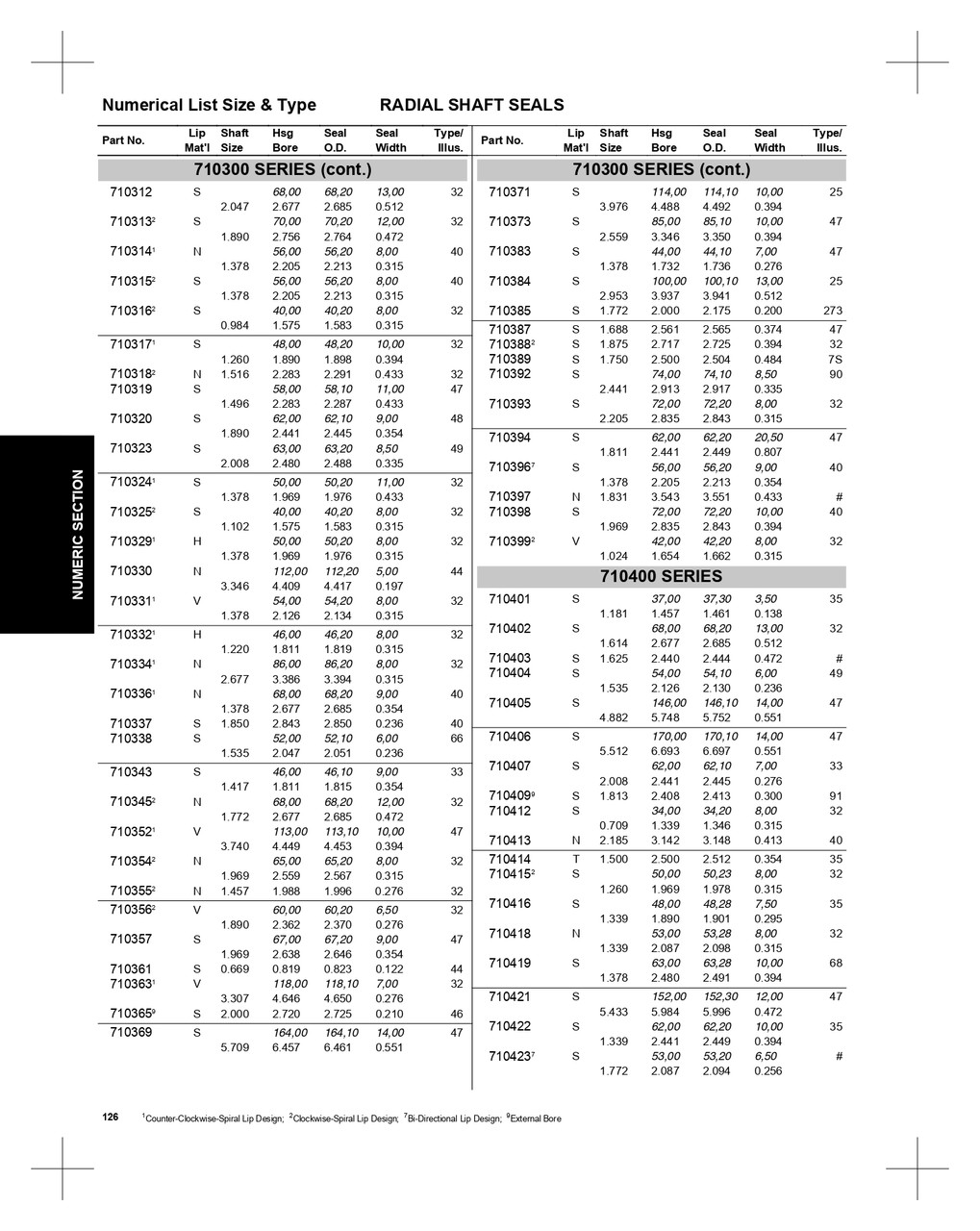

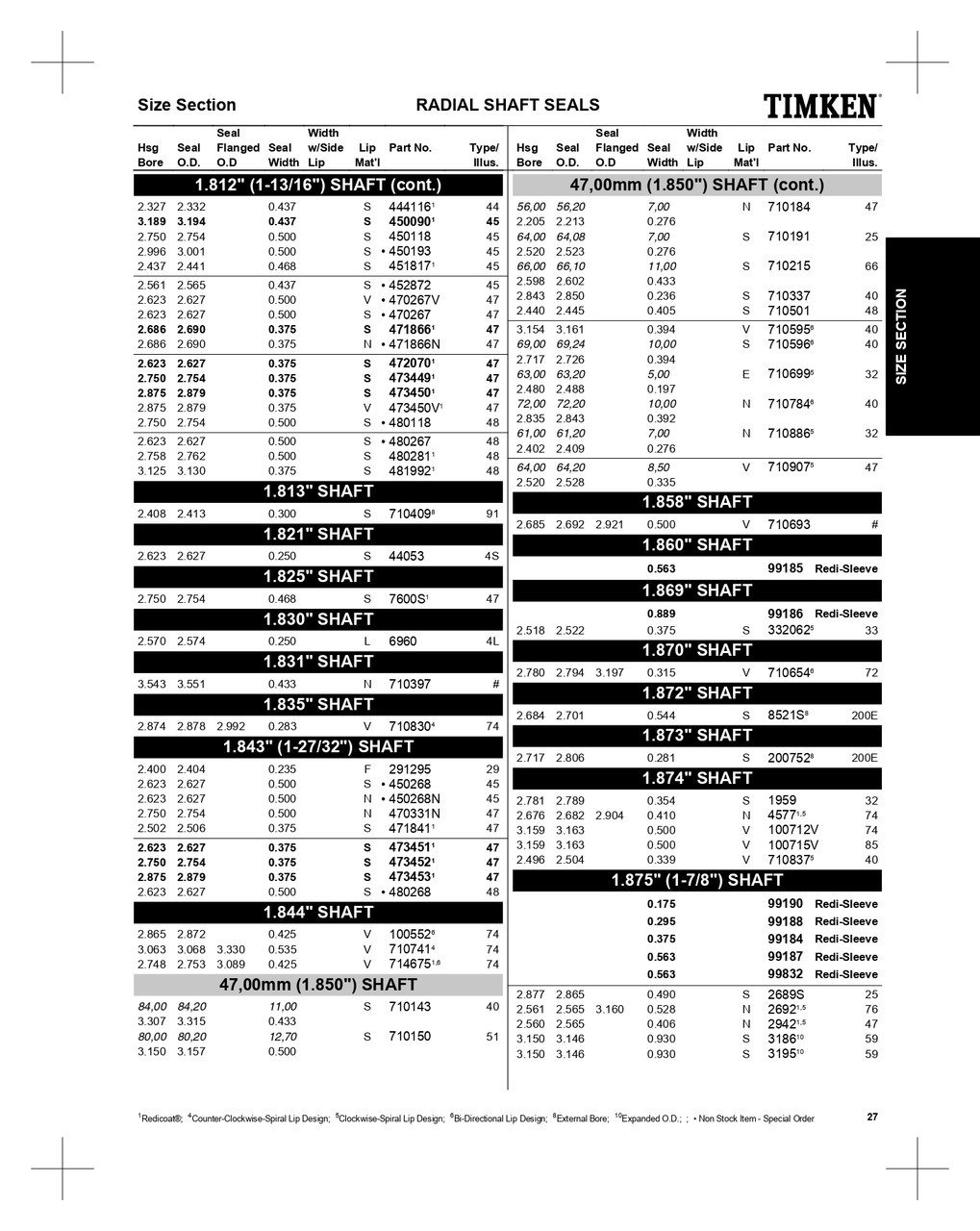

  • Please note that not all product images are representative of the item being shown but are similar in appearance. Please refer to the seals technical specifications sheet provided in the image carousel for absolute confirmation before ordering.

    Follow this link for access to Timken's interactive, multi-vehicle, bearing & seal application database.

    Follow this link to access Timken's National oil seal & competitor's interchange.

    adobepdficon.png Timken Metric Oil Seal Catalog

    adobepdficon.png National 7707 Inch Oil Seal Catalog & Interchange

    • Product Videos

    Custom Field

    Shaft size 1.831"
    Seal outer diameter 3.551"
    Seal width 0.433"
    Seal type & style # (Specific application)
    Lip material N (Polyacrylate)
    Case material Rubberized metal
    Temperature range -25°C ~ 149°C (-13°F ~ 300°F)
    Seal series 710300
    Hardness 70 Durometer
    Denoted measurement Inch
    Shown in catalog Yes
