  • 1-7/8" Shaft Lovejoy® DI110-6 Series Drop In Spacer Disc Coupling Hub DI110-6-HUB-1-7/8-1/2X1/4KW
  • 1-7/8" Shaft Lovejoy® DI110-6 Series Drop In Spacer Disc Coupling Hub DI110-6-HUB-1-7/8-1/2X1/4KW
  • 1-7/8" Shaft Lovejoy® DI110-6 Series Drop In Spacer Disc Coupling Hub DI110-6-HUB-1-7/8-1/2X1/4KW
  • 1-7/8" Shaft Lovejoy® DI110-6 Series Drop In Spacer Disc Coupling Hub DI110-6-HUB-1-7/8-1/2X1/4KW
  • 1-7/8" Shaft Lovejoy® DI110-6 Series Drop In Spacer Disc Coupling Hub DI110-6-HUB-1-7/8-1/2X1/4KW
  • 1-7/8" Shaft Lovejoy® DI110-6 Series Drop In Spacer Disc Coupling Hub DI110-6-HUB-1-7/8-1/2X1/4KW
  • 1-7/8" Shaft Lovejoy® DI110-6 Series Drop In Spacer Disc Coupling Hub DI110-6-HUB-1-7/8-1/2X1/4KW

    • 1-7/8" Shaft Lovejoy® DI110-6 Series Drop In Spacer Disc Coupling Hub DI110-6-HUB-1-7/8-1/2X1/4KW

    Timken

    $1,029.34
    (No reviews yet) Write a Review
    SKU:
    TIM DI110-6-HUB-1-7/8-1/2X1/4KW
    UPC:
    UPC 0697904944310
    Weight:
    3.21 LBS
    Series:
    DI110-6
    Shaft diameter:
    1-7/8"
    Material:
    AISI 1045
    Keyway size:
    1/2 x 1/4"
    Coupling type:
    Disc coupler
    Adding to cart… category.add_cart_announcement

    Product Description

  • The DI Type coupling has a “Drop-In” spacer assembly that is assembled at the factory.

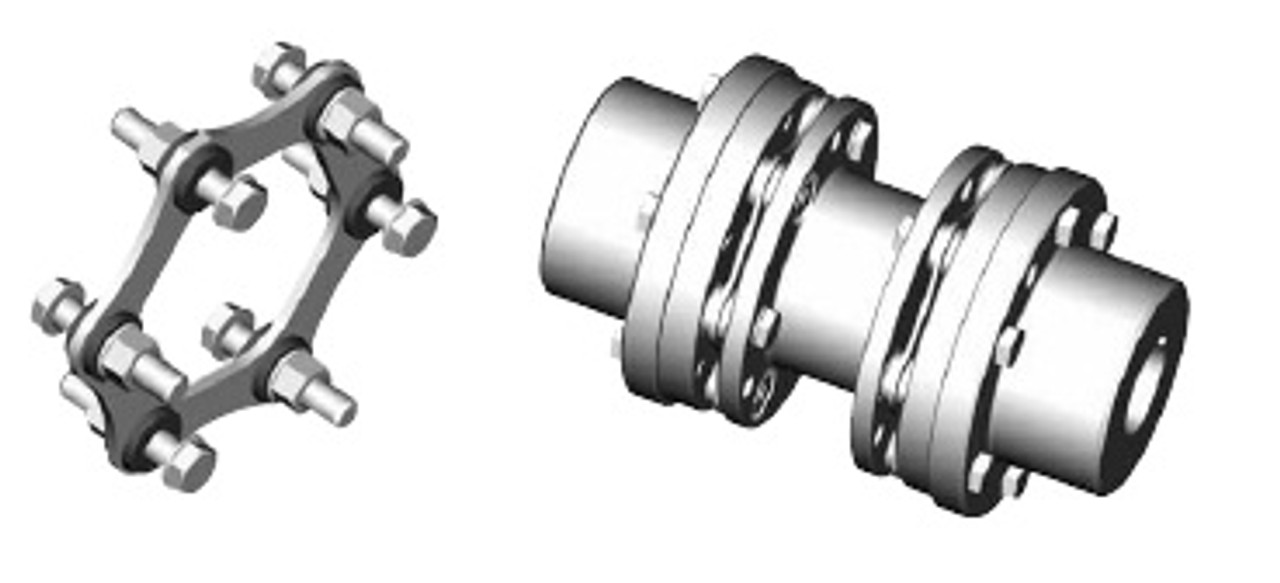

  • The coupling consists of two hubs and a spacer assembly comprising of the spacer, two unitized disc packs, and two guard rings.
  • The disc packs are bolted to the spacer and guard rings at the factory using the torque values recommended by Lovejoy for the disc pack bolts.
  • With the hubs mounted on the shafts, the entire disc pack assembly can be “Dropped In” place between the two hubs.
  • The hubs are piloted to ensure proper centering of the spacer assembly.
  • This piloting serves as an anti-flail feature and aids in the coupling's ability to meet the balance standards mandated by API.
  • This style coupling is designed to meet the balance and anti-flail requirements specified in API-610.
  • Oversized, or jumbo, hubs are available for use with the DI Type coupling to allow for larger bore sizes on most DI coupling sizes.
  • This allows for the use of smaller DI couplings in applications where a smaller size coupling can still accommodate the application torque.
  • The DI Type coupling is the standard 6 bolt coupling with two hubs and a spacer assembly that can be installed or removed without disturbing the equipment and hubs and without removing the disc packs from the spacer assembly.
  • Custom spacer lengths can be specified for special applications.
  • The coupling has two flex planes (one at each disc pack) so it can accommodate parallel misalignment by the angular misalignment in each disc pack.
  • This configuration will also accommodate axial misalignment within the specified limits.

  • Timken’s Quick Flex® Elastomeric Coupling Configurator helps you quickly size Quick Flex coupling solutions for common applications.
  • By entering motor power (HP or kW), speed (rpm), and service factors, the configurator presents available Quick Flex coupling options, supporting faster selection and quoting.
  • Access the Quick Flex® Coupling Configurator to speed up your next coupling selection.

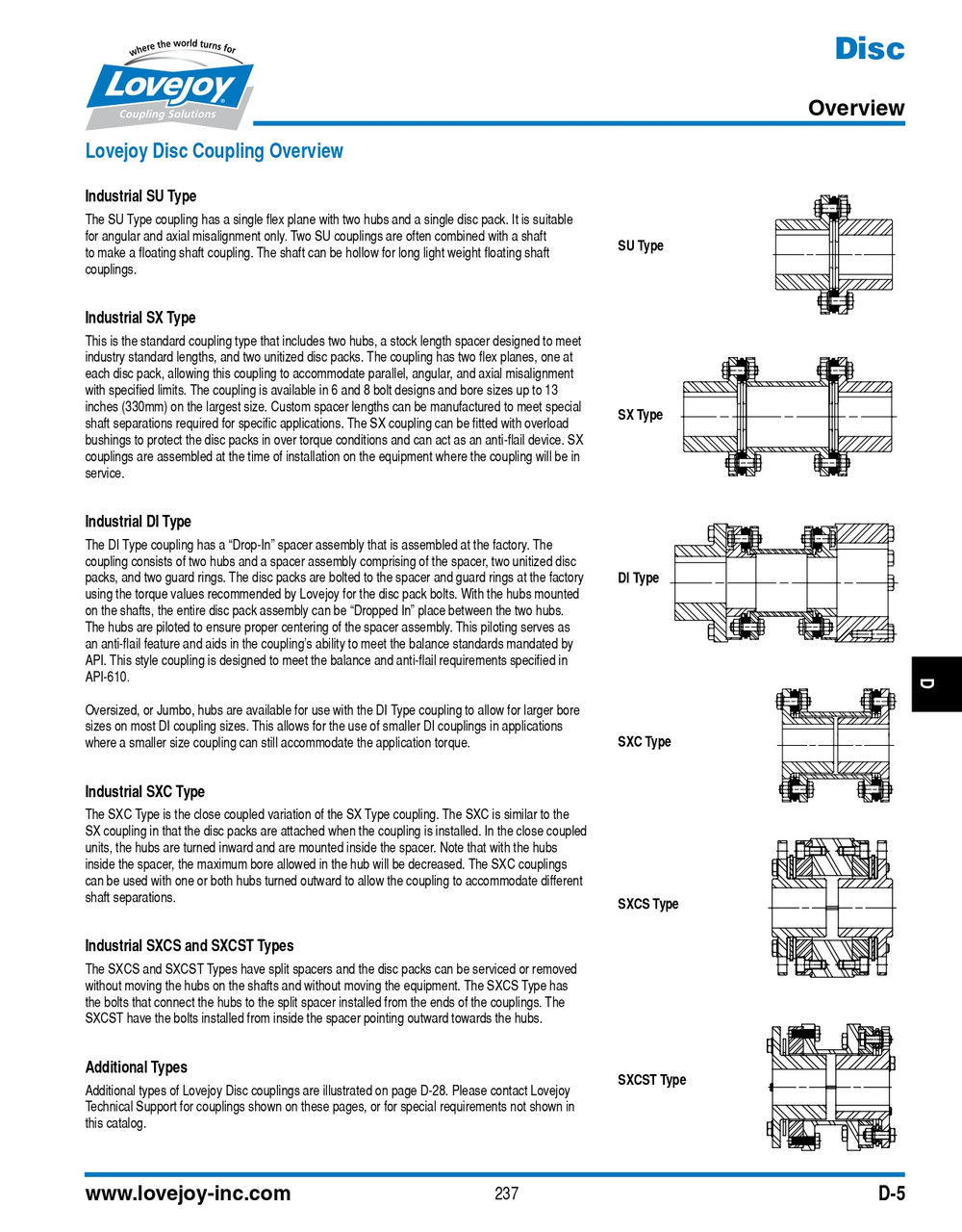

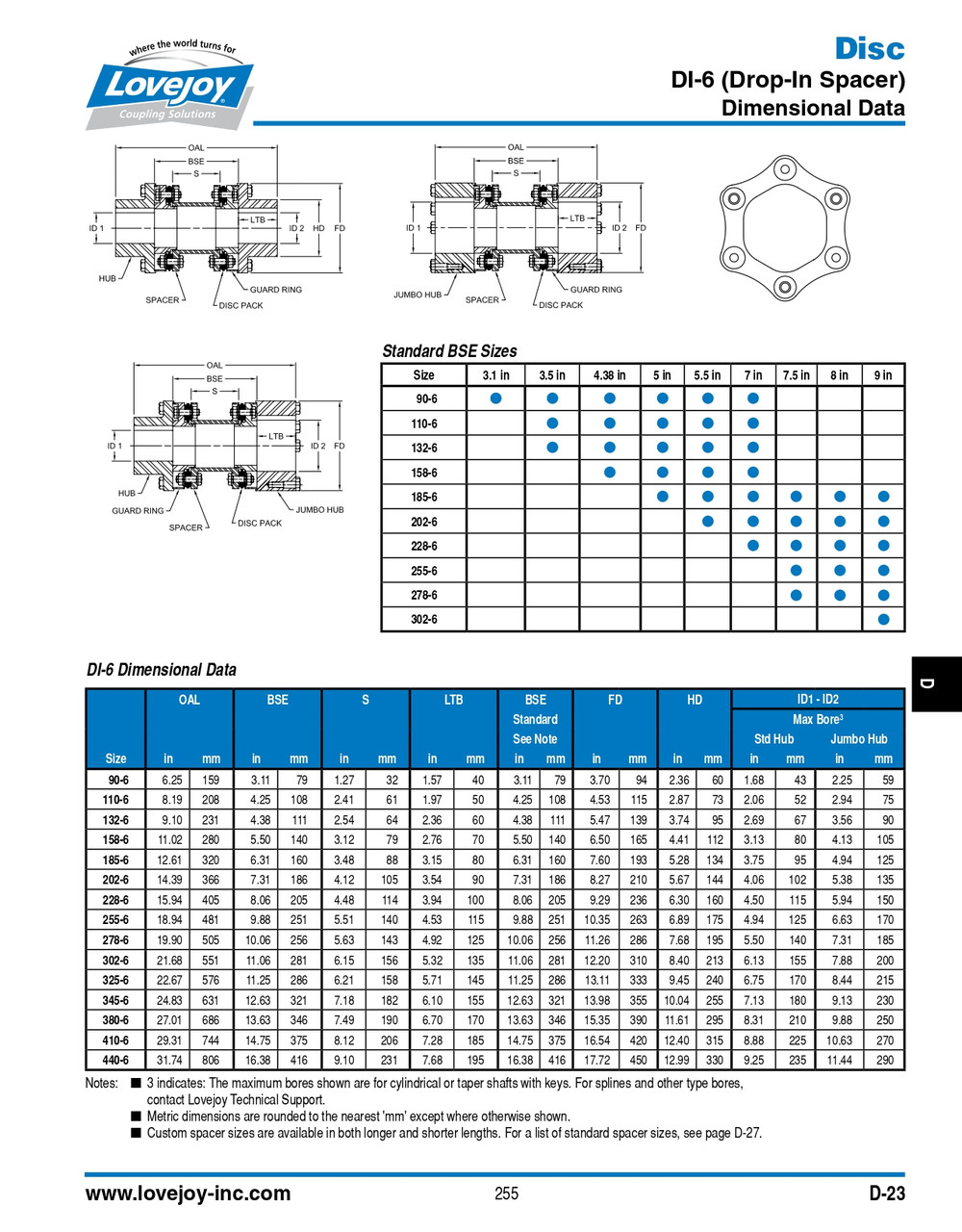

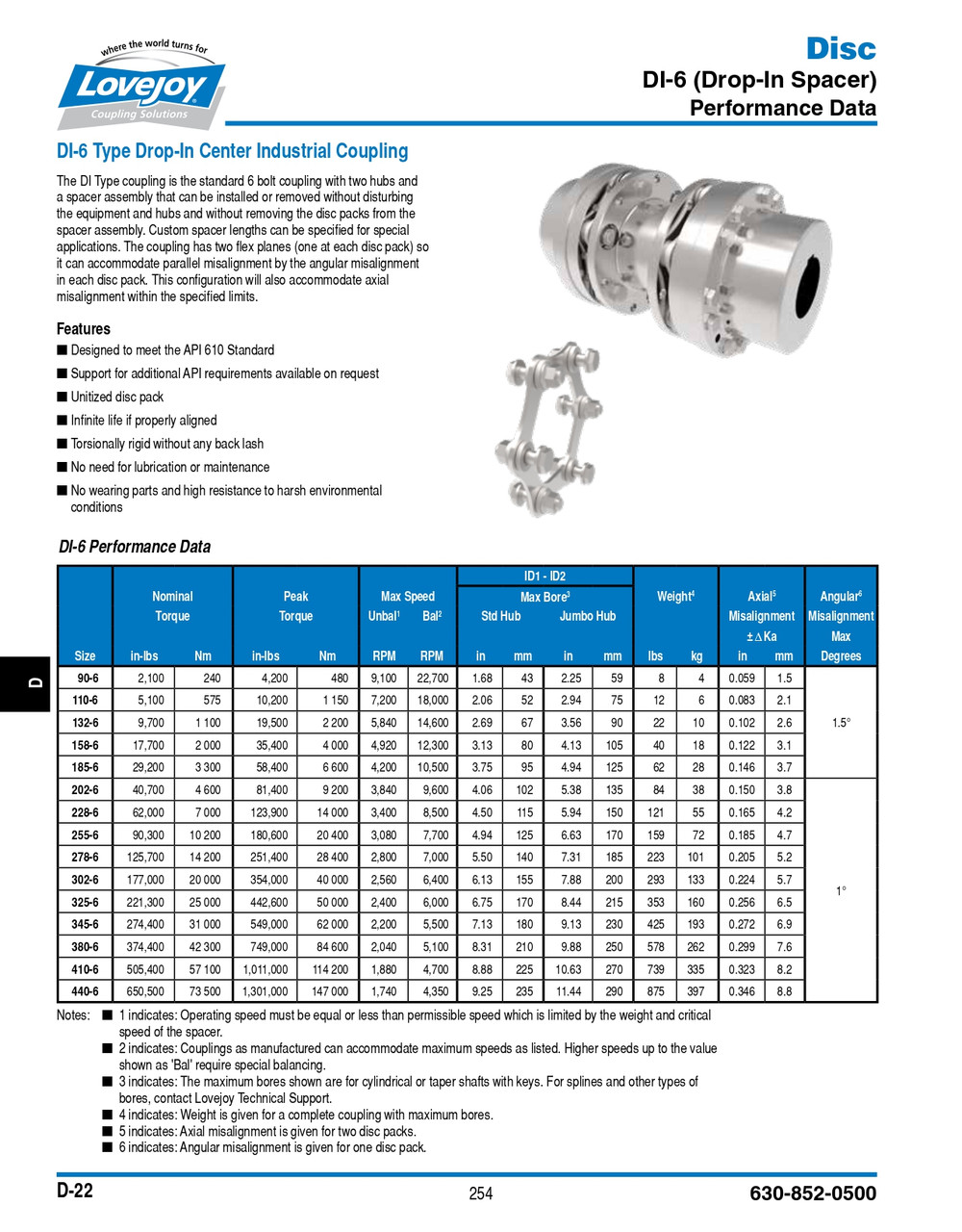

    adobepdficon.png Timken Lovejoy Master Catalog

    adobepdficon.png Drop-In Disc Coupling Installation Guide

    • Product Videos

    Custom Field

    Series DI110-6
    Shaft diameter 1-7/8"
    Material AISI 1045
    Keyway size 1/2 x 1/4"
    Coupling type Disc coupler
