  • 1.693" Inch Metal Flanged Double Lip Polyacrylate Oil Seal w/Flinger 710159
  • 1.693" Inch Metal Flanged Double Lip Polyacrylate Oil Seal w/Flinger 710159
  • 1.693" Inch Metal Flanged Double Lip Polyacrylate Oil Seal w/Flinger 710159
  • 1.693" Inch Metal Flanged Double Lip Polyacrylate Oil Seal w/Flinger 710159
  • 1.693" Inch Metal Flanged Double Lip Polyacrylate Oil Seal w/Flinger 710159

    • 1.693" Inch Metal Flanged Double Lip Polyacrylate Oil Seal w/Flinger 710159

    National Oil Seals

    $34.01
    (No reviews yet) Write a Review
    SKU:
    NAT 710159 SEAL
    UPC:
    UPC 053893497716
    Weight:
    0.06 LBS
    Shaft size:
    1.693"
    Seal outer diameter:
    2.308"
    Seal width:
    0.295"
    Seal type & style:
    72 (Double lip w/flinger)
    Lip material:
    N (Polyacrylate)
    Case material:
    Plain metal case
    Temperature range:
    -25°C ~ 149°C (-13°F ~ 300°F)
    Spring retained:
    Yes
    Seal series:
    710100
    Hardness:
    70 Durometer
    Notable feature:
    External flinger seal
    Notable feature:
    Flanged O.D.
    Denoted measurement:
    Inch
    Shown in catalog:
    Yes
    Adding to cart… category.add_cart_announcement

    Product Description

  • Polyacrylate (Lip code: N) are well suited for use with extreme pressure (EP) lubricants and have higher resistance to oxidation and ozone than nitrile.
  • Resistant to sulphur commonly used as a grease additive.
  • Polyacrylate elastomers have good compatibility with higher temperatures up to 149°C (300°F), and even to 177°C (350°F) with some fluids.
  • They should not be used alongside water or other aqueous solutions.
  • Does not perform at temperatures below -40°C (-40°F)
  • Polyacrylates are not recommended for dry running applications.

  • Many of Nationals metal cased seals are offered with Redi-Coat® rubberized coating which is applied over the seals bare metal case and helps fill in any minor bore imperfections upon installing the new seal.

  • Please note that not all product images are representative of the item being shown but are similar in appearance. Please refer to the seals technical specifications sheet provided in the image carousel for absolute confirmation before ordering.

    Follow this link for access to Timken's interactive, multi-vehicle, bearing & seal application database.

    Follow this link to access Timken's National oil seal & competitor's interchange.

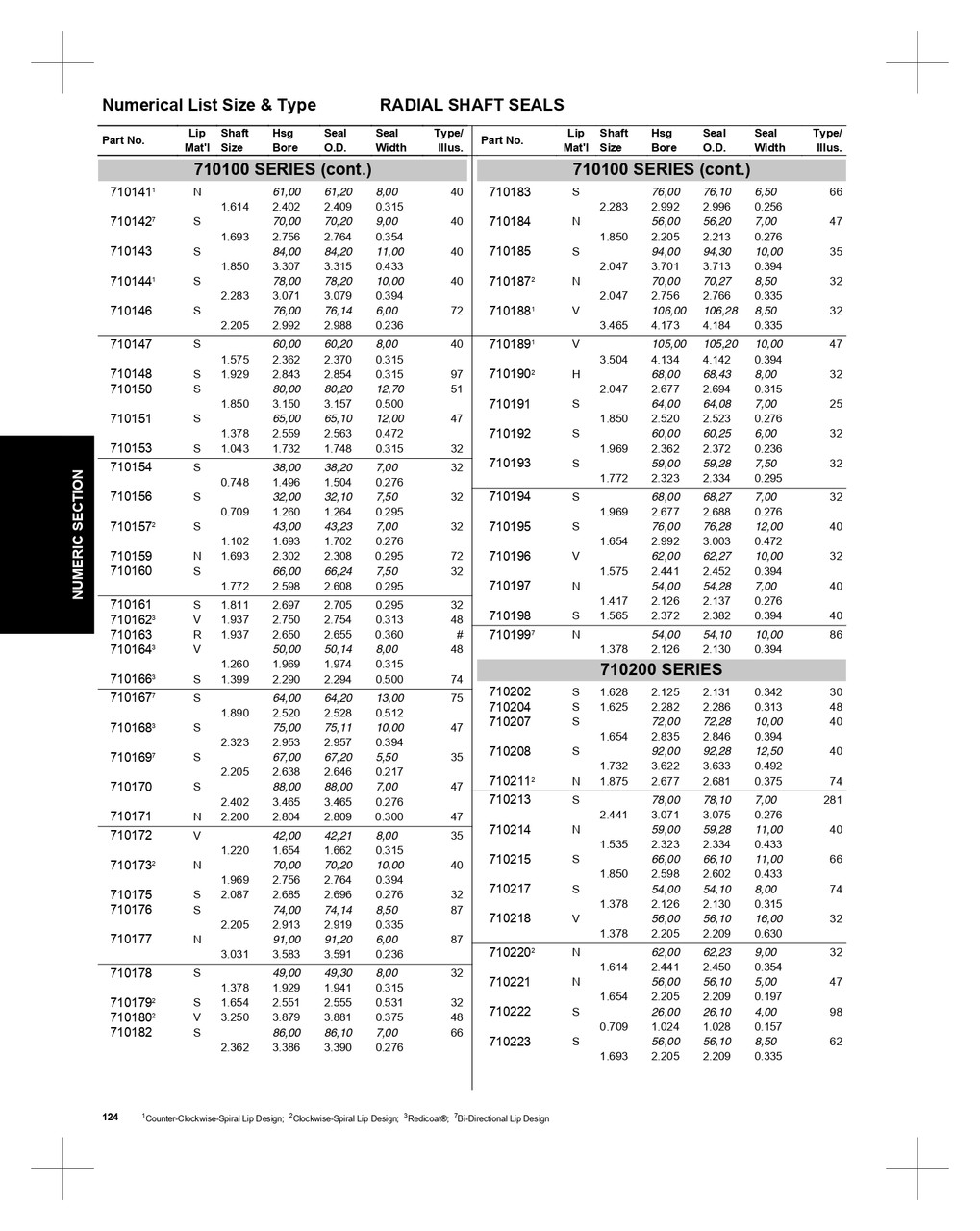

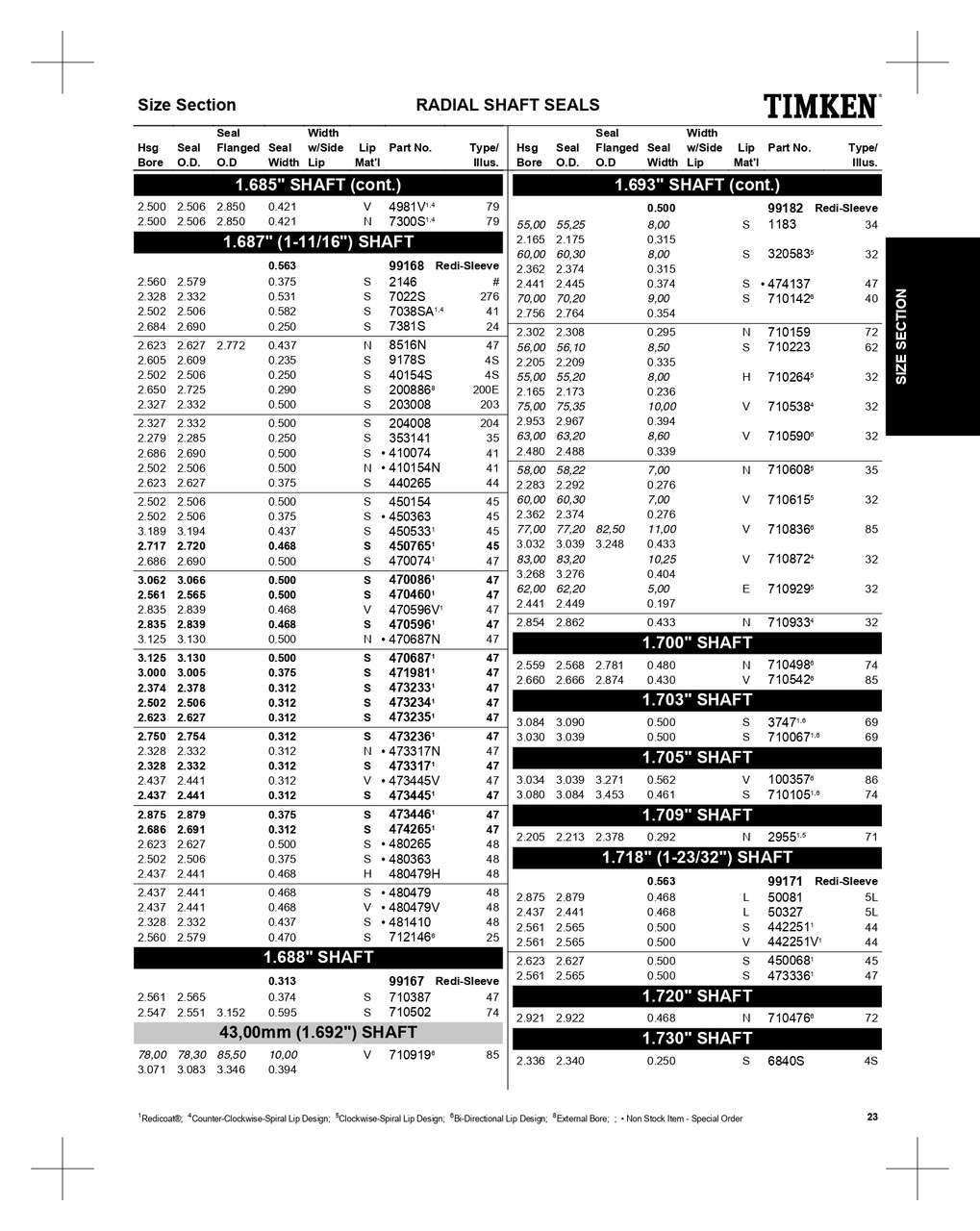

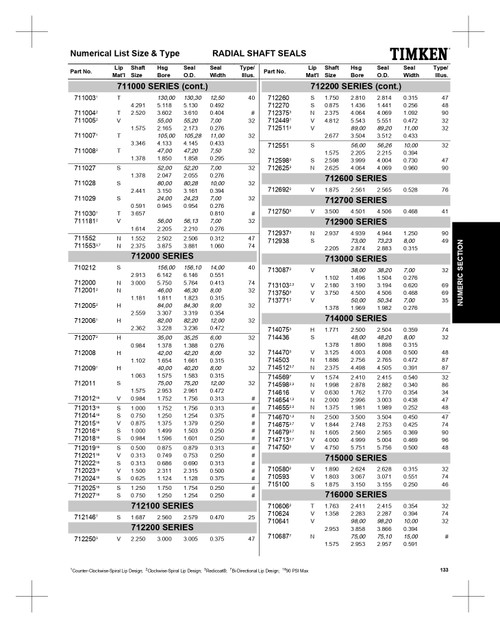

    adobepdficon.png Timken Metric Oil Seal Catalog

    adobepdficon.png National 7707 Inch Oil Seal Catalog & Interchange

    • Product Videos

    Custom Field

    Shaft size 1.693"
    Seal outer diameter 2.308"
    Seal width 0.295"
    Seal type & style 72 (Double lip w/flinger)
    Lip material N (Polyacrylate)
    Case material Plain metal case
    Temperature range -25°C ~ 149°C (-13°F ~ 300°F)
    Spring retained Yes
    Seal series 710100
    Hardness 70 Durometer
    Notable feature External flinger seal
    Notable feature Flanged O.D.
    Denoted measurement Inch
    Shown in catalog Yes
