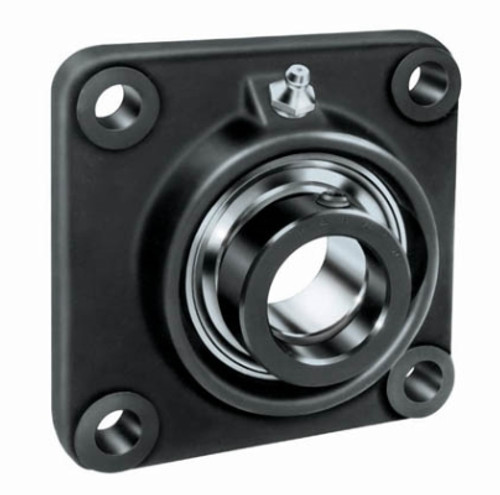

  • 1-5/8" Industrial Eccentric Locking Collar Flange Block Assembly TCJ1 5/8
  • 1-5/8" Industrial Eccentric Locking Collar Flange Block Assembly TCJ1 5/8
  • 1-5/8" Industrial Eccentric Locking Collar Flange Block Assembly TCJ1 5/8
  • 1-5/8" Industrial Eccentric Locking Collar Flange Block Assembly TCJ1 5/8
  • 1-5/8" Industrial Eccentric Locking Collar Flange Block Assembly TCJ1 5/8
  • 1-5/8" Industrial Eccentric Locking Collar Flange Block Assembly TCJ1 5/8
  • 1-5/8" Industrial Eccentric Locking Collar Flange Block Assembly TCJ1 5/8
  • 1-5/8" Industrial Eccentric Locking Collar Flange Block Assembly TCJ1 5/8

    • 1-5/8" Industrial Eccentric Locking Collar Flange Block Assembly TCJ1 5/8

    Timken

    $0.00
    (No reviews yet) Write a Review
    SKU:
    TIM TCJ1 5/8
    Weight:
    4.97 LBS
    Bearing Type:
    Deep groove ball bearing
    Shaft profile:
    Round
    Bearing material:
    Hardened steel
    Housing material:
    Cast iron
    Outer diameter profile:
    Spherical
    Locking device:
    Eccentric locking collar

    Product Description

  • Timken Fafnir cartridges are used in applications where a minimum amount of machining is to be done
  • Each unit comes assembled and ready for mounting, with bolts through the flange

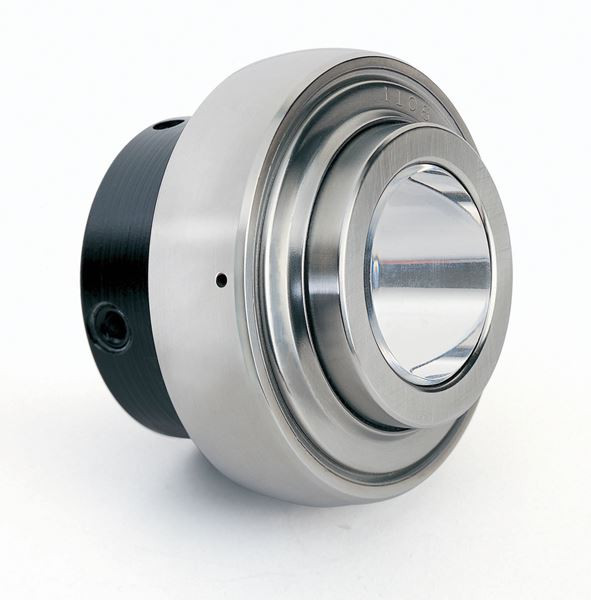

  • These are wide-inner-ring ball bearings, self-aligning B-types, which compensate for shaft misalignment
  • The RCJ flange cartridge is equipped with G-KRRB (R-seal) wide-inner-ring ball bearings The TCJ is equipped with G-KPPB (tri-ply seal) wide-inner-ring ball bearings The LCJ is equipped with the G-KLLB (Mechani-seal) wide-inner-ring ball bearings
  • The TCJ flange cartridges are identical to RCJ units, except they use the tri-ply seal bearing Tri-ply units offer the best protection in dirty environments
  • The units are factory-prelubricated, but a grease fitting is provided for relubrication if required The units are supplied with self-locking collars

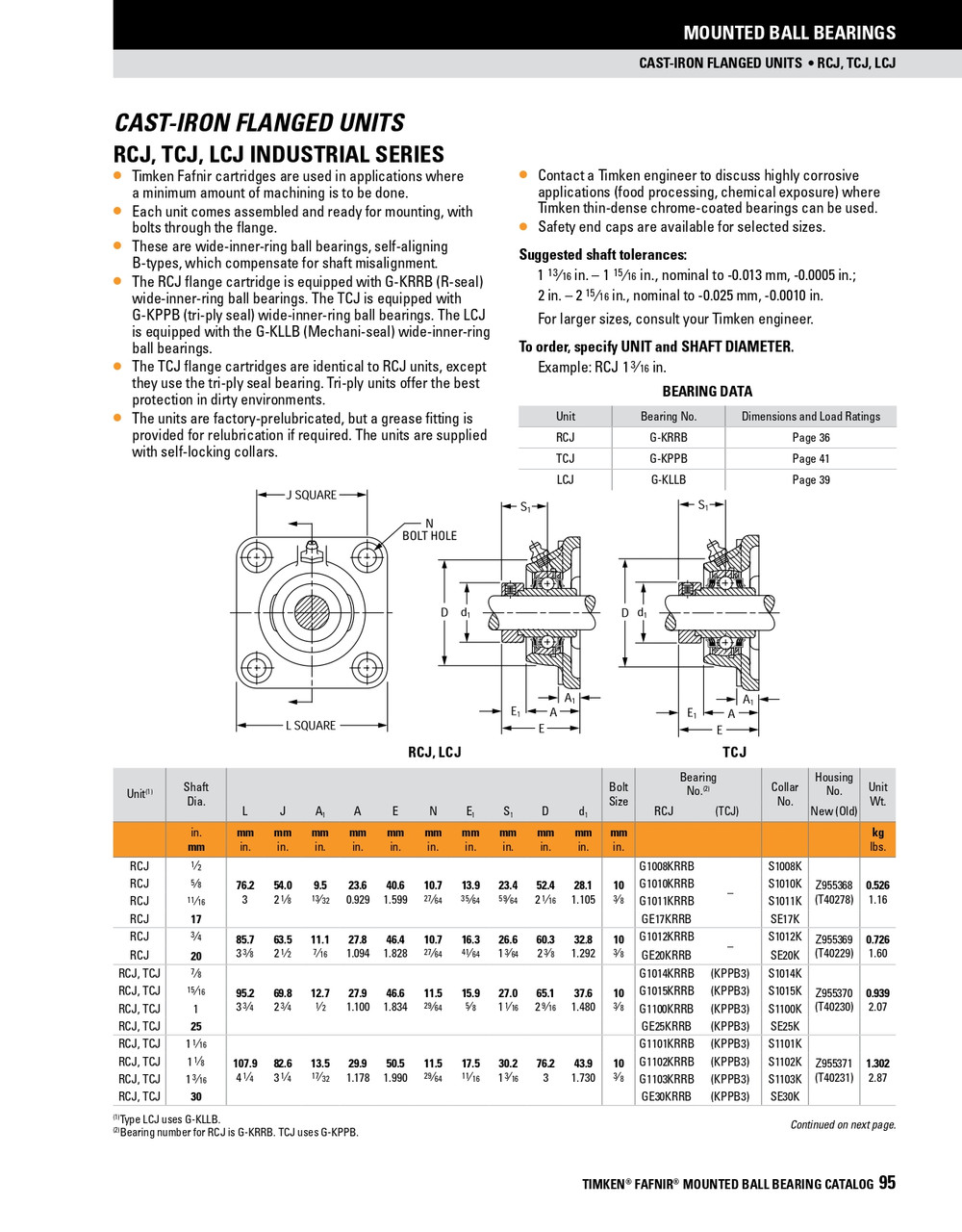

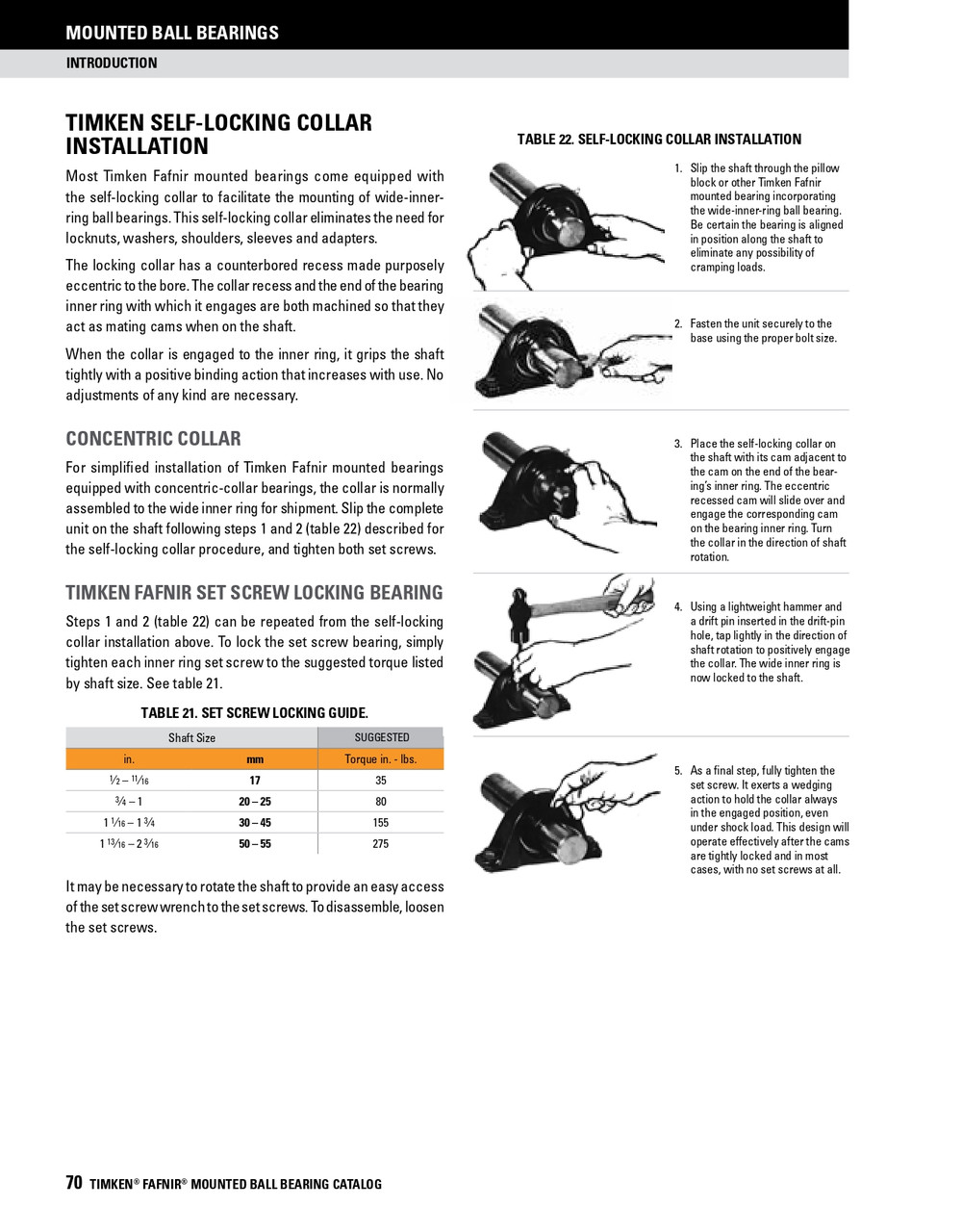

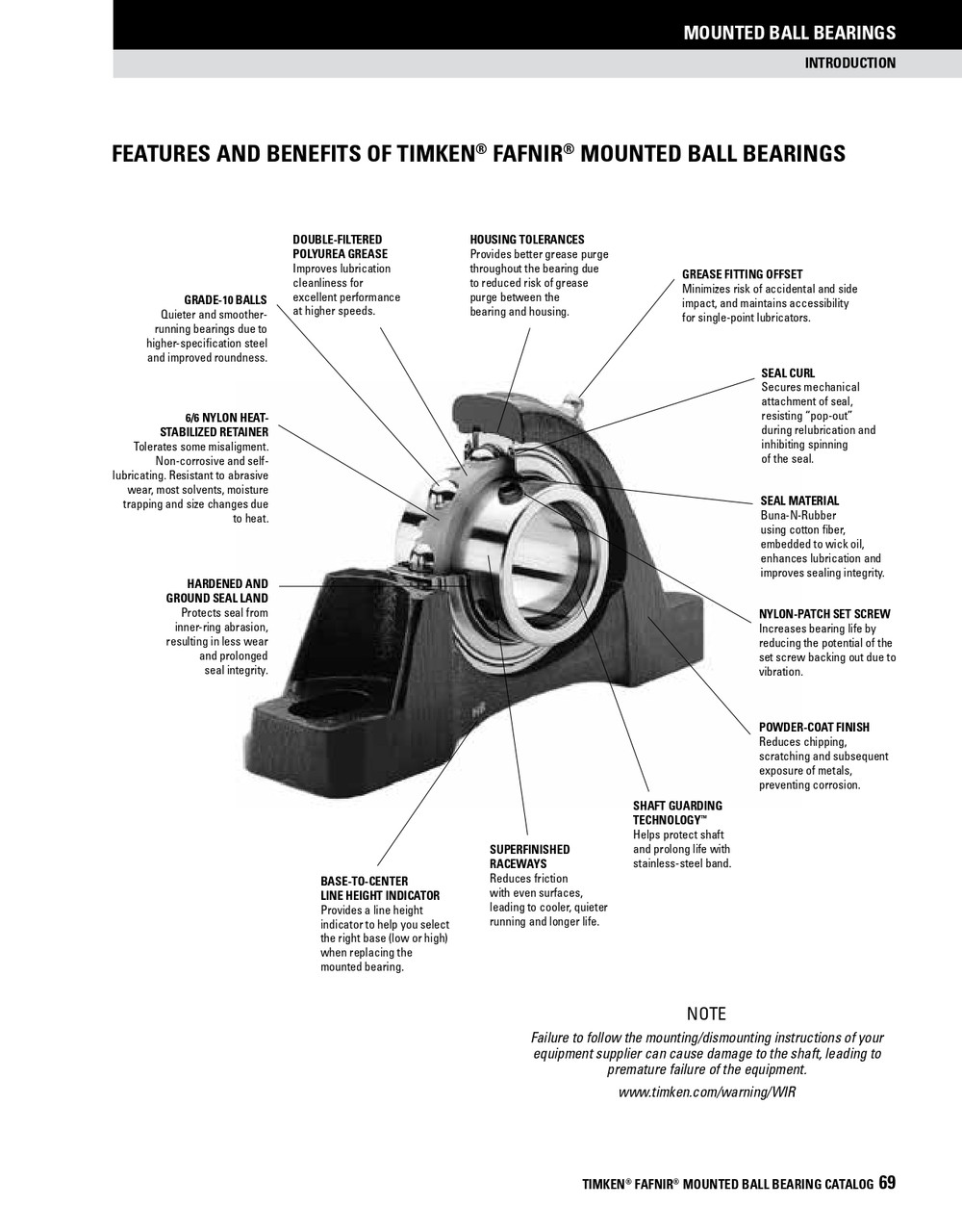

    adobepdficon.png Timken Fafnir Mounted Ball Bearing Catalog

    adobepdficon.png Timken Fafnir Competitive Interchange Chart

    • Product Videos

    Custom Field

    Bearing Type Deep groove ball bearing
    Shaft profile Round
    Bearing material Hardened steel
    Housing material Cast iron
    Outer diameter profile Spherical
    Locking device Eccentric locking collar
