    Timken

    $0.00
    (No reviews yet) Write a Review
    SKU:
    TIM RCJC1 5/8
    Weight:
    5.00 LBS
    Bearing Type:
    Deep groove ball bearing
    Shaft profile:
    Round
    Bearing material:
    Hardened steel
    Housing material:
    Cast iron
    Outer diameter profile:
    Spherical
    Locking device:
    Concentric lock collar

    Product Description

  • These units have the same basic design as the RCJ series, except a concentric collar is used as the shaft-locking device instead of a self-locking cam collar
  • All RCJC units are equipped with GC-KRRB wide inner ring, concentric-collar bearings
  • The spherical outside diameter of the bearings is mounted in corresponding machined housing seats to provide the initial self-alignment
  • The bolt-hole spacing dimensions are interchangeable with the RCJ series and most competitive units
  • The units are factory-prelubricated, but a grease fitting is provided for relubrication if required
  • Concentric collars are supplied with all units
  • Safety end caps are available for selected sizes

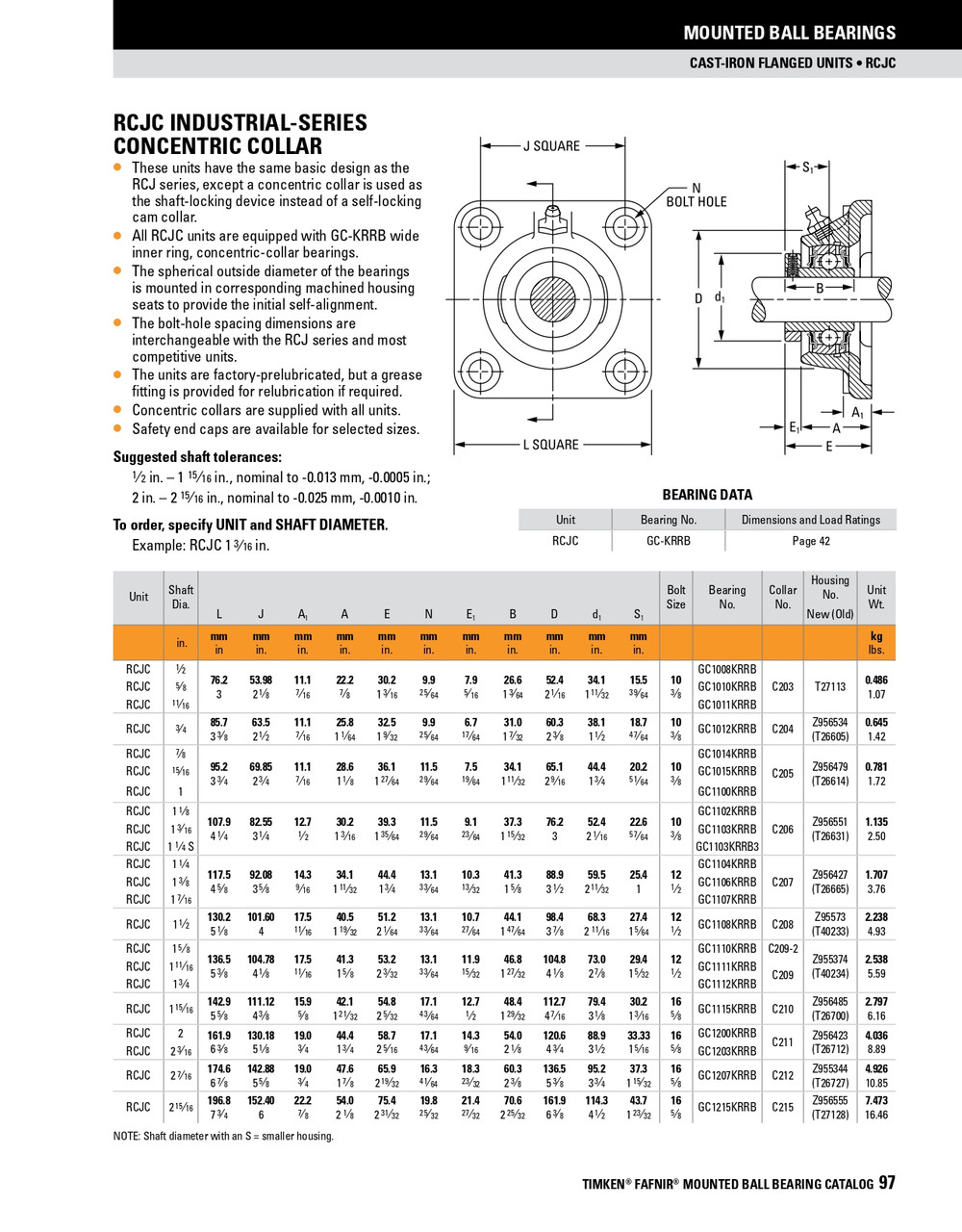

    adobepdficon.png Timken Fafnir Mounted Ball Bearing Catalog

    adobepdficon.png Timken Fafnir Competitive Interchange Chart

    • Product Videos

    Custom Field

    Bearing Type Deep groove ball bearing
    Shaft profile Round
    Bearing material Hardened steel
    Housing material Cast iron
    Outer diameter profile Spherical
    Locking device Concentric lock collar
