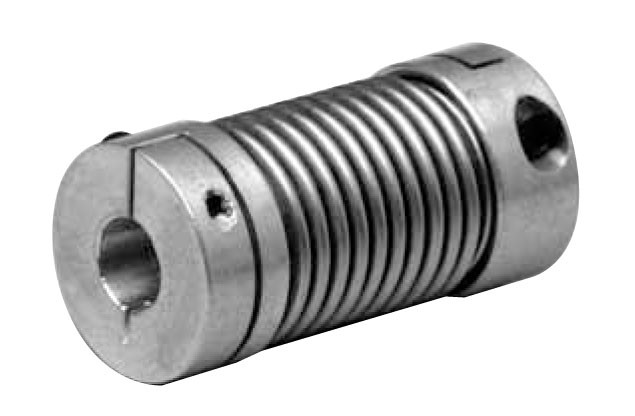

  • 1/4 x 1/4" Shaft Lovejoy® BWC-26 Bellows Clamp Coupling BWC26-CP-1/4X1/4
  • 1/4 x 1/4" Shaft Lovejoy® BWC-26 Bellows Clamp Coupling BWC26-CP-1/4X1/4
  • 1/4 x 1/4" Shaft Lovejoy® BWC-26 Bellows Clamp Coupling BWC26-CP-1/4X1/4
  • 1/4 x 1/4" Shaft Lovejoy® BWC-26 Bellows Clamp Coupling BWC26-CP-1/4X1/4

    • 1/4 x 1/4" Shaft Lovejoy® BWC-26 Bellows Clamp Coupling BWC26-CP-1/4X1/4

    Timken

    $388.28
    (No reviews yet) Write a Review
    SKU:
    TIM BWC26-CP-1/4X1/4
    UPC:
    UPC 0685144769442
    Weight:
    0.05 LBS
    Series:
    BWC-26
    Shaft diameter:
    1/4 x 1/4"
    Material:
    Aluminum & stainless steel
    Keyway size:
    No keyway
    Coupling type:
    Bellows clamp coupler
    Adding to cart… category.add_cart_announcement

    Product Description

  • The BWC (Bellows Clamp) Series coupling provides a new range of coupling options with the high torsional stiffness. The higher torsional stiffness provides the benefit of accuracy and repeatability in motion control applications. The BWC series coupling features aluminum hubs and corrosion resistant steel bellow.
  • The compact design also offers the benefit of low inertia. The BWC Series also has a torque capacity of up to 89 in-lbs, with a maximum bore capacity of .748 inches in diameter. The BWC utilizes clamping style hubs that provide easy installation and removal of the coupling. The bellows design also offers up to .016 inches of axial misalignment, with low reactionary loading on bearings.
  • High torsional stiffness
  • Low reactionary loading
  • No maintenance required
  • Low inertia
  • Nominal torque, torsional stiffness, weight and moment of inertia are based on minimum bore size.

  • Timken’s Quick Flex® Elastomeric Coupling Configurator helps you quickly size Quick Flex coupling solutions for common applications.
  • By entering motor power (HP or kW), speed (rpm), and service factors, the configurator presents available Quick Flex coupling options, supporting faster selection and quoting.
  • Access the Quick Flex® Coupling Configurator to speed up your next coupling selection.

    adobepdficon.png Timken Lovejoy Master Catalog

    adobepdficon.png BWC & BWLC Instructions

    • Product Videos

    Custom Field

    Series BWC-26
    Shaft diameter 1/4 x 1/4"
    Material Aluminum & stainless steel
    Keyway size No keyway
    Coupling type Bellows clamp coupler
