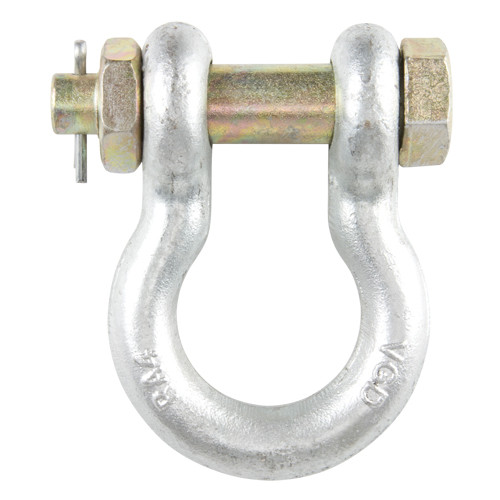

1/4" Golden Pin® Bolt Anchor Shackle 2914 0016

Vanguard

$2.80

(No reviews yet) Write a Review

Meets the performance requirements of U.S. Fed. Spec. RR-C-271D, Type 4A, Grade A, Class 3

Heat treated carbon steel bows, quenched and tempered with alloy pins

Hot dipped galvanized

Metallic coating of shackle pins allows for closer thread tolerances than possible for shackles with an extra layer of paint

Recommended for long term service installation as well as for applications where there is the possibility that the pin can rotate under load

Design factor 6:1

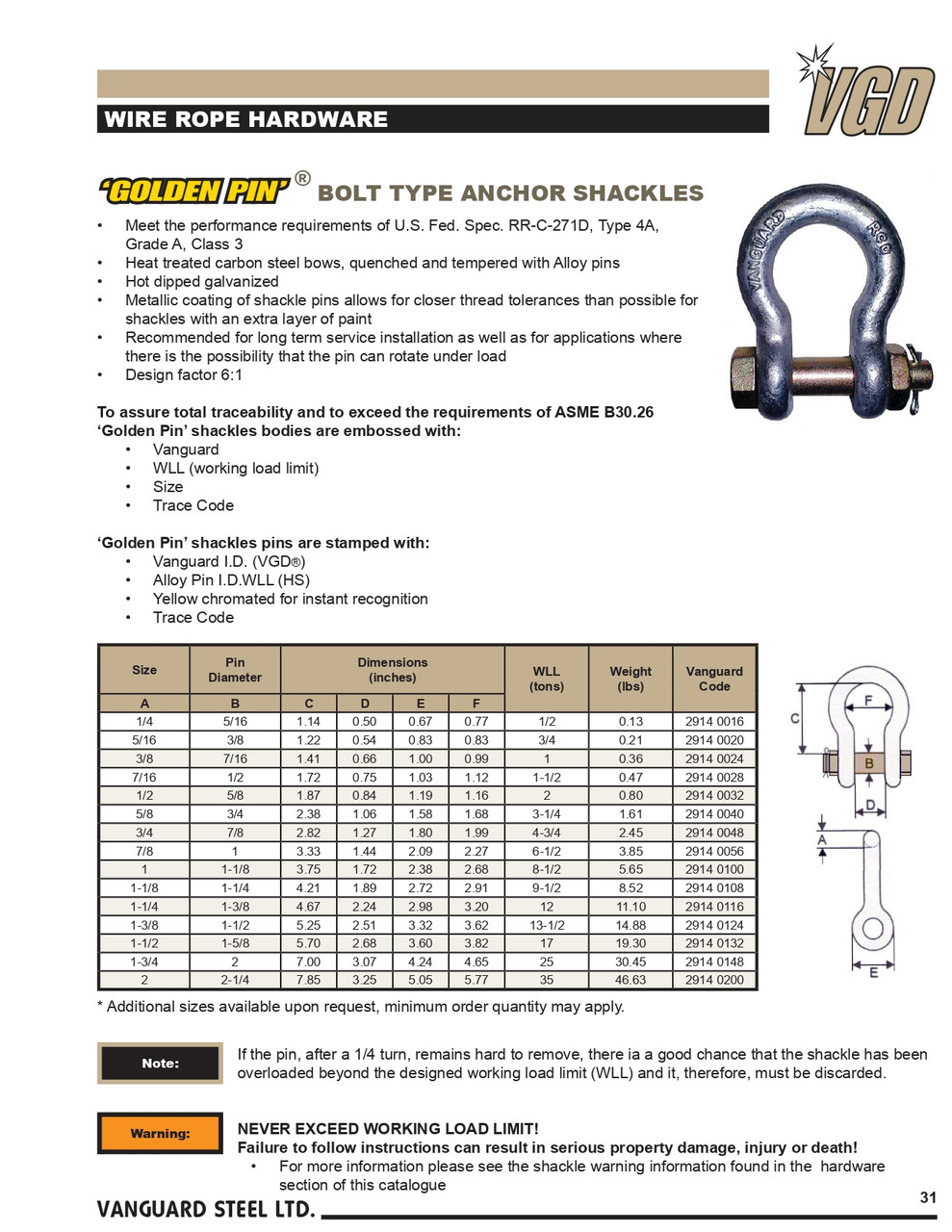

Vanguard Catalog

Diameter 1/4"

Working load limit 1/2 Ton
