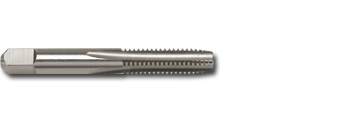

  • 1/4"-20 BSW HSS Warwick® Hand Tap Set TA37081
  • 1/4"-20 BSW HSS Warwick® Hand Tap Set TA37081
  • 1/4"-20 BSW HSS Warwick® Hand Tap Set TA37081

    • 1/4"-20 BSW HSS Warwick® Hand Tap Set TA37081

    Clarkson-Osborn

    $47.42
    (No reviews yet) Write a Review
    SKU:
    CLK TA37081
    Weight:
    0.00 LBS
    Size:
    1/4"-20 BSW
    Flute length:
    19mm
    Overall length:
    66mm
    Set includes:
    Taper, Plug, Bottoming
    Adding to cart… category.add_cart_announcement

    Product Description

  • Premium HSS hand tap
  • Ground thread
  • Bright finish
  • BSW (British Standard Whitworth) is similar to UNC but differs in that the thread form for a BSW is 55° vs. the 60° for UNC
  • Available in taper (7 - 10 thread chamfer), plug (3 - 5 thread chamfer), and bottoming chamfer (1 - 2 thread chamfer)
  • The set part number includes one each of taper, plug, and bottoming chamfers
  • Designed for hand tapping in wide variety of materials in both through hole and blind hole applications

    adobepdficon.png Clarkson Osborn Catalog

    • Product Videos

    Custom Field

    Size 1/4"-20 BSW
    Flute length 19mm
    Overall length 66mm
    Set includes Taper, Plug, Bottoming
