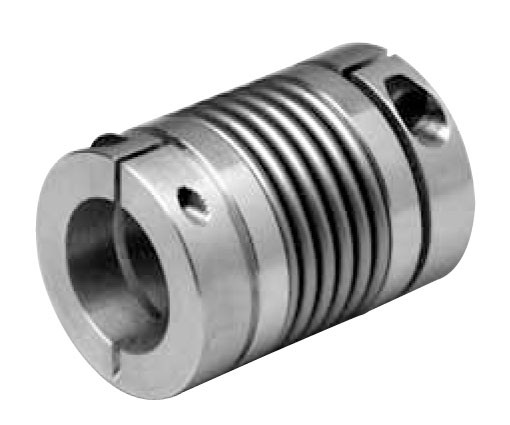

  • 1-3/8 x 1-3/8" Shaft Lovejoy® BWLC-91 Bellows Clamp Coupling BWLC91-CP-1-3/8X1-3/8
  • 1-3/8 x 1-3/8" Shaft Lovejoy® BWLC-91 Bellows Clamp Coupling BWLC91-CP-1-3/8X1-3/8
  • 1-3/8 x 1-3/8" Shaft Lovejoy® BWLC-91 Bellows Clamp Coupling BWLC91-CP-1-3/8X1-3/8
  • 1-3/8 x 1-3/8" Shaft Lovejoy® BWLC-91 Bellows Clamp Coupling BWLC91-CP-1-3/8X1-3/8

    • 1-3/8 x 1-3/8" Shaft Lovejoy® BWLC-91 Bellows Clamp Coupling BWLC91-CP-1-3/8X1-3/8

    Timken

    $1,904.89
    (No reviews yet) Write a Review
    SKU:
    TIM BWLC91-CP-1-3/8X1-3/8
    UPC:
    UPC 0685144769787
    Weight:
    5.07 LBS
    Series:
    BWLC-91
    Shaft diameter:
    1-3/8 x 1-3/8"
    Material:
    Aluminum & stainless steel
    Keyway size:
    No keyway
    Coupling type:
    Bellows clamp coupler
    Adding to cart… category.add_cart_announcement

    Product Description

  • The BWLC (Bellows Clamp) Series coupling specifically addresses higher torque and bore capacities in the area of motion control. The BWLC Series offers the highest amount of torsional stiffness for accuracy and repeatability. The BWLC Series coupling features a corrosion resistant steel bellow and aluminum or steel hubs.
  • The BWLC Series also has a torque capacity of up to 1,328 in-lbs, with a maximum bore capacity of 1.574 inches in diameter. The larger size of the BWLC allows for a greater amount of axial misalignment of .020 inches, with low reactionary loading on bearings.
  • Highest torsional stiffness
  • Low reactionary loading
  • No maintenance required
  • Low inertia
  • Nominal torque, torsional stiffness, weight and moment of inertia are based on minimum bore size.
  • Various hub diameters available to accommodate different size bore diameters.

  • Timken’s Quick Flex® Elastomeric Coupling Configurator helps you quickly size Quick Flex coupling solutions for common applications.
  • By entering motor power (HP or kW), speed (rpm), and service factors, the configurator presents available Quick Flex coupling options, supporting faster selection and quoting.
  • Access the Quick Flex® Coupling Configurator to speed up your next coupling selection.

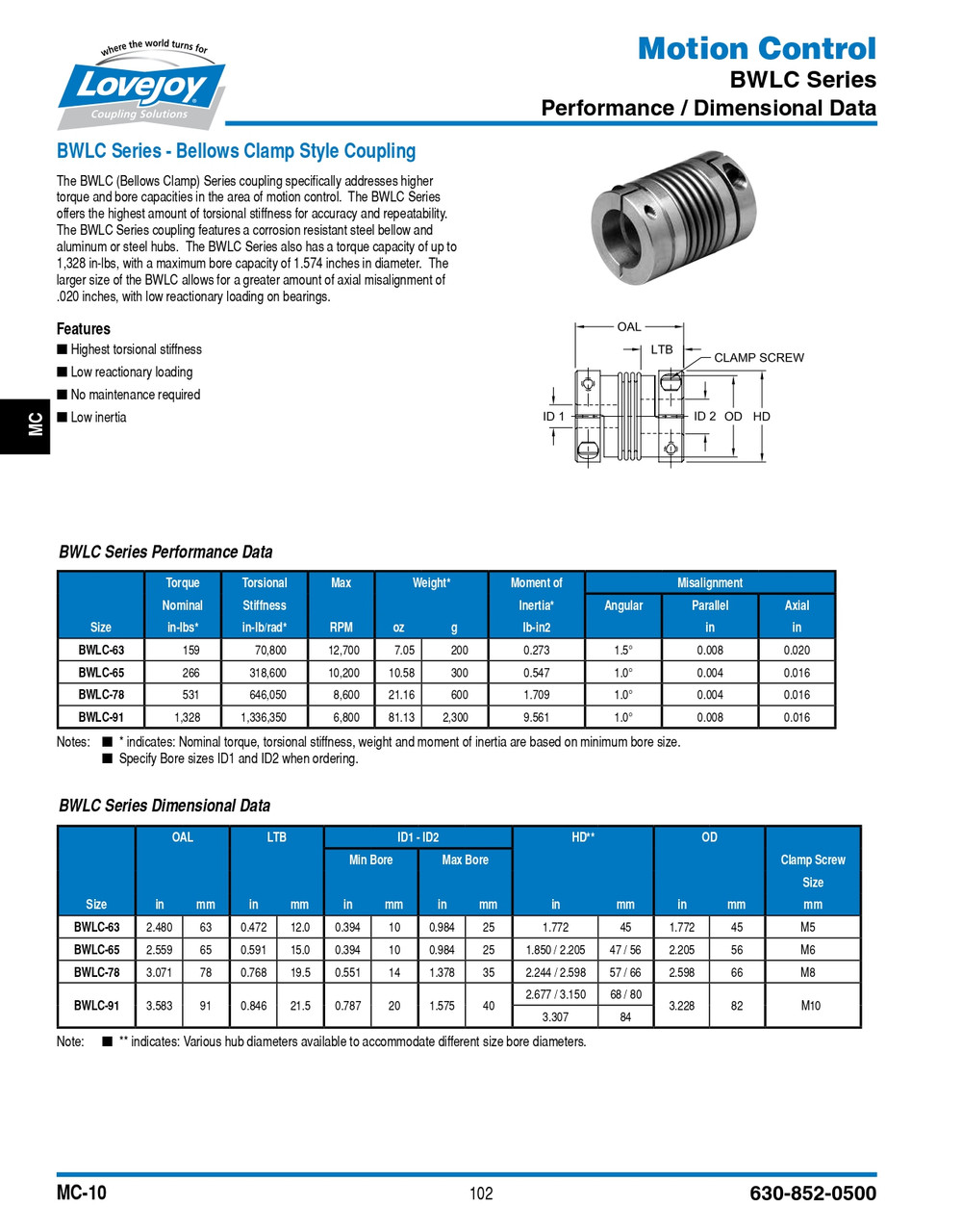

    adobepdficon.png Timken Lovejoy Master Catalog

    adobepdficon.png BWC & BWLC Instructions

    • Product Videos

    Custom Field

    Series BWLC-91
    Shaft diameter 1-3/8 x 1-3/8"
    Material Aluminum & stainless steel
    Keyway size No keyway
    Coupling type Bellows clamp coupler
