  • 1-3/4" Shaft Lovejoy® Series 1050 Grid Coupling Half 1050-HUB-1-3/4-3/8X3/16KW
  • 1-3/4" Shaft Lovejoy® Series 1050 Grid Coupling Half 1050-HUB-1-3/4-3/8X3/16KW
  • 1-3/4" Shaft Lovejoy® Series 1050 Grid Coupling Half 1050-HUB-1-3/4-3/8X3/16KW
  • 1-3/4" Shaft Lovejoy® Series 1050 Grid Coupling Half 1050-HUB-1-3/4-3/8X3/16KW
  • 1-3/4" Shaft Lovejoy® Series 1050 Grid Coupling Half 1050-HUB-1-3/4-3/8X3/16KW
  • 1-3/4" Shaft Lovejoy® Series 1050 Grid Coupling Half 1050-HUB-1-3/4-3/8X3/16KW
  • 1-3/4" Shaft Lovejoy® Series 1050 Grid Coupling Half 1050-HUB-1-3/4-3/8X3/16KW
  • 1-3/4" Shaft Lovejoy® Series 1050 Grid Coupling Half 1050-HUB-1-3/4-3/8X3/16KW

    • 1-3/4" Shaft Lovejoy® Series 1050 Grid Coupling Half 1050-HUB-1-3/4-3/8X3/16KW

    Timken

    $212.18
    (No reviews yet) Write a Review
    SKU:
    TIM 1050-HUB-1-3/4-3/8X3/16KW
    UPC:
    UPC 0697904054835
    Weight:
    3.00 LBS
    Series:
    1050
    Shaft diameter:
    1-3/4"
    Keyway size:
    3/8 x 3/16"
    Coupling type:
    Grid coupler
    Adding to cart… category.add_cart_announcement

    Product Description

  • Lovejoy is pleased to be able to provide quality grid couplings covering a large number of industry standard sizes and lengths.
  • The Lovejoy grid style coupling has proven itself in performance and popularity over a wide range of applications.
  • Lovejoy's grid style coupling design has demonstrated its ability to dampen vibration by as much as 30% and can cushion shock loads that could cause damage to both the driving and driven equipment.
  • The tapered grid spring design absorbs impact energy by spreading the energy out over the full length of the grid spring thus reducing the magnitude of the torque spikes.
  • The Lovejoy design uses a curved hub tooth profile which creates a progressive contact with the flexible grid spring as the application torque increases.
  • This feature provides a more effective and efficient transmission of power in properly aligned couplings.
  • Lovejoy's versatile design of industry standard hubs and grid springs for both horizontal and vertical cover styles allow Lovejoy couplings to be interchangeable with other industry standard grid couplings and components.
  • Proper grid coupling installation and maintenance can add to a longer coupling life.
  • Grid spring replacement is simple and can be performed at a fraction of the cost and time of a complete coupling.
  • The Lovejoy grid coupling is an ideal coupling for applications where excellent performance is desired and additional requirements for vibration dampening may exist.
  • The Horizontal Split Cover design is recommended in applications where there may be some constraints on the diameter of the coupling.
  • The vertical design is recommended for applications where higher speed is one of the requirements.
  • Designed for ease of maintenance and grid spring replacement
  • High tensile grid springs ensure superior coupling performance and longer coupling life
  • Split covers allow for easy access to grid springs
  • Interchangeable with industry standard grid couplings

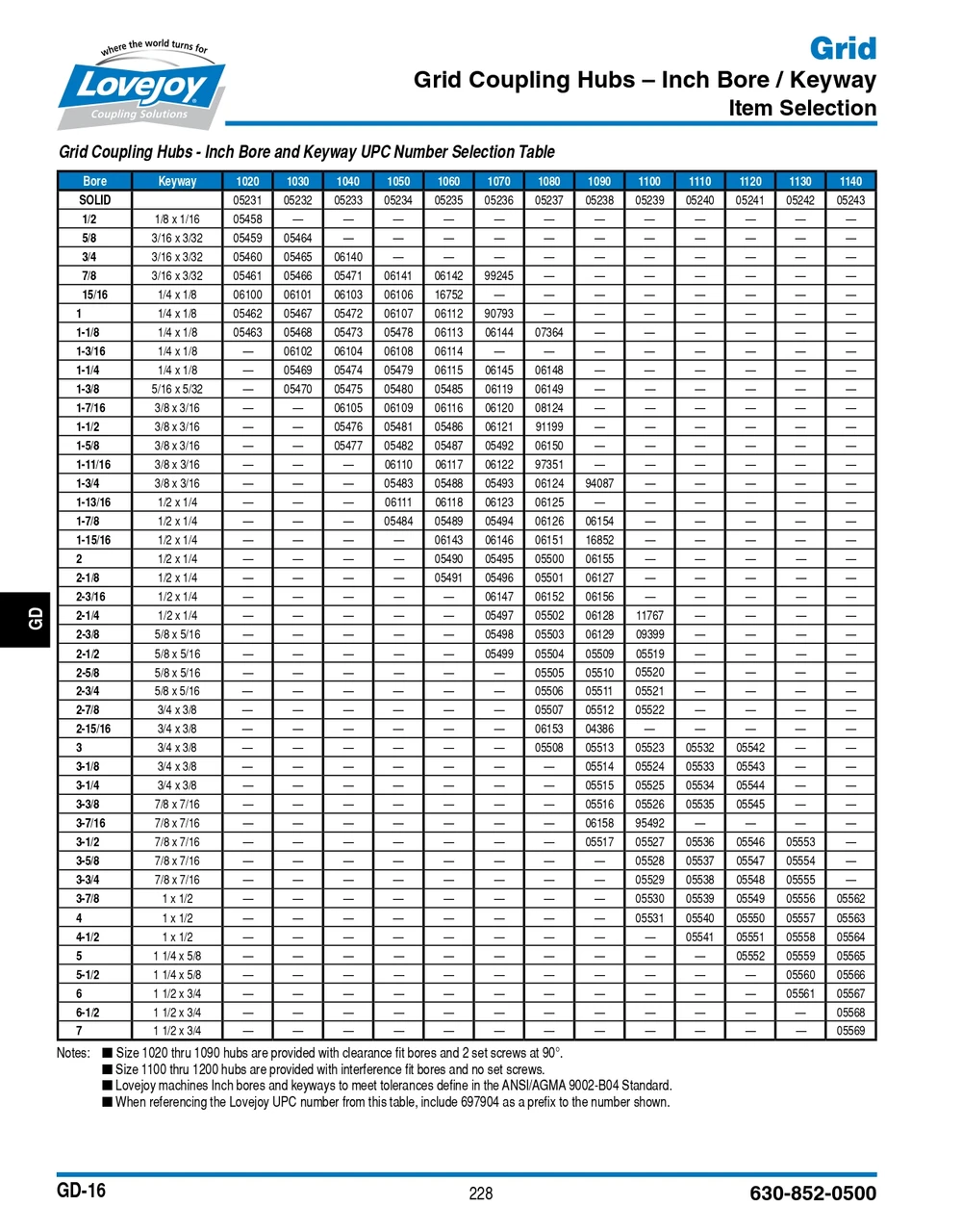

    adobepdficon.png Timken Lovejoy Master Catalog

    adobepdficon.png Grid Horizontal & Vertical Coupling Installation Guide

    adobepdficon.png Grid Half Spacer Coupling Installation Guide

    adobepdficon.png Grid Full Spacer Coupling Installation Guide

    • Product Videos

    Custom Field

    Series 1050
    Shaft diameter 1-3/4"
    Keyway size 3/8 x 3/16"
    Coupling type Grid coupler
