Product Description

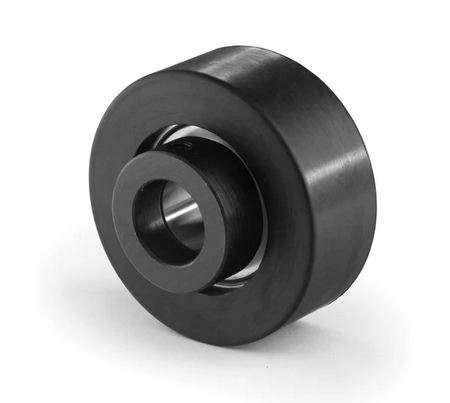

RCSM and RCR are quiet, synthetic, conductive-rubber cylindrical cartridges designed for domestic heating, air conditioning, ventilating equipment and other applications
that require noise-free operation
All units are available with the RA-RRB extended inner-ring bearings with positive-contact, land-riding seals and a self locking collar
An initial supply of grease is provided in the one-piece, non-relubricatable cartridges
The Timken Fafnir-patented CR unit was designed to accommodate the wide tolerances of hot or cold rolled #10-gage (0 134 in ), 3 1?2 in O D , electric resistance welded mechanical tubing, similar to what is found in post office conveyor systems

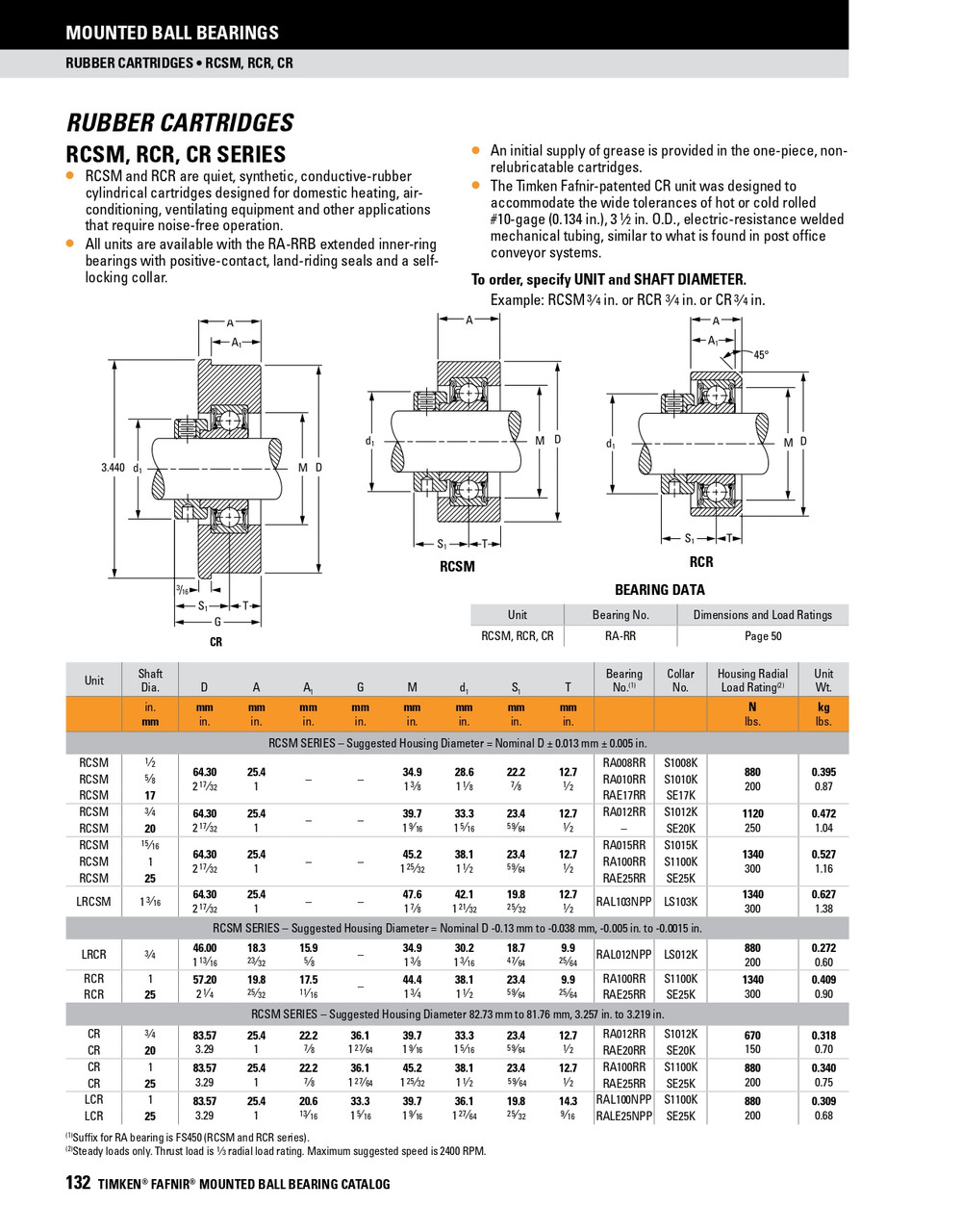

Timken Fafnir Mounted Ball Bearing Catalog
Timken Fafnir Competitive Interchange Chart
Custom Field
Bearing Type Deep groove ball bearing
Shaft profile Round
Bearing material Hardened steel
Outer diameter profile Cylindrical
Locking device Eccentric locking collar
