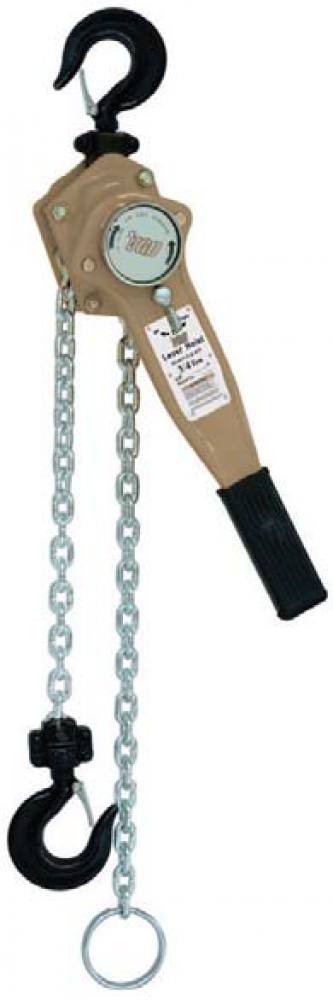

1/2T @ 5' Lift Super Duty VLHP Series Lever Chain Hoist 3855 0505E

Compact design

Light weight robust construction

Fully machined lifting wheels

Optimal gear ratio

Closed sealed bearings

Extra heavy double pawl braking mechanism

Extra thick friction discs (asbestos free)

Grade 80 alloy load chain fully complies with EN818-7 Grade T(8)

Steel handles with rubber hand grip providing greater operator comfort and control

Self-articulating top hooks

Extra large forged alloy top and bottom hooks (with cast latches) rotate 360°

Top and bottom hooks are designed to stretch when overloaded before chain failure

Each hoist is proof tested at 1.5 times the rated capacity, certificate provided with each hoist

All units except 1/4T come with overload protection installed

Durable baked enamel paint protection

Meet ASME B30.21 safety standards

ISO 9001 - 2001 certified factory

Custom length units available upon request

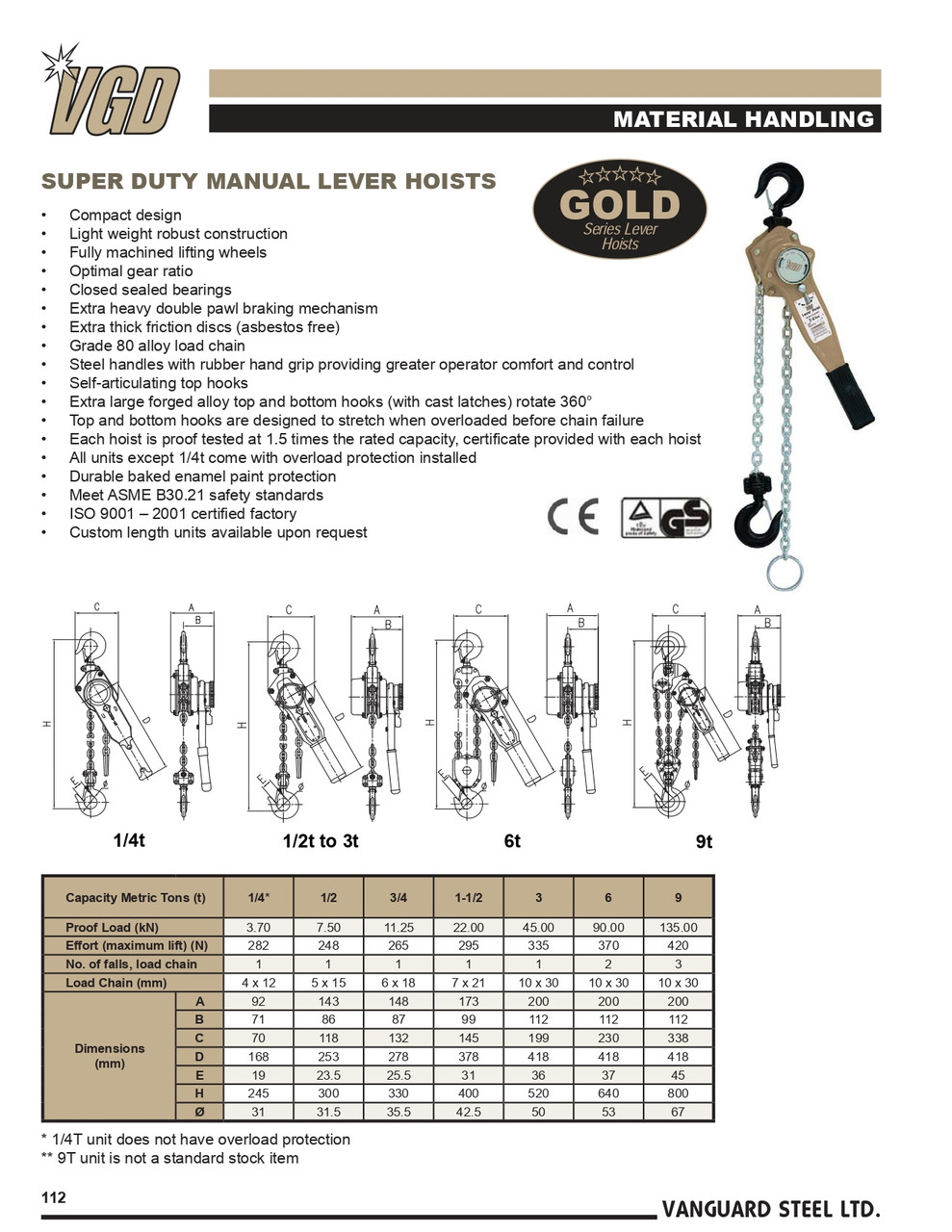

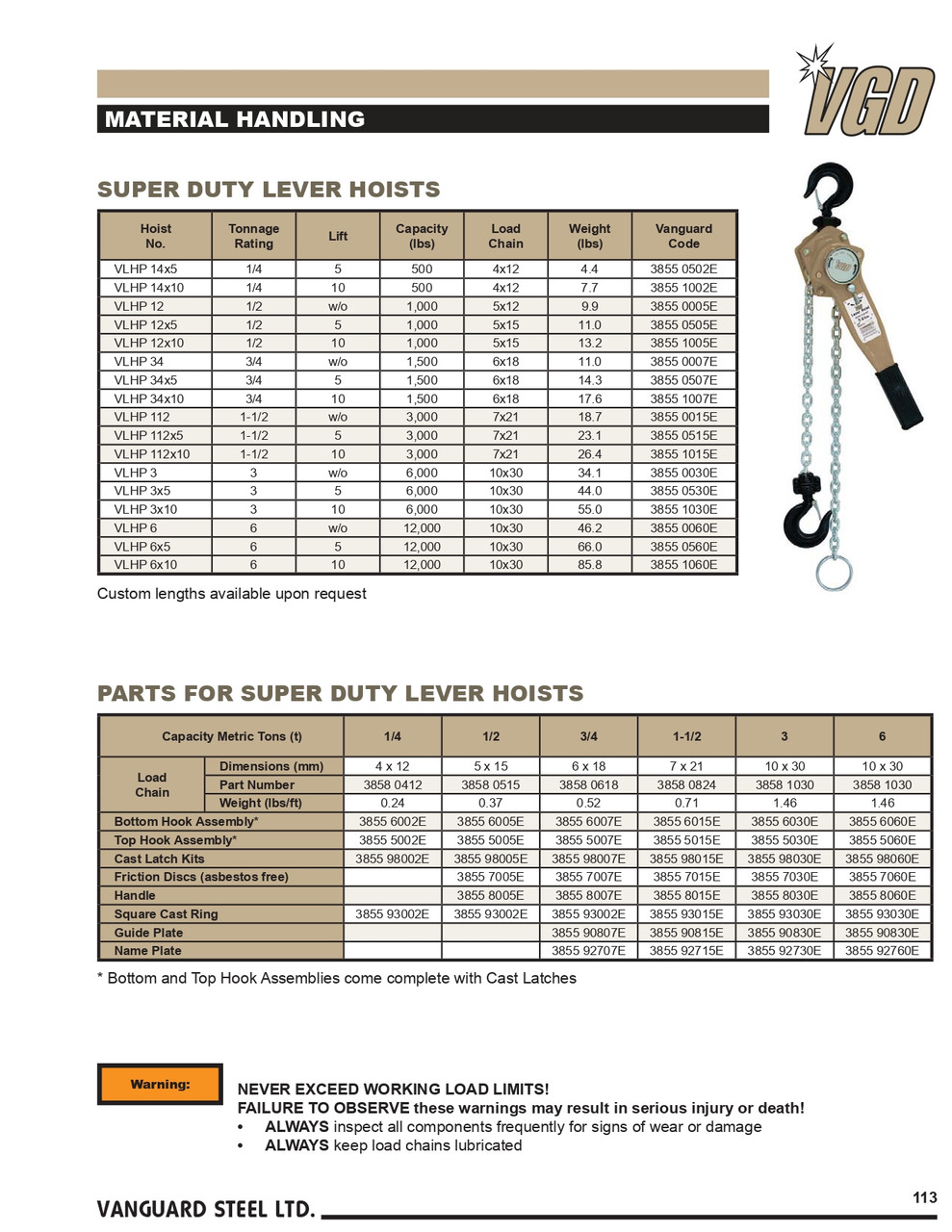

Vanguard Catalog

Working load limit 1/2T

Lift (ft) 5'
