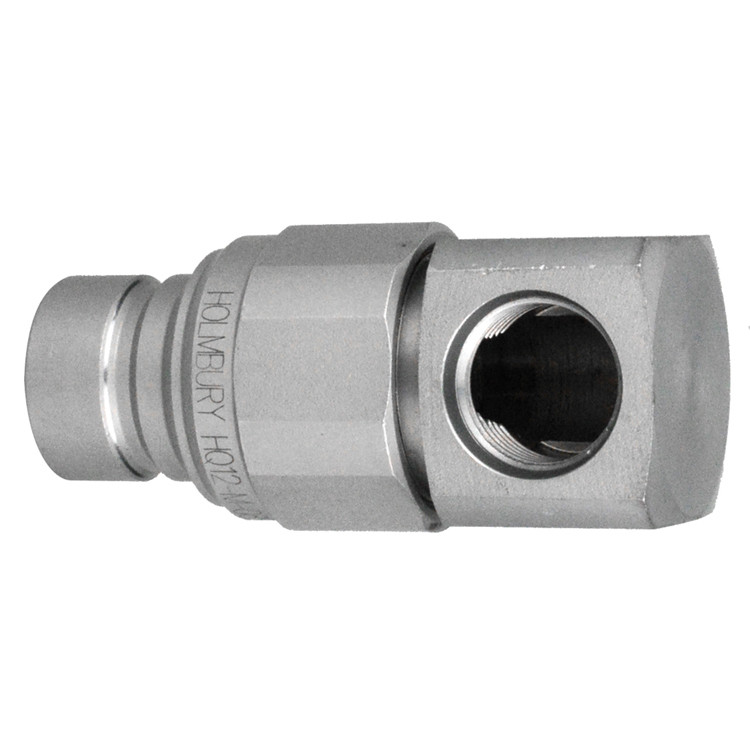

  • 1/2 X 3/4"-16 Series C700 Flush Face 90° Nipple - Female ORB C704FB90-08-08
  • 1/2 X 3/4"-16 Series C700 Flush Face 90° Nipple - Female ORB C704FB90-08-08
  • 1/2 X 3/4"-16 Series C700 Flush Face 90° Nipple - Female ORB C704FB90-08-08

    • 1/2 X 3/4"-16 Series C700 Flush Face 90° Nipple - Female ORB C704FB90-08-08

    Greenline

    $67.78
    (No reviews yet) Write a Review
    SKU:
    GRN C704FB90-08-08
    UPC:
    UPC 8829741078503
    Weight:
    0.70 LBS
    Adding to cart… category.add_cart_announcement

    Product Description

  • 90° couplings allow for easy mounting without the need for additional fittings reducing any potential leakage paths as well as overall cost.
  • Popular on agriculture and construction equipment such as skid steer attachments, these carbon steel fittings are designed in accordance to ISO 16028 and will connect with C700 couplings.
  • C700 flush-face couplings were developed to handle dirty conditions in construction and maintenance applications. The flat faces on both coupler and nipple are easily wiped clean before connection, avoiding difficult connection and fluid contamination.
  • Other features include a built-in sleeve lock (by rotating the sleeve), single handed connection, non-spill design, excellent bidirectional flow performance, and an enhanced zinc-nickel plating for superior corrosion resistance.
  • Flush-Face couplings are most often seen on hydraulic jackhammers and emergency rescue equipment, but they are gaining in popularity in a variety of applications.
  • The 3/8" size conforms to HTMA (Hydraulic Tool Manufacturers Association) specifications.
  • C700 series couplings come standard with buna-N (Nitrile) seals and exceed ISO 16028 specifications.

    adobepdficon.png Greenline Industrial Fitting Catalog

    adobepdficon.png Greenline Quick Coupling Interchange Chart
