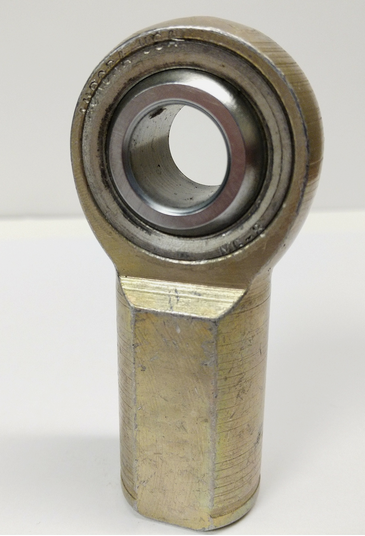

  • 1/2 x 1/2"-20 Female UNF Left Hand Rod End MG-8T
  • 1/2 x 1/2"-20 Female UNF Left Hand Rod End MG-8T
  • 1/2 x 1/2"-20 Female UNF Left Hand Rod End MG-8T
  • 1/2 x 1/2"-20 Female UNF Left Hand Rod End MG-8T

    • 1/2 x 1/2"-20 Female UNF Left Hand Rod End MG-8T

    Timken

    $61.18
    (No reviews yet) Write a Review
    SKU:
    TIM MG-8T
    Weight:
    0.50 LBS
    Thread type:
    Left hand
    Thread configuration:
    Female

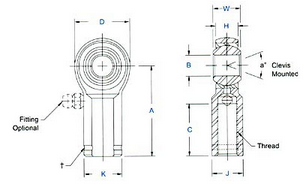

    Base to center (A):
    2.125"
    Ball bore (B):
    0.500"
    Thread depth (C):
    1.187"
    Head diameter (D):
    1.312"
    Head width (H):
    .500"
    Wrench flat width (J):
    .750"
    Shank diameter (K):
    .875"
    Ball width (W):
    .625"
    Ball diameter:
    .937"
    Thread size:
    1/2"-20
    Thread class:
    UNF-2B-LH
    Misalignment angle clevis mounted (a):
    12 º
    Ultimate radial static load capacity:
    6,660 lbs
    Options:
    Stud
    Type of Lubrication:
    None
    Adding to cart… category.add_cart_announcement

    Product Description

  • Body - Low carbon steel - protective coated for corrosion resistance.
  • Size 16 standard series body is alloy steel not heat treated.
  • Ball - Alloy steel - heat treated - hard chrome plated.
  • Race - Low carbon steel - protective coated for corrosion resistance.
  • Left-hand threaded units have an identification groove near end of shank.
  • Grease fitting available for sizes -3 and up.
  • Units are supplied without grease fittings.
  • When a grease fitting is required, specify by adding suffix "Z" or "F" (i.e. MW-6Z = zerk type fitting MW-6F = flush type fitting)
  • Load ratings apply only to rod ends without grease fittings. For load ratings with fittings, please consult our engineering department.
  • Studded configuration available upon request, specify by adding suffix "S" (i.e. MW-8S)
  • PTFE liners available upon request, specify by adding suffix "T" (i.e. MW-8T)

    adobepdficon.png Timken/Aurora Rod Ends Catalog

    • Product Videos

    Custom Field

    Thread type Left hand
    Thread configuration Female
    Base to center (A) 2.125"
    Ball bore (B) 0.500"
    Thread depth (C) 1.187"
    Head diameter (D) 1.312"
    Head width (H) .500"
    Wrench flat width (J) .750"
    Shank diameter (K) .875"
    Ball width (W) .625"
    Ball diameter .937"
    Thread size 1/2"-20
    Thread class UNF-2B-LH
    Misalignment angle clevis mounted (a) 12 º
    Ultimate radial static load capacity 6,660 lbs
    Options Stud
    Type of Lubrication None
