1-15/16" Heavy Duty Eccentric Locking Collar Pillow Block Assembly RSAO1 15/16

RSAO pillow blocks are equipped with GN-KRRB wide-inner-ring ball bearings

LSAO pillow blocks are equipped with GN-KLLB wide-inner-ring ball bearings

All units are suited for installations where the load is heavy in proportion to the shaft diameter or where considerable shock loads exist

All units are for use in wet or extremely dirty conditions

These units are prelubricated and ready for immediate use A grease fitting is also provided for relubrication if required

All units are supplied with a self-locking collar

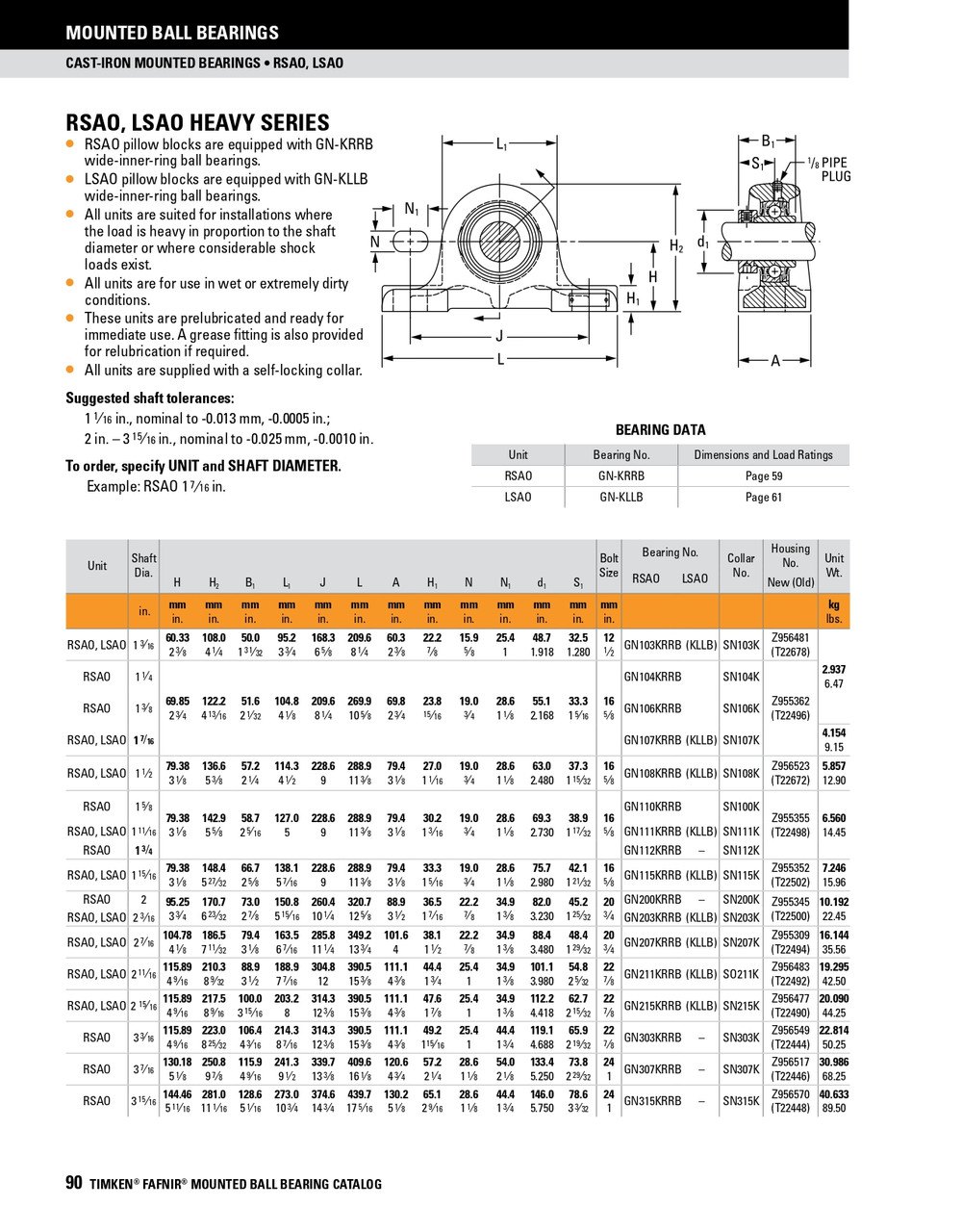

Timken Fafnir Mounted Ball Bearing Catalog

Timken Fafnir Competitive Interchange Chart

Bearing Type Deep groove ball bearing

Shaft profile Round

Bearing material Hardened steel

Housing material Cast iron

Outer diameter profile Spherical

Locking device Eccentric locking collar
