Product Description

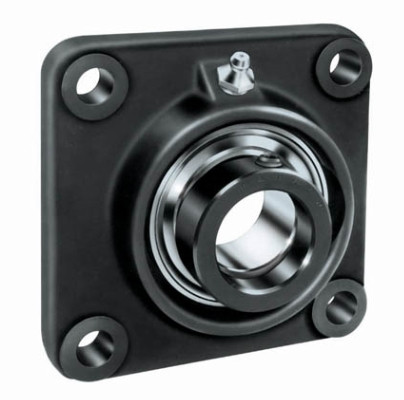

The flange cartridges come assembled and ready for mounting by using four bolts through the flange
The VCJ-series flange cartridges require minimal machining
The units are assembled with GRA-RRB bearings with positive-contact, land-riding seals and self locking collars
The units are factory-prelubricated, but a grease fitting is provided for relubrication if required
Safety end caps are available for selected sizes
Timken Fafnir Mounted Ball Bearing Catalog
Timken Fafnir Competitive Interchange Chart
Bearing Type
Bearing Type Deep groove ball bearing
Shaft profile Round
Bearing material Hardened steel
Housing material Cast iron
Outer diameter profile Spherical
Locking device Eccentric locking collar
