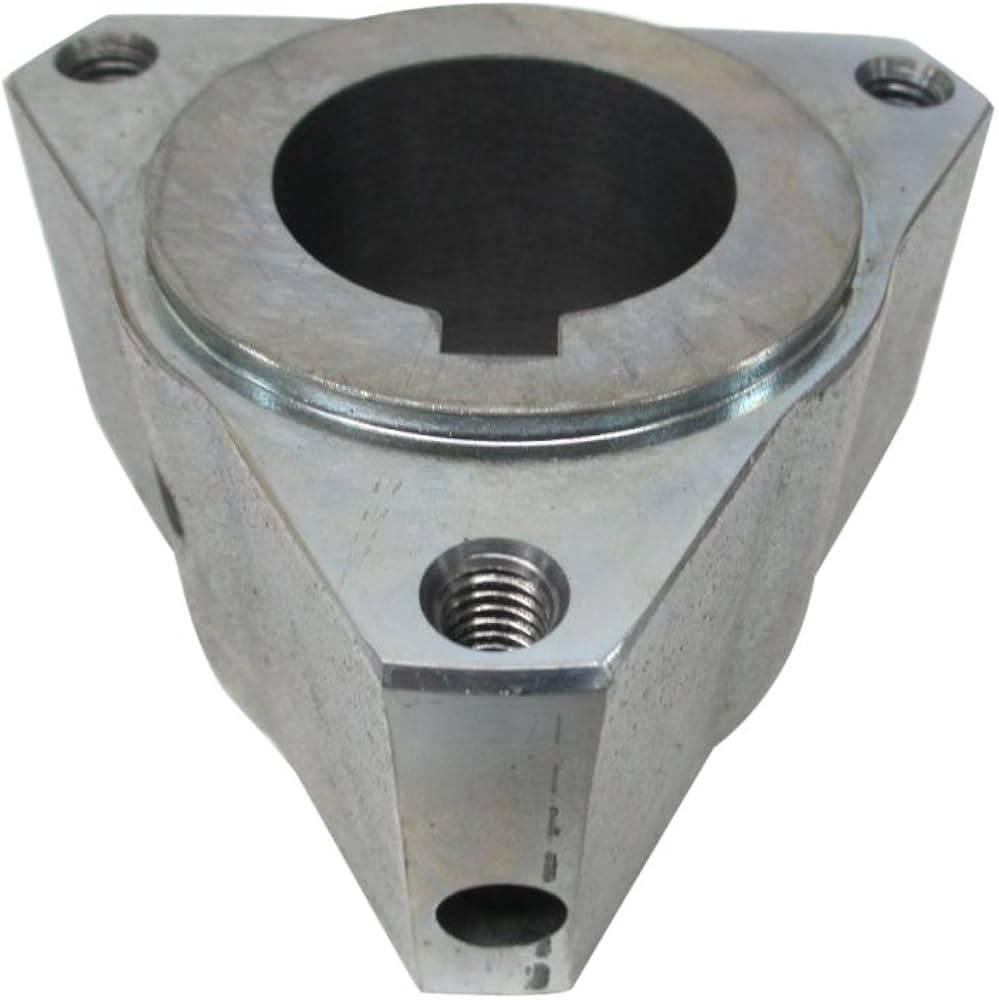

  • 1-1/8" Shaft Lovejoy® Deltaflex® Series 40 Delta Coupler Hub 40-DLT HUB-1-1/8-1/4X1/8KW
  • 1-1/8" Shaft Lovejoy® Deltaflex® Series 40 Delta Coupler Hub 40-DLT HUB-1-1/8-1/4X1/8KW
  • 1-1/8" Shaft Lovejoy® Deltaflex® Series 40 Delta Coupler Hub 40-DLT HUB-1-1/8-1/4X1/8KW
  • 1-1/8" Shaft Lovejoy® Deltaflex® Series 40 Delta Coupler Hub 40-DLT HUB-1-1/8-1/4X1/8KW
  • 1-1/8" Shaft Lovejoy® Deltaflex® Series 40 Delta Coupler Hub 40-DLT HUB-1-1/8-1/4X1/8KW
  • 1-1/8" Shaft Lovejoy® Deltaflex® Series 40 Delta Coupler Hub 40-DLT HUB-1-1/8-1/4X1/8KW
  • 1-1/8" Shaft Lovejoy® Deltaflex® Series 40 Delta Coupler Hub 40-DLT HUB-1-1/8-1/4X1/8KW
  • 1-1/8" Shaft Lovejoy® Deltaflex® Series 40 Delta Coupler Hub 40-DLT HUB-1-1/8-1/4X1/8KW
  • 1-1/8" Shaft Lovejoy® Deltaflex® Series 40 Delta Coupler Hub 40-DLT HUB-1-1/8-1/4X1/8KW
  • 1-1/8" Shaft Lovejoy® Deltaflex® Series 40 Delta Coupler Hub 40-DLT HUB-1-1/8-1/4X1/8KW
  • 1-1/8" Shaft Lovejoy® Deltaflex® Series 40 Delta Coupler Hub 40-DLT HUB-1-1/8-1/4X1/8KW
  • 1-1/8" Shaft Lovejoy® Deltaflex® Series 40 Delta Coupler Hub 40-DLT HUB-1-1/8-1/4X1/8KW

    • 1-1/8" Shaft Lovejoy® Deltaflex® Series 40 Delta Coupler Hub 40-DLT HUB-1-1/8-1/4X1/8KW

    Timken

    $437.86
    (No reviews yet) Write a Review
    SKU:
    TIM 40-DLT HUB-1-1/8-1/4X1/8KW
    UPC:
    UPC 0685144390066
    Weight:
    0.90 LBS
    Series:
    40
    Shaft diameter:
    1-1/8"
    Keyway size:
    1/4 x 1/8"
    Coupling type:
    Deltaflex coupler
    Adding to cart… category.add_cart_announcement

    Product Description

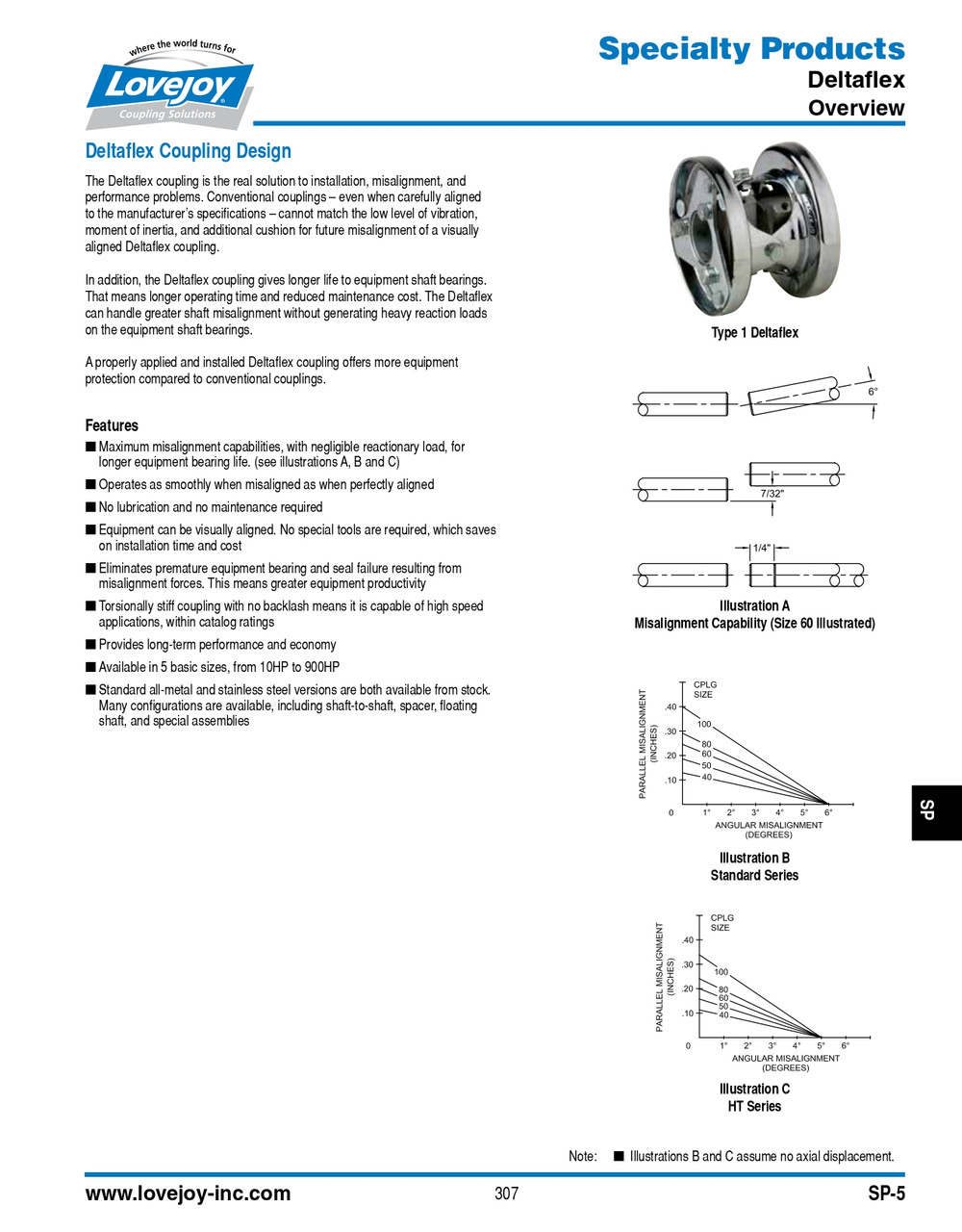

  • The patented Deltaflex series of couplings offer maximum misalignment capabilities with negligible reactionary load, for longer equipment life.
  • This all-metal flex-link coupling requires no lubrication or other maintenance.

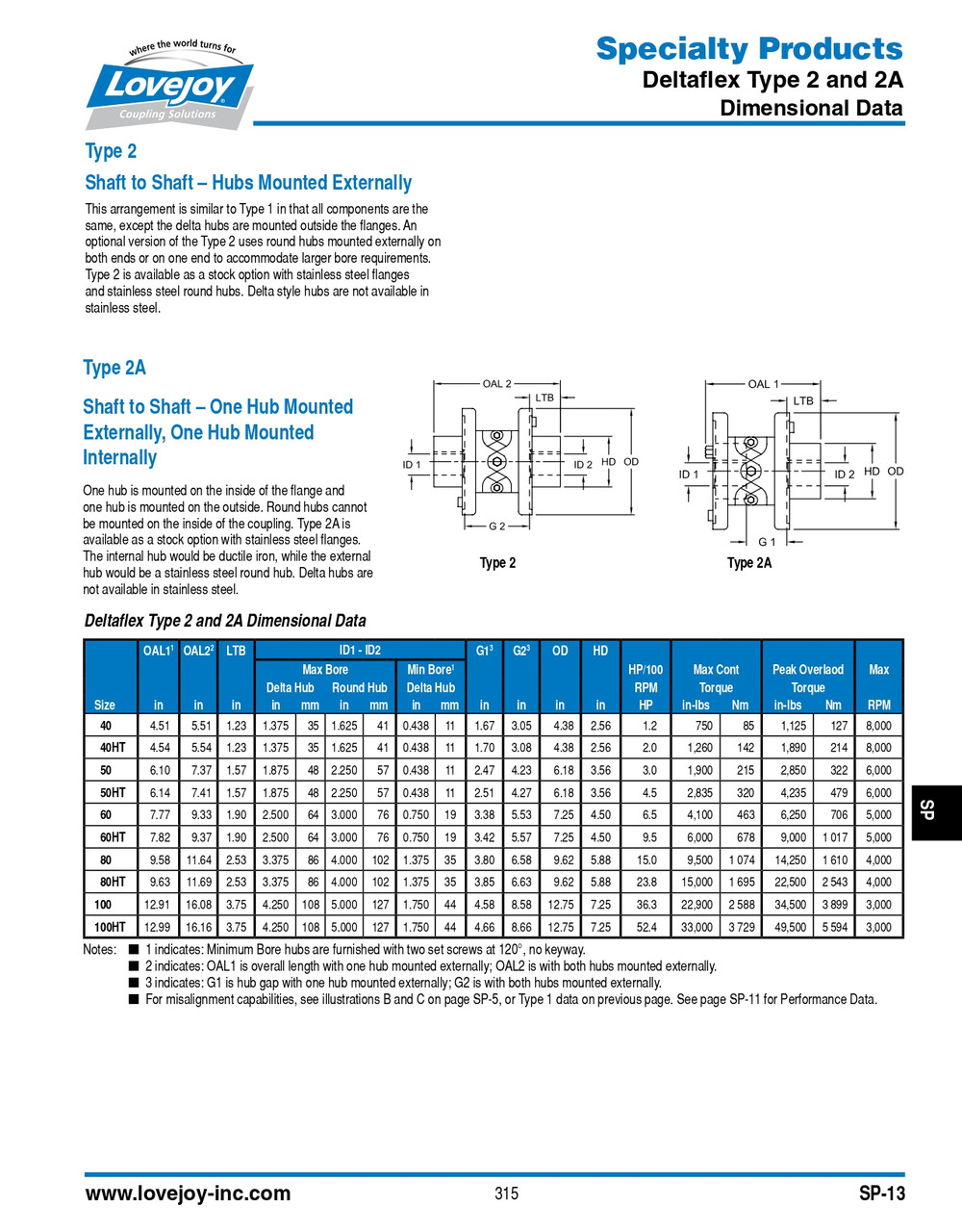

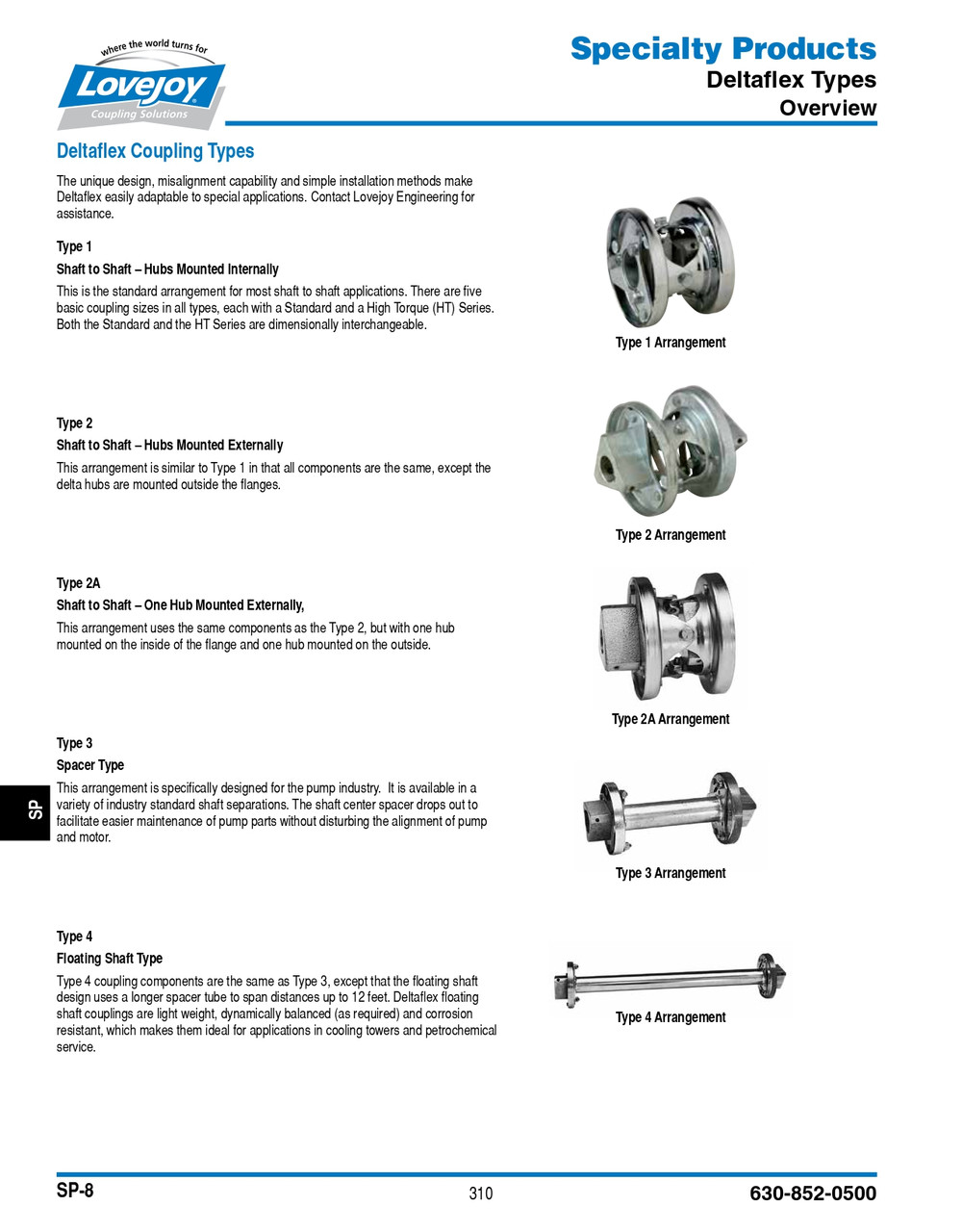

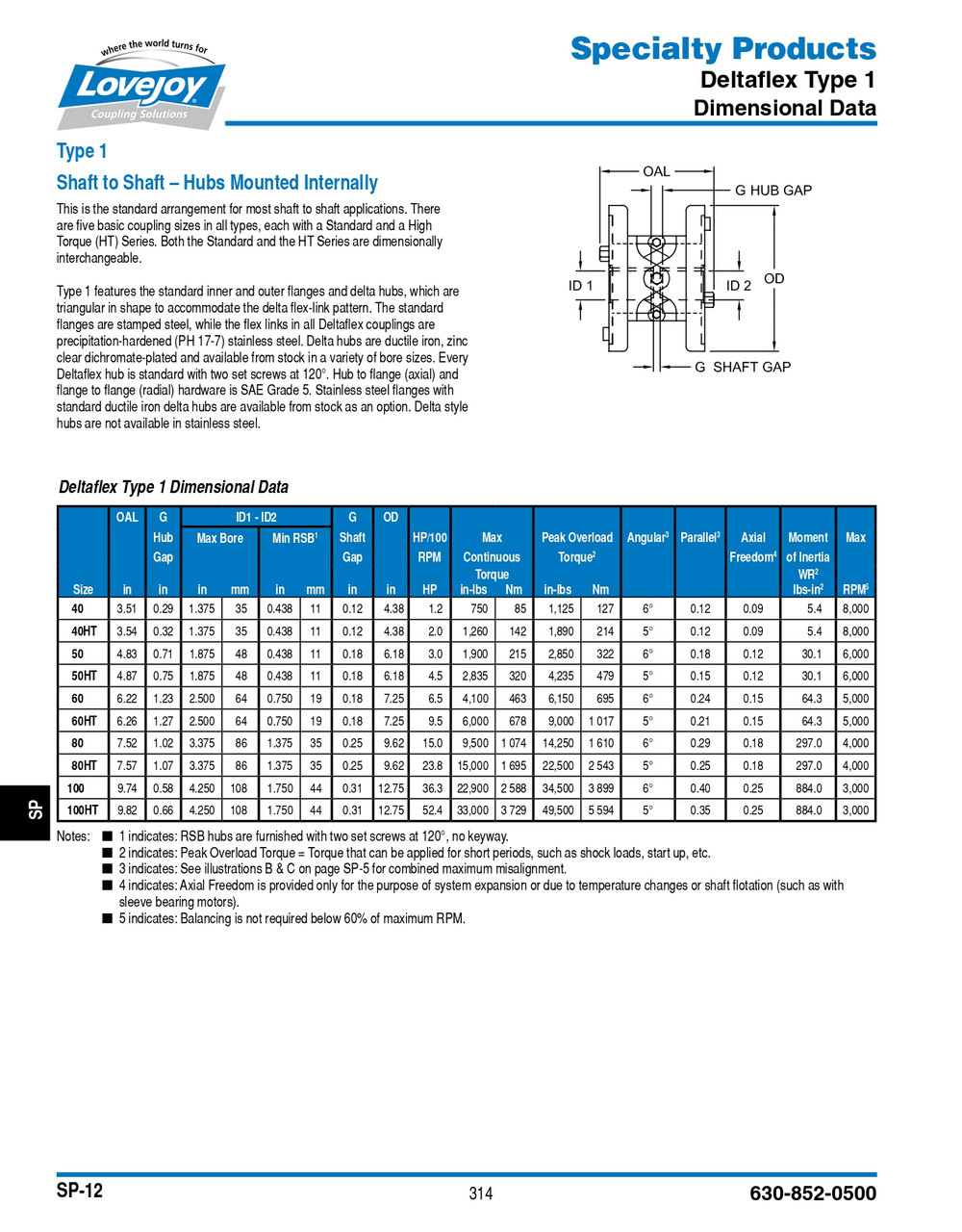

  • Standard (Type 1, 2, or 2A) Deltaflex coupling are comprised of two hubs, an inner flange (with hardware), and an outer flange.

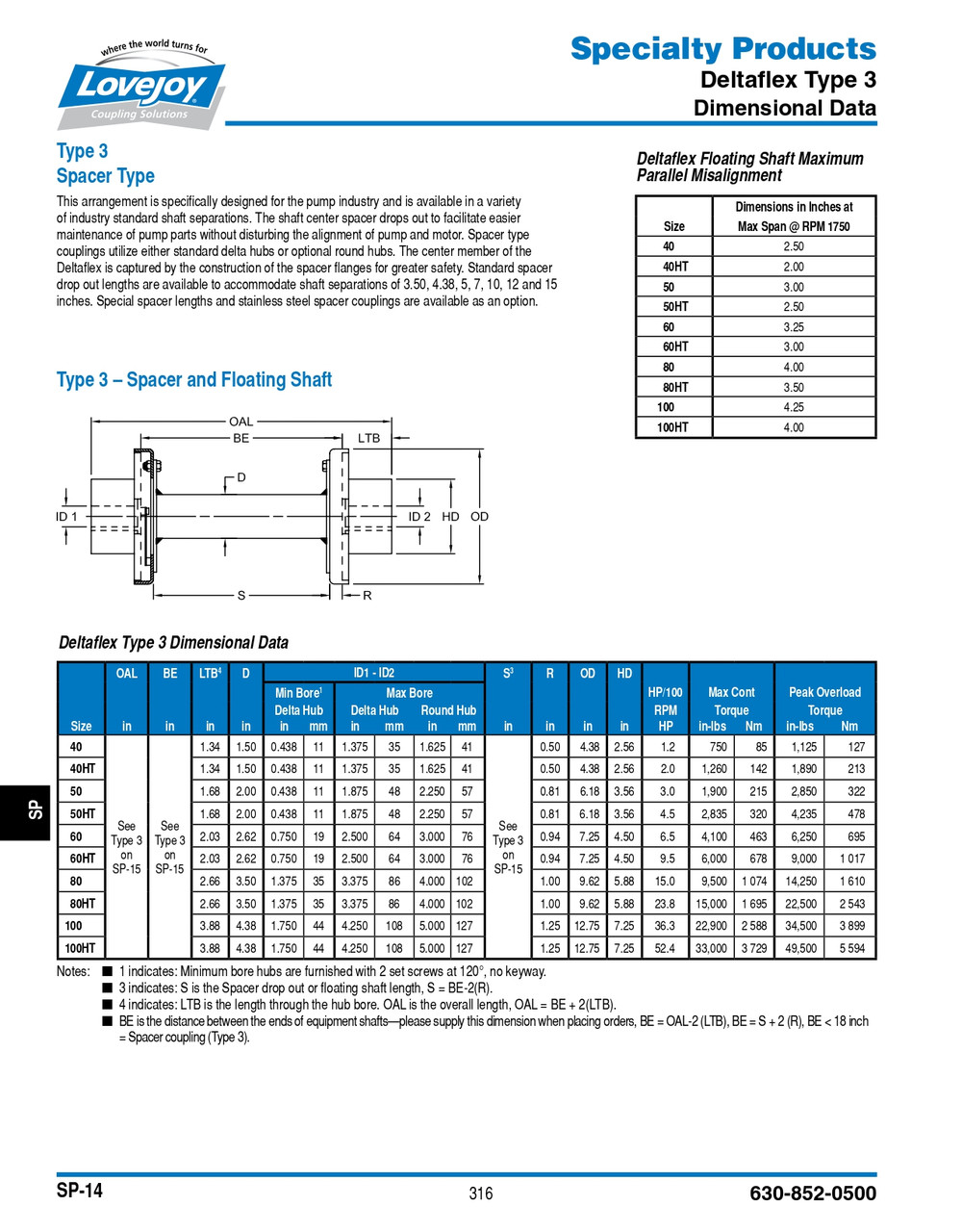

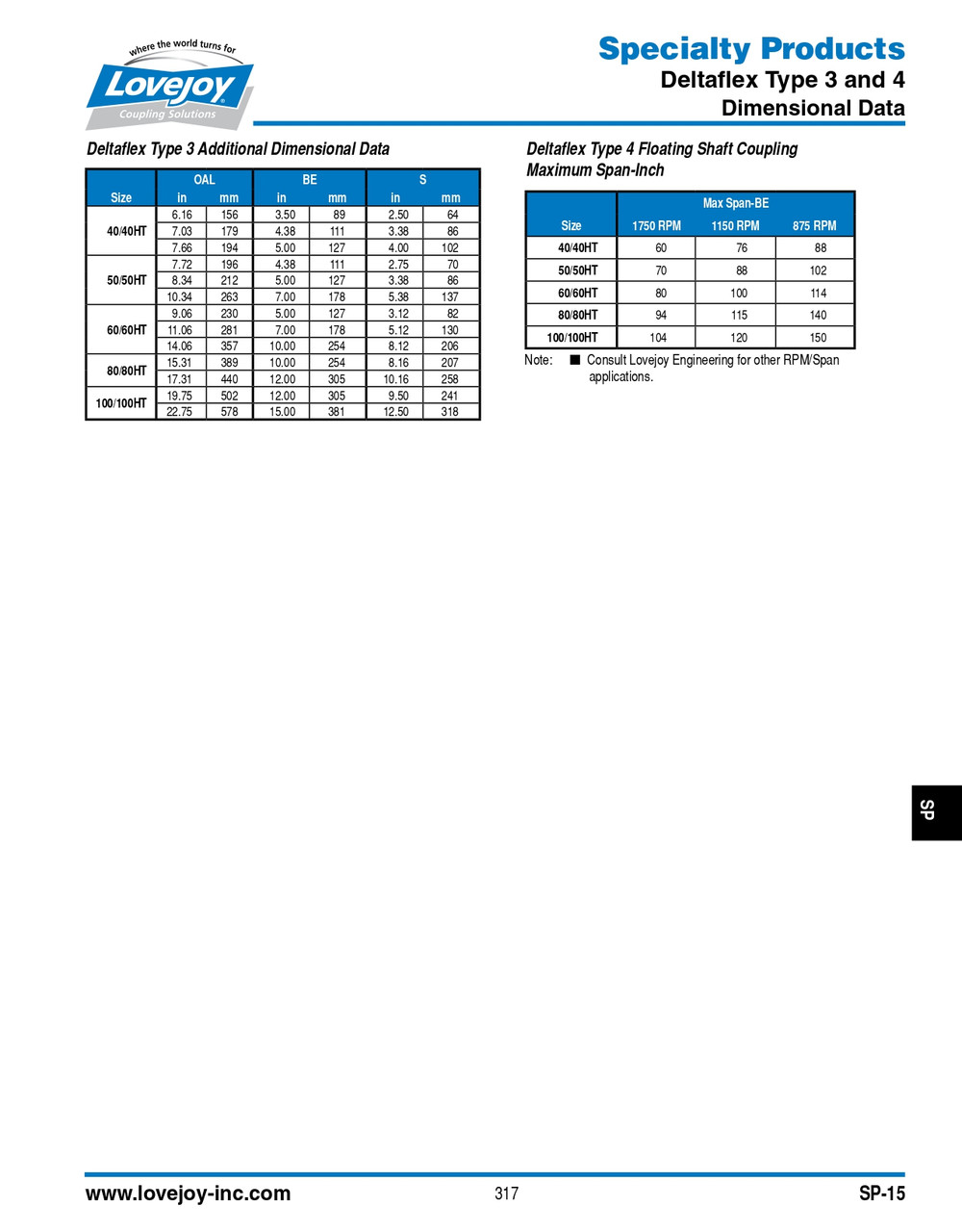

  • Spacer (Type 3 & 4) Deltaflex coupling are comprised of two hubs, two spacer flanges (with hardware), and a drop out spacer.

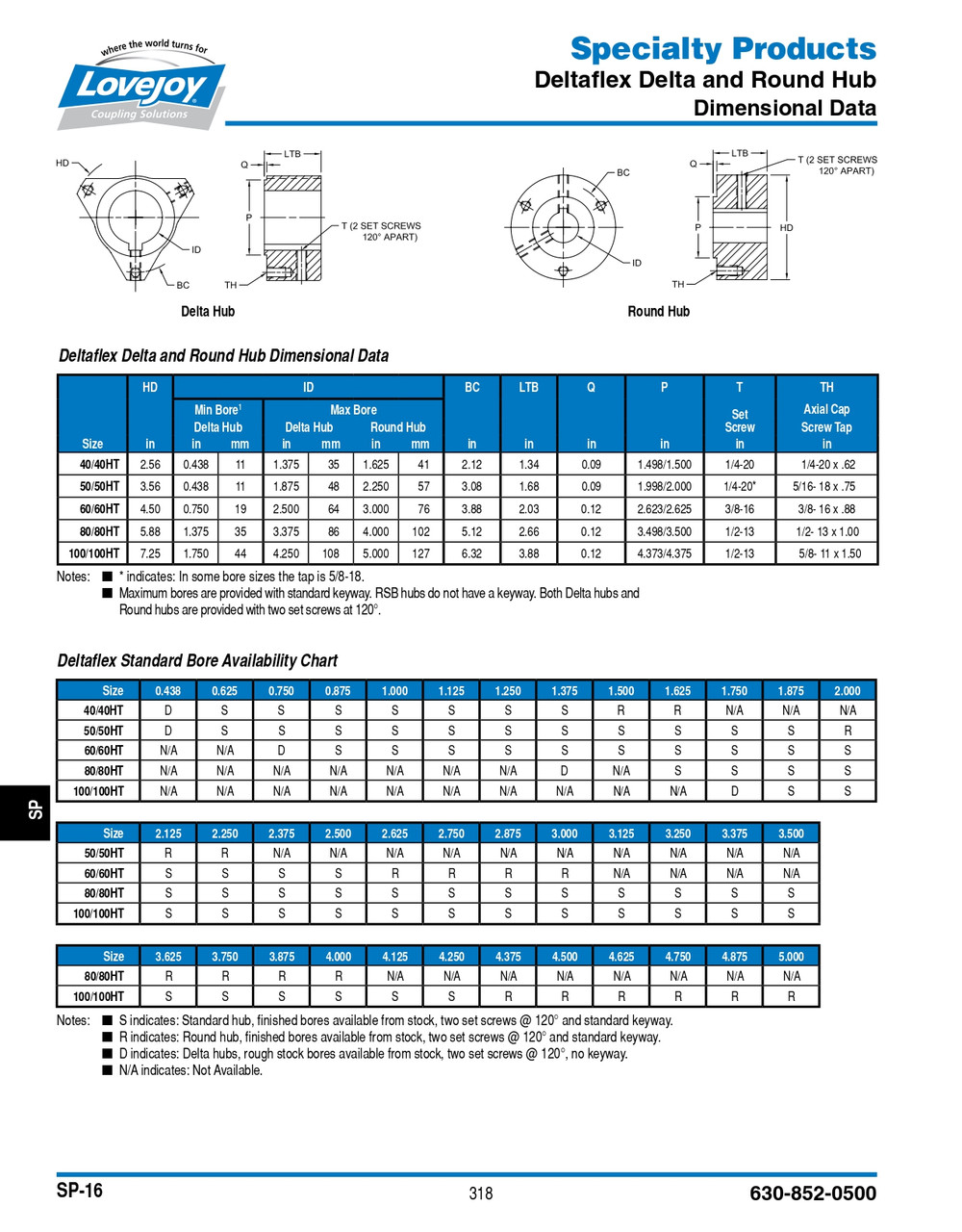

  • Unlike Delta hubs, Round hubs are available in stainless steel (SS).
  • Round hubs can also accommodate a larger max bore, but must always be mounted externally (no internal Type 1 mounting).
  • Standard Round hubs come with two set screws at 120°.

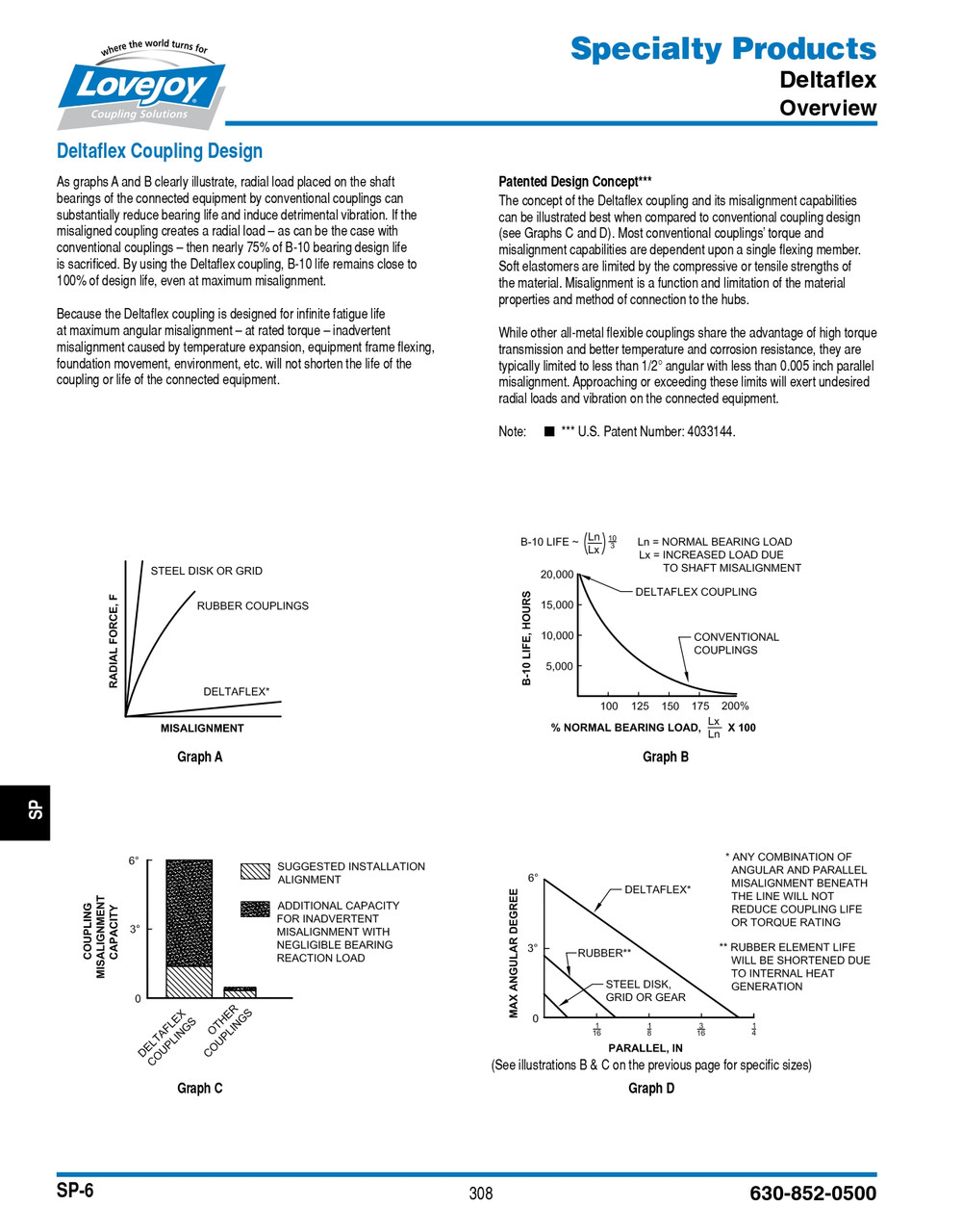

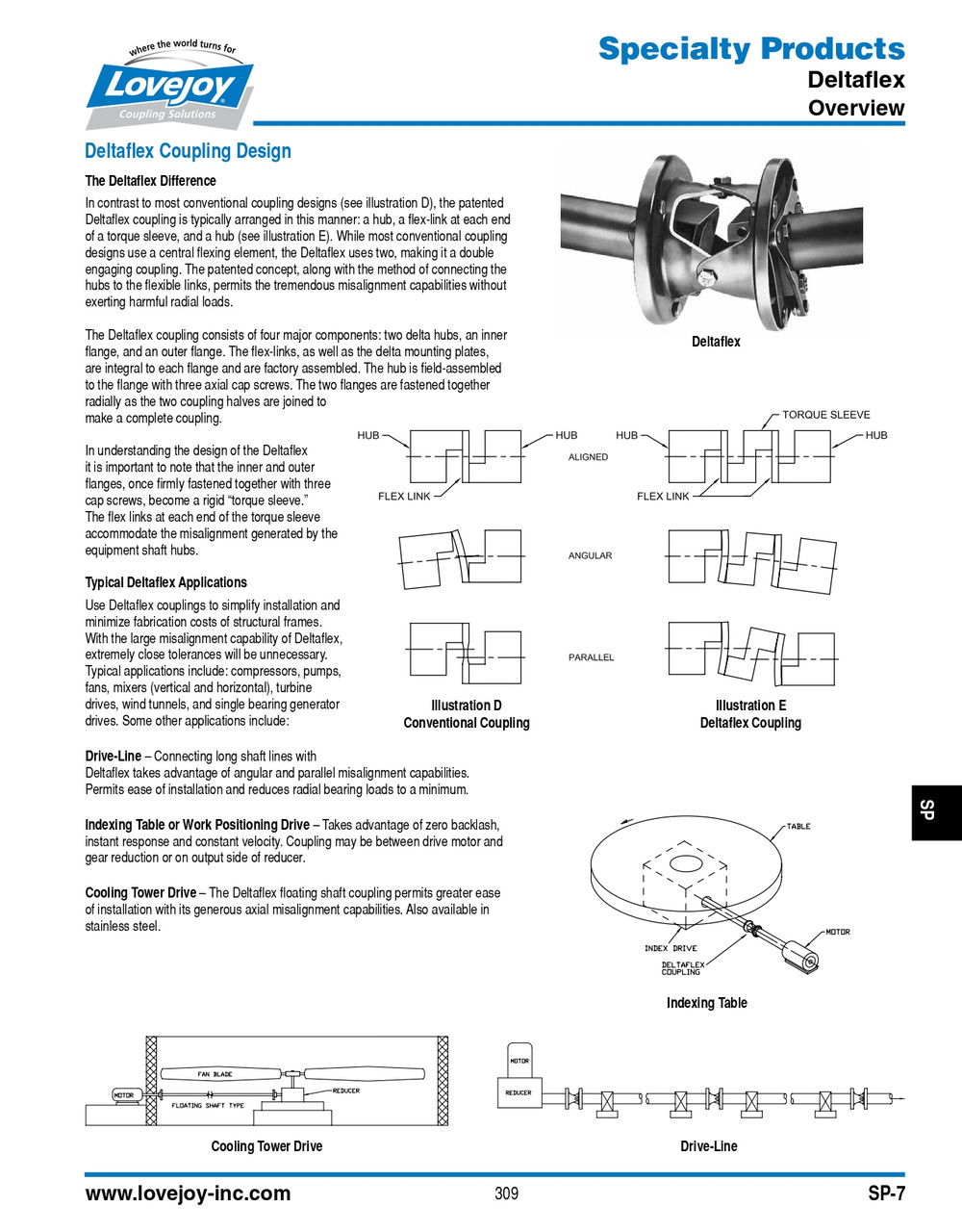

    adobepdficon.png Timken Lovejoy Master Catalog

    adobepdficon.png Deltaflex Coupling Installation Guide

    • Product Videos

    Custom Field

    Series 40
    Shaft diameter 1-1/8"
    Keyway size 1/4 x 1/8"
    Coupling type Deltaflex coupler
