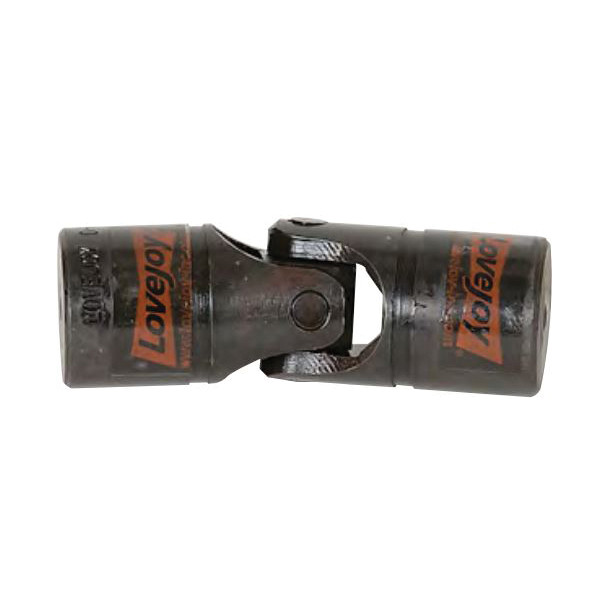

  • 1-1/4 x 1-1/4" Shaft HD-13B Series Lovejoy® Hardened Universal Joint HD13B-UJ-1-1/4X1-1/4-NKW NSS BE
  • 1-1/4 x 1-1/4" Shaft HD-13B Series Lovejoy® Hardened Universal Joint HD13B-UJ-1-1/4X1-1/4-NKW NSS BE
  • 1-1/4 x 1-1/4" Shaft HD-13B Series Lovejoy® Hardened Universal Joint HD13B-UJ-1-1/4X1-1/4-NKW NSS BE
  • 1-1/4 x 1-1/4" Shaft HD-13B Series Lovejoy® Hardened Universal Joint HD13B-UJ-1-1/4X1-1/4-NKW NSS BE

    • 1-1/4 x 1-1/4" Shaft HD-13B Series Lovejoy® Hardened Universal Joint HD13B-UJ-1-1/4X1-1/4-NKW NSS BE

    Timken

    $1,540.97
    (No reviews yet) Write a Review
    SKU:
    TIM HD13B-UJ-1-1/4X1-1/4-NKW NSS BE
    UPC:
    UPC 0685144456557
    Weight:
    6.76 LBS
    Series:
    HD-13B
    Shaft diameter:
    1-1/4 x 1-1/4"
    Keyway size:
    No keyway
    Coupling type:
    Universal joint
    Adding to cart… category.add_cart_announcement

    Product Description

  • HD type universal joints incorporate induction hardened yoke ears for longer life using the standard pin and block design.
  • It is ideal for applications with angles up to 25° and speeds of up to 1,750 RPM. Boot retaining grooves are standard.
  • HD Type are available in round, hex, splined, or keyway bore.
  • For optimal wear and extended life, lubrication and boots are required. (Boots are available for purchase separately.)
  • HDD and HDDX drive line assemblies can also be provided to increase life of your drive line or drive shaft.

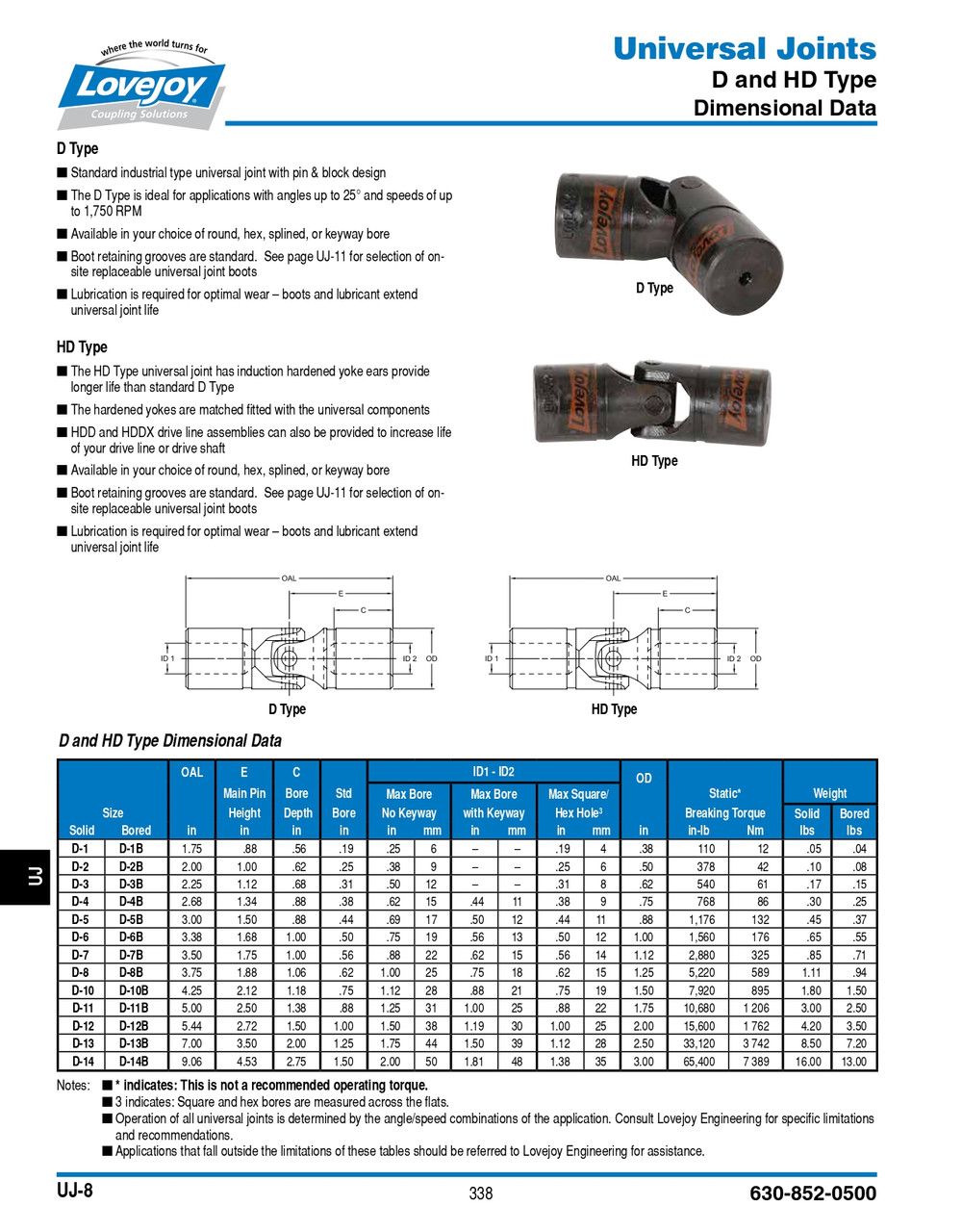

    adobepdficon.png Timken Lovejoy Master Catalog

    • Product Videos

    Custom Field

    Series HD-13B
    Shaft diameter 1-1/4 x 1-1/4"
    Keyway size No keyway
    Coupling type Universal joint
