  • 1-1/4" Shaft Lovejoy® Series Nyflex® Gear Coupling Half NYFL-HUB-1-1/4-5/16X5/32KW
  • 1-1/4" Shaft Lovejoy® Series Nyflex® Gear Coupling Half NYFL-HUB-1-1/4-5/16X5/32KW
  • 1-1/4" Shaft Lovejoy® Series Nyflex® Gear Coupling Half NYFL-HUB-1-1/4-5/16X5/32KW

    • 1-1/4" Shaft Lovejoy® Series Nyflex® Gear Coupling Half NYFL-HUB-1-1/4-5/16X5/32KW

    Timken

    $427.12
    (No reviews yet) Write a Review
    SKU:
    TIM NYFL-HUB-1-1/4-5/16X5/32KW
    UPC:
    UPC 0697904011852
    Weight:
    1.34 LBS
    Series:
    Nyflex®
    Shaft diameter:
    1-1/4"
    Keyway size:
    5/16 x 5/32"
    Coupling type:
    Nyflex® & Mite® gear coupler
    Adding to cart… category.add_cart_announcement

    Product Description

  • The Nyflex® and Mite® coupling consists of two sintered iron flex hubs, one nylon sleeve and two spirolox rings.
  • No lubrication required elliminating the need for seals
  • Sintered Iron hubs with crowned teeth to provider greater misalignment and gouging of nylon sleeve
  • Resilient, lightweight, abrasion and corrosion resistant nylon sleeve accurately molded to mesh with hubs elliminating friction and need of lubrication
  • Center groove in sleeves readily permits their use in vertical applications and for blind assembly
  • Securely held hubs and sleeves by spring-steel retaing rings yet capable of easy removal and still withstand a 5,000 lbs end thrust
  • Minimum backlash operating in an ambient temperture environment of -40 to 150° F

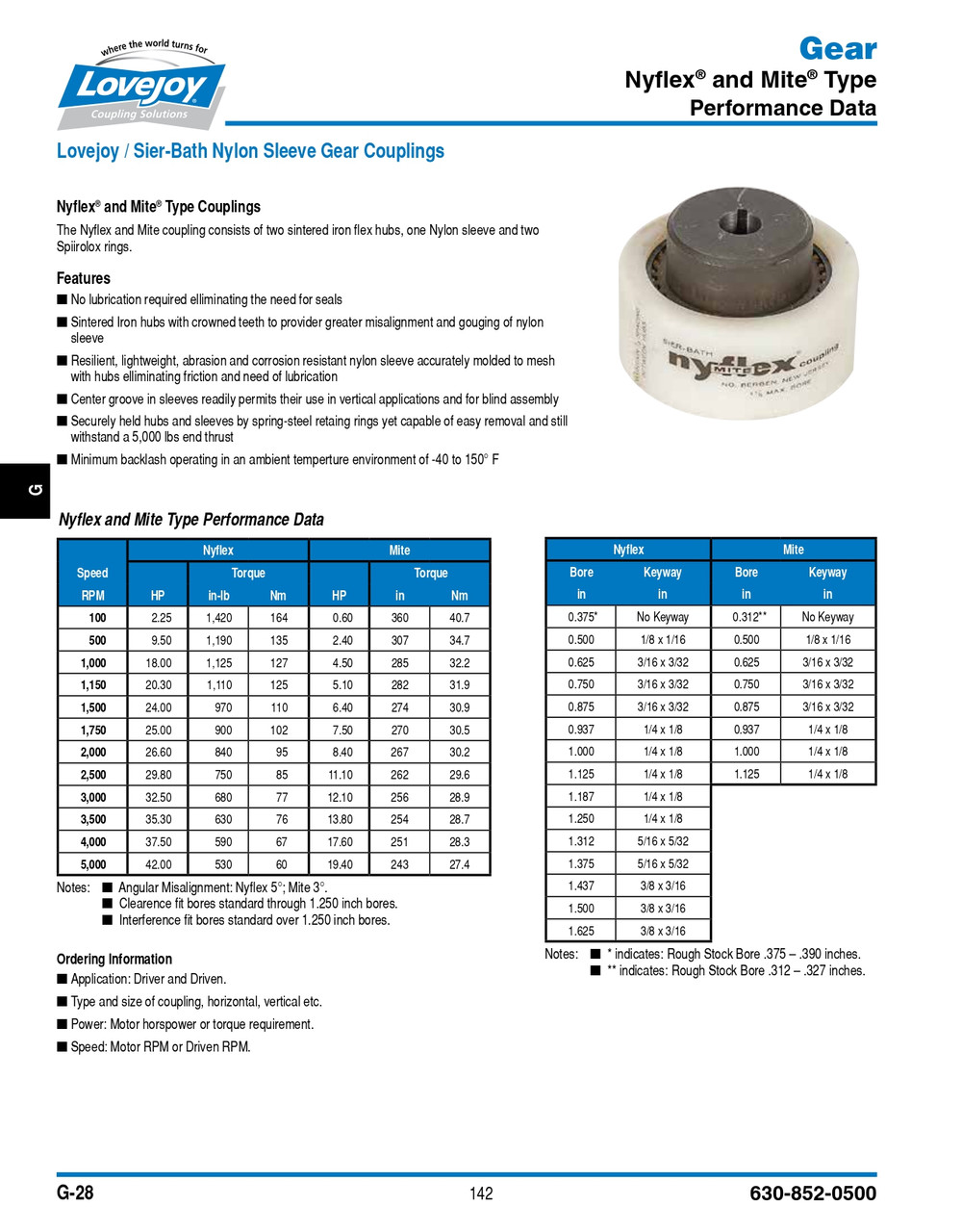

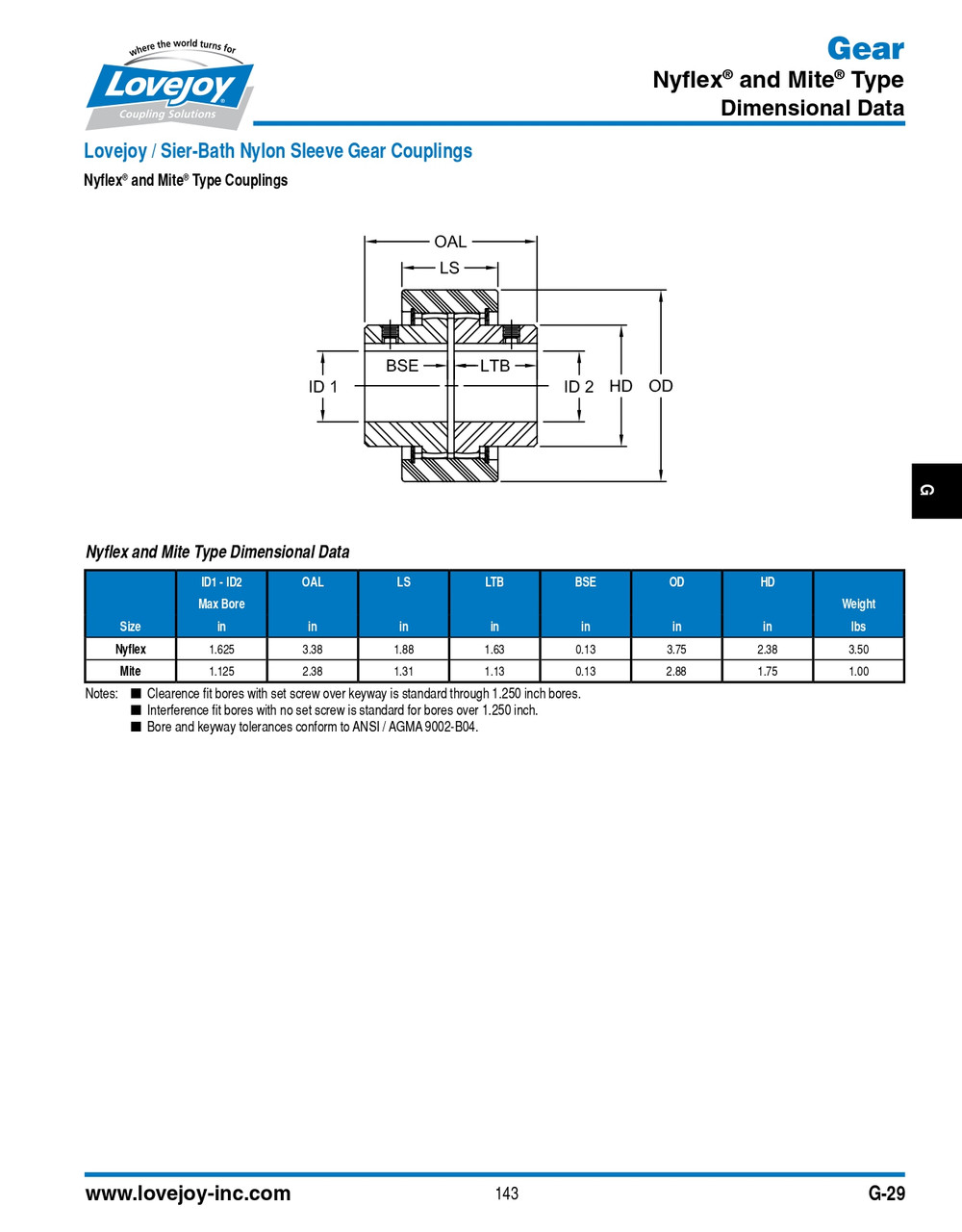

    adobepdficon.png Timken Lovejoy Master Catalog

    adobepdficon.png Nyflex & MITE Gear Coupling Installation Guide

    • Product Videos

    Custom Field

    Series Nyflex®
    Shaft diameter 1-1/4"
    Keyway size 5/16 x 5/32"
    Coupling type Nyflex® & Mite® gear coupler
