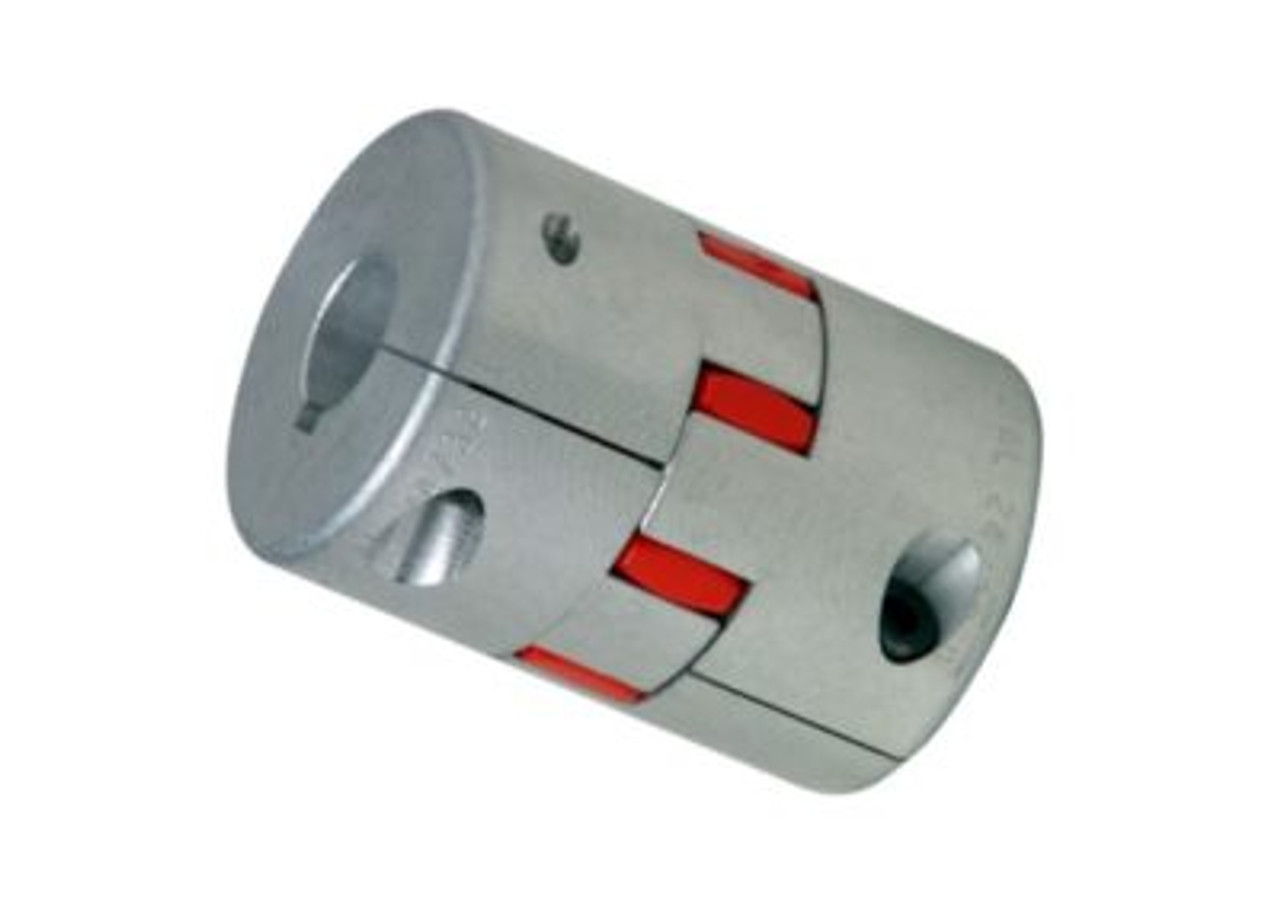

  • 1-1/4" Shaft Lovejoy® GS42/55 Curved Jaw Coupling Half GS42/55B-HUB-STL-1-1/4-1/4X1/8KW-DSCK
  • 1-1/4" Shaft Lovejoy® GS42/55 Curved Jaw Coupling Half GS42/55B-HUB-STL-1-1/4-1/4X1/8KW-DSCK
  • 1-1/4" Shaft Lovejoy® GS42/55 Curved Jaw Coupling Half GS42/55B-HUB-STL-1-1/4-1/4X1/8KW-DSCK
  • 1-1/4" Shaft Lovejoy® GS42/55 Curved Jaw Coupling Half GS42/55B-HUB-STL-1-1/4-1/4X1/8KW-DSCK
  • 1-1/4" Shaft Lovejoy® GS42/55 Curved Jaw Coupling Half GS42/55B-HUB-STL-1-1/4-1/4X1/8KW-DSCK
  • 1-1/4" Shaft Lovejoy® GS42/55 Curved Jaw Coupling Half GS42/55B-HUB-STL-1-1/4-1/4X1/8KW-DSCK

    • 1-1/4" Shaft Lovejoy® GS42/55 Curved Jaw Coupling Half GS42/55B-HUB-STL-1-1/4-1/4X1/8KW-DSCK

    Timken

    $1,632.12
    (No reviews yet) Write a Review
    SKU:
    TIM GS42/55B-HUB-STL-1-1/4-1/4X1/8KW-DSCK
    UPC:
    UPC 0685144773319
    Weight:
    5.85 LBS
    Series:
    GS42/55
    Shaft diameter:
    1-1/4"
    Material:
    Steel
    Keyway size:
    1/4 x 1/8
    Coupling type:

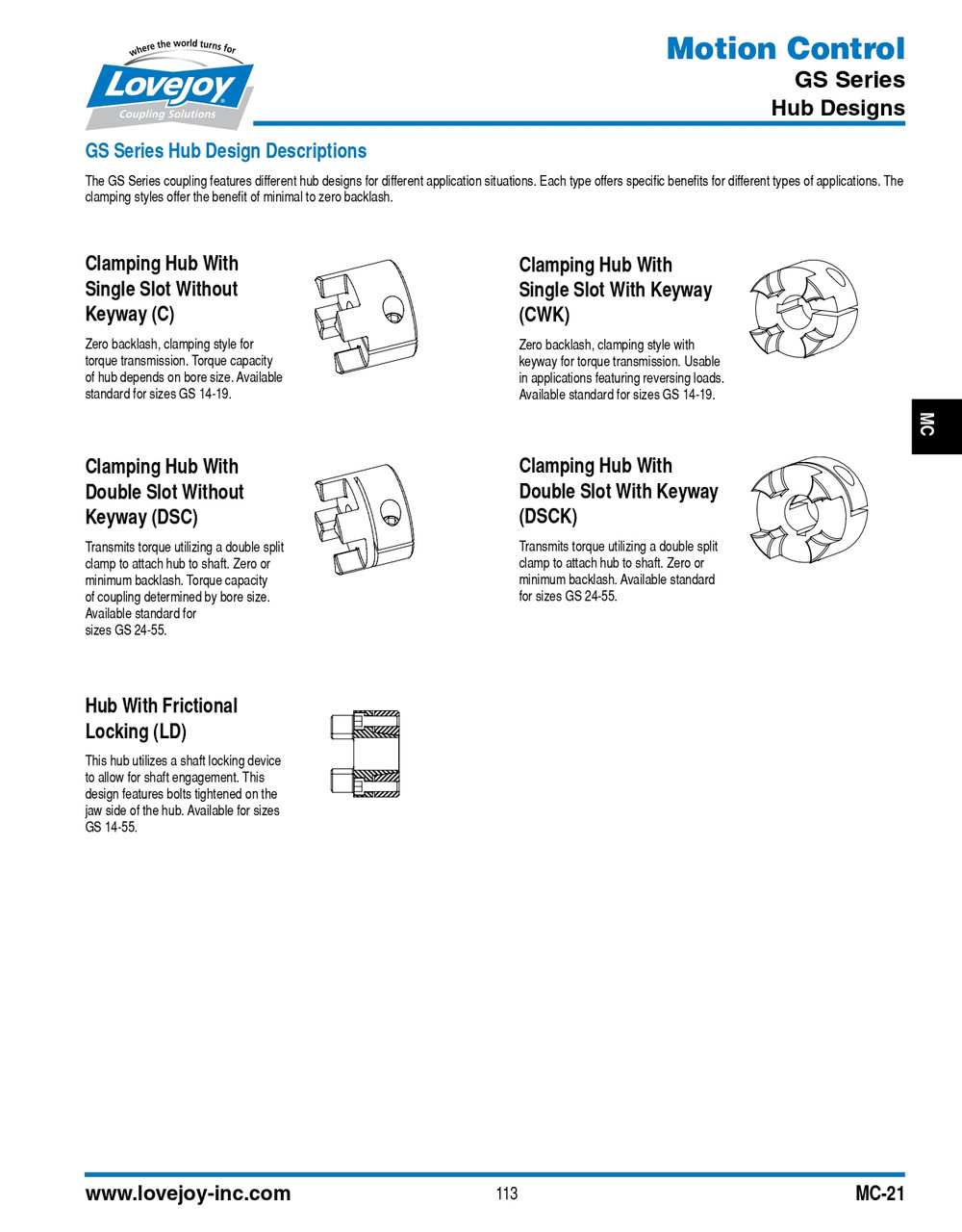

    Clamping hub (DSCK)
    Adding to cart… category.add_cart_announcement

    Product Description

  • Measurement and Control Systems: The torsional stiffness of the GS Series coupling provides zero backlashes needed for the accuracy for measurement and control systems. The low torques of these applications give the GS Series the ability to provide zero backlashes due to the elastomeric pre-stress.
  • Servo and Positioning Drives: The GS Series provides a zero backlash, flexible connection for servo and positioning drives. An added benefit of the GS Series is its damping capabilities. For applications that have vibrations at critical speeds, the GS Series coupling can provide a zero backlash solution for vibration problems.
  • Main Spindle Drives: The GS Series coupling is used in main spindle drives for machine tools. Torque spikes and cyclical loading are handled by the GS Series by damping or by shifting the vibratory frequency range to a non-critical speed range.
  • The GS Series can be used in a variety of different applications requiring precision and accuracy.
  • The GS Series spider features a straight center of the spider tooth, providing higher stiffness due to coupling prestress. The crowning of the ends of the spider legs allows for misalignment, while the curved jaws and solid spider
  • Simple 3 piece jaw design
  • Aluminum and steel material hubs
  • Clamping and locking device hubs available
  • Four different types of urethane shores to choose from

  • Timken’s Quick Flex® Elastomeric Coupling Configurator helps you quickly size Quick Flex coupling solutions for common applications.
  • By entering motor power (HP or kW), speed (rpm), and service factors, the configurator presents available Quick Flex coupling options, supporting faster selection and quoting.
  • Access the Quick Flex® Coupling Configurator to speed up your next coupling selection.

    adobepdficon.png Timken Lovejoy Master Catalog

    adobepdficon.png Curved Jaw GS Coupling Installation Guide

    • Product Videos

    Custom Field

    Series GS42/55
    Shaft diameter 1-1/4"
    Material Steel
    Keyway size 1/4 x 1/8
    Coupling type Clamping hub (DSCK)
