    Timken

    $0.00
    (No reviews yet) Write a Review
    SKU:
    TIM 50-DLT HUB RND-1-1/4-NKW
    UPC:
    UPC 68514439281
    Weight:
    0.00 LBS
    Series:
    50
    Shaft diameter:
    1-1/4"
    Keyway size:
    No keyway
    Coupling type:
    Deltaflex coupler

    Product Description

  • The patented Deltaflex series of couplings offer maximum misalignment capabilities with negligible reactionary load, for longer equipment life.
  • This all-metal flex-link coupling requires no lubrication or other maintenance.

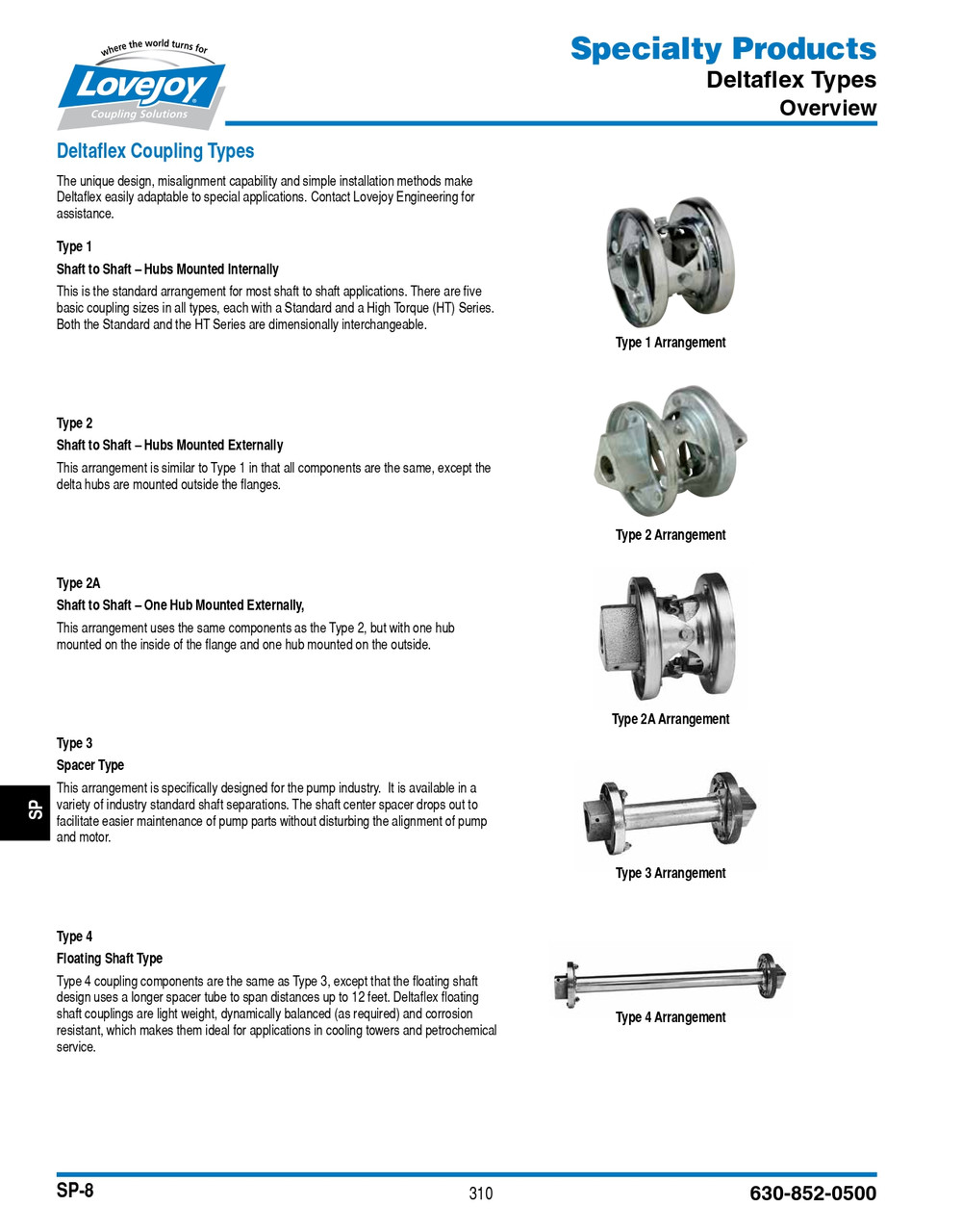

  • Standard (Type 1, 2, or 2A) Deltaflex coupling are comprised of two hubs, an inner flange (with hardware), and an outer flange.

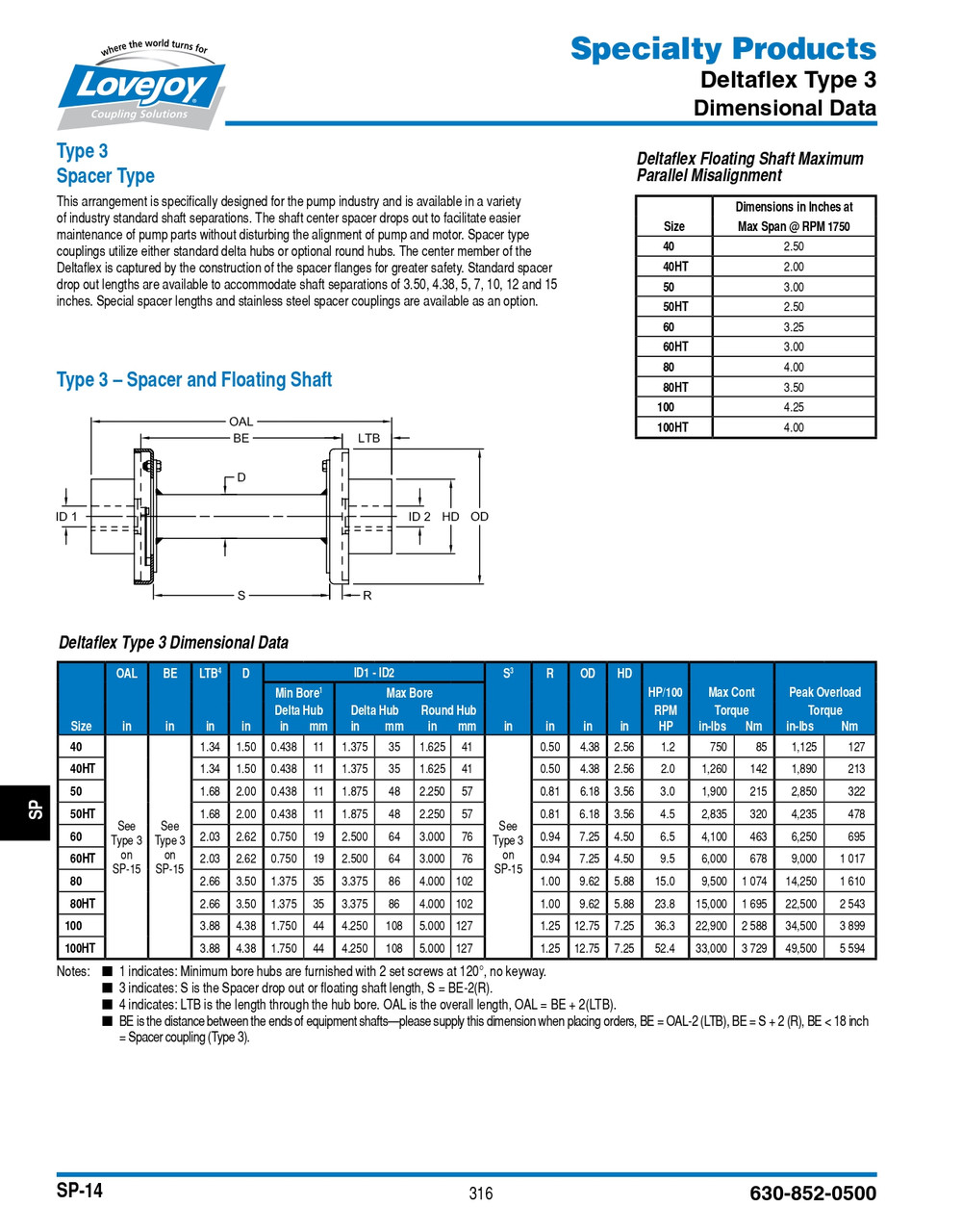

  • Spacer (Type 3 & 4) Deltaflex coupling are comprised of two hubs, two spacer flanges (with hardware), and a drop out spacer.

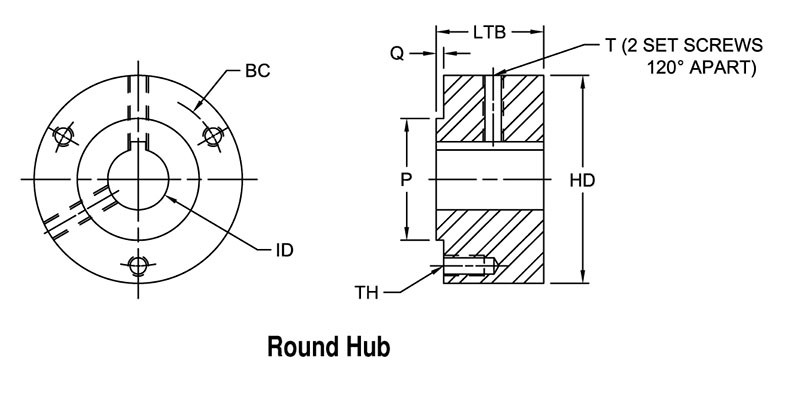

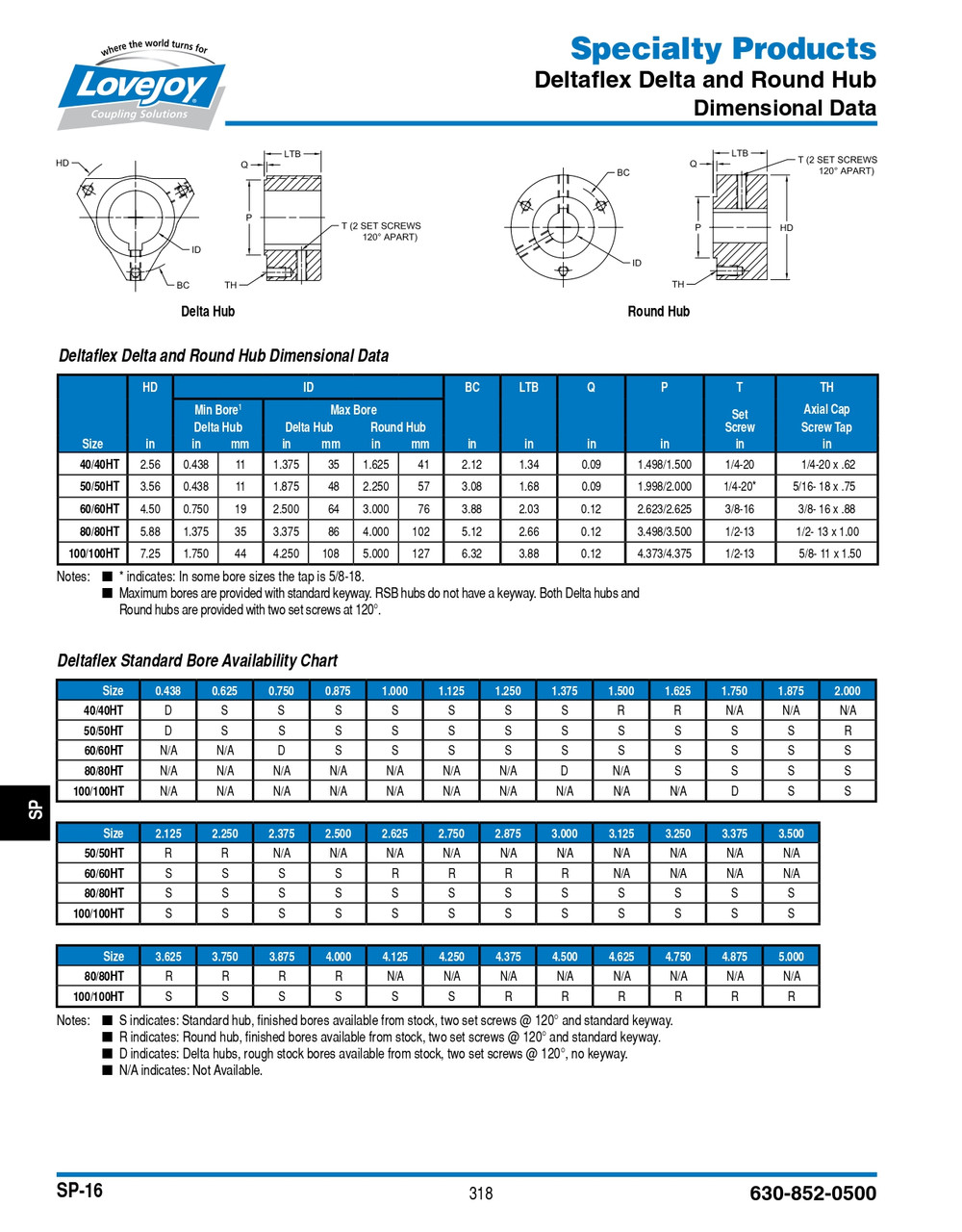

  • Unlike Delta hubs, Round hubs are available in stainless steel (SS).
  • Round hubs can also accommodate a larger max bore, but must always be mounted externally (no internal Type 1 mounting).
  • Standard Round hubs come with two set screws at 120°.

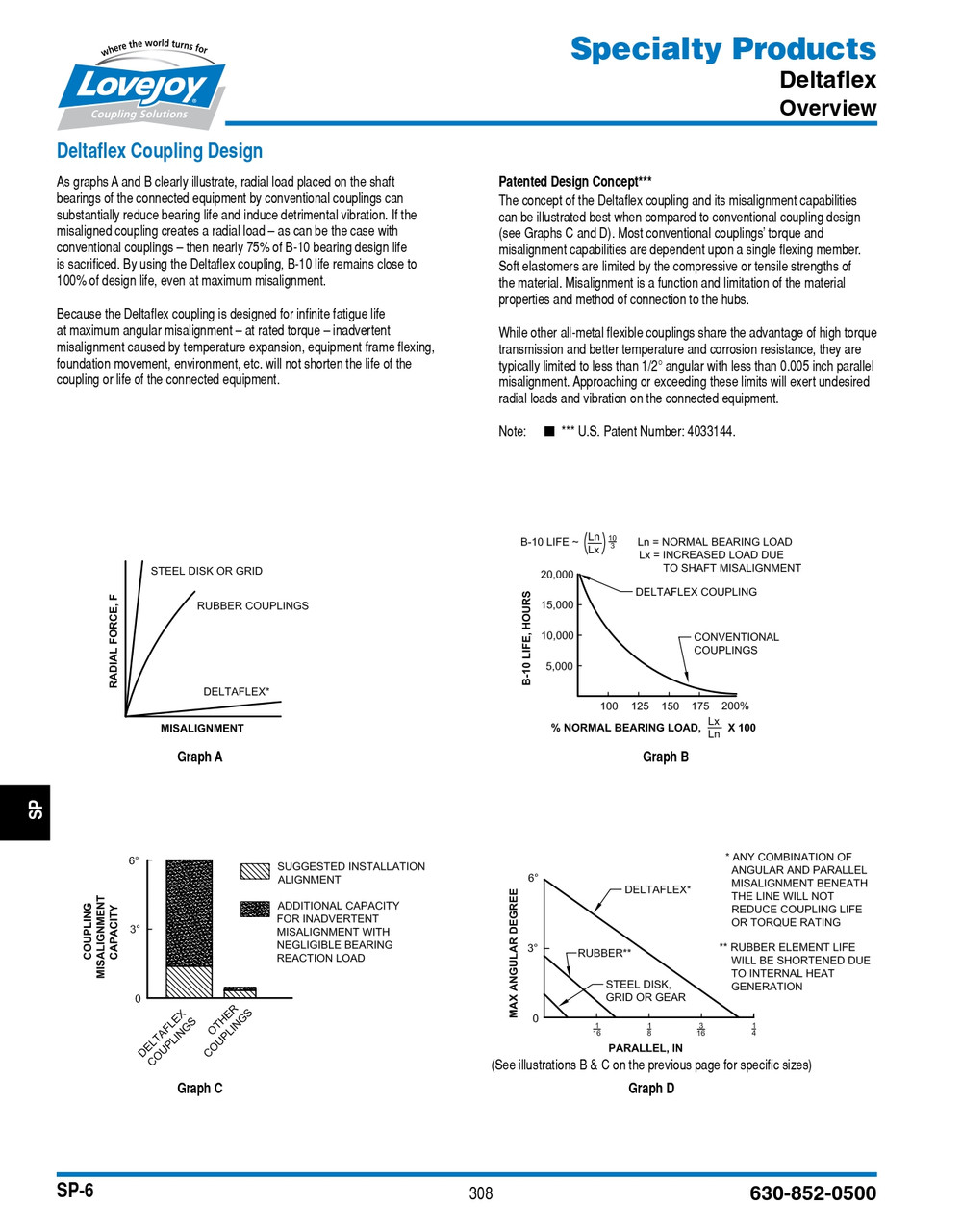

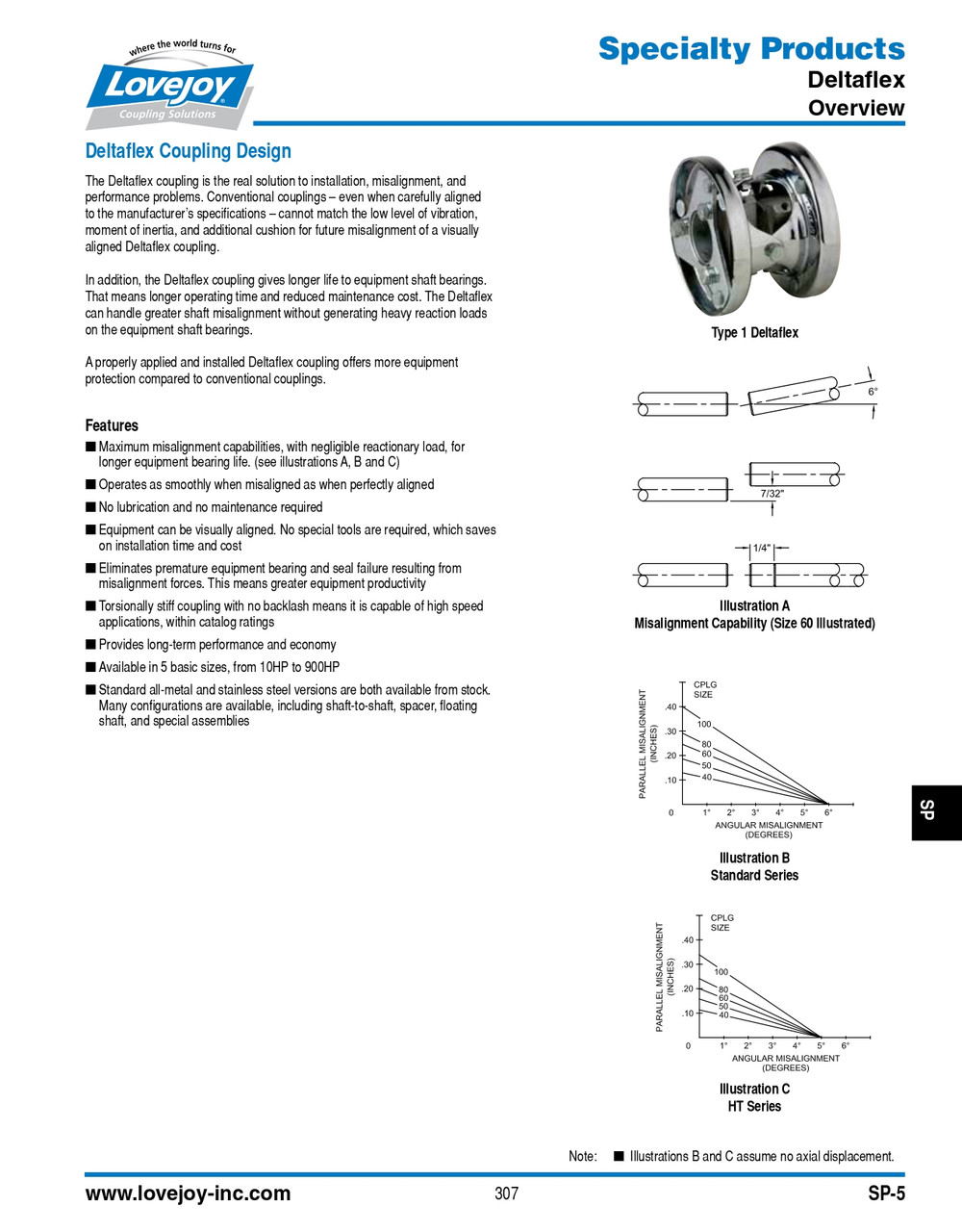

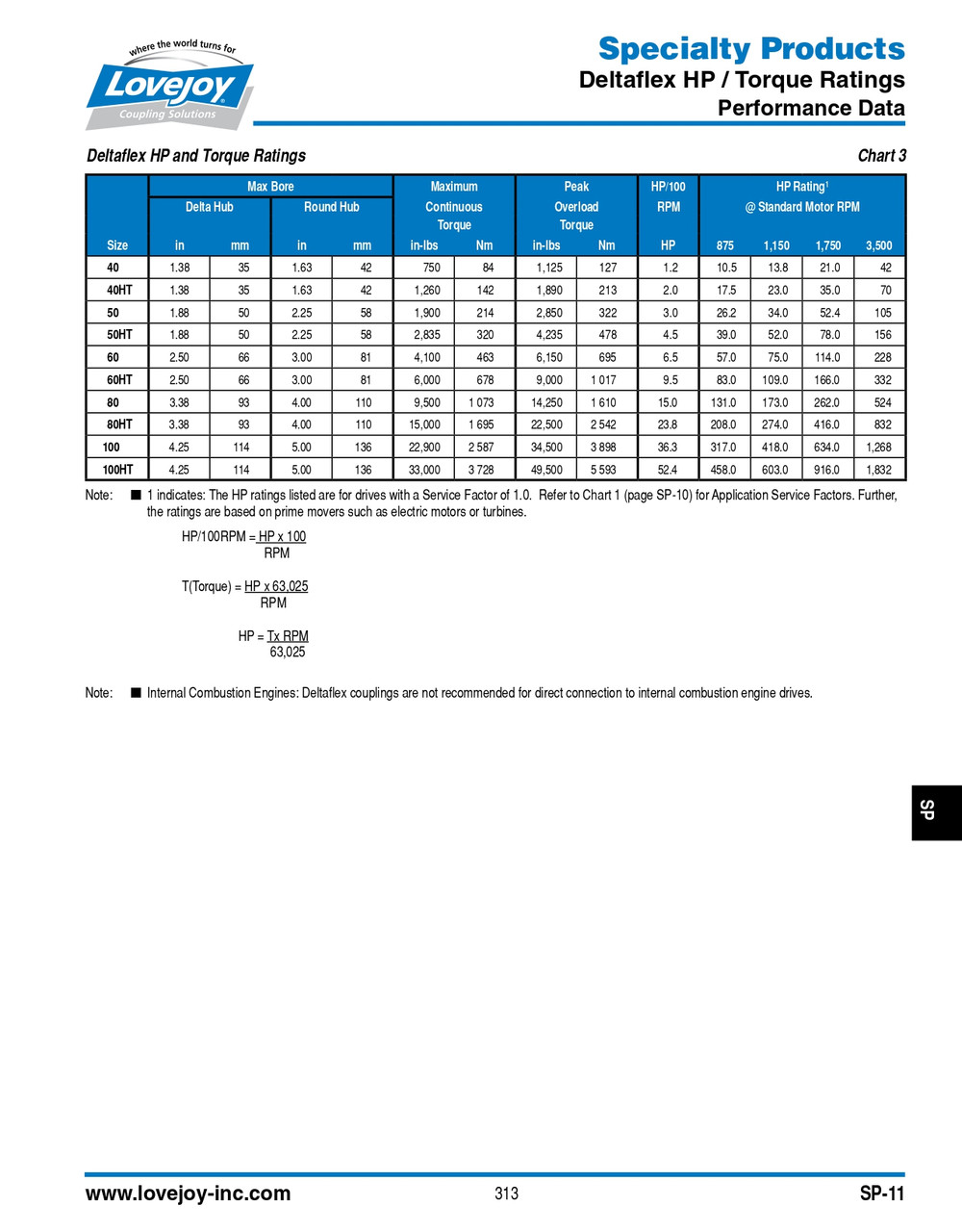

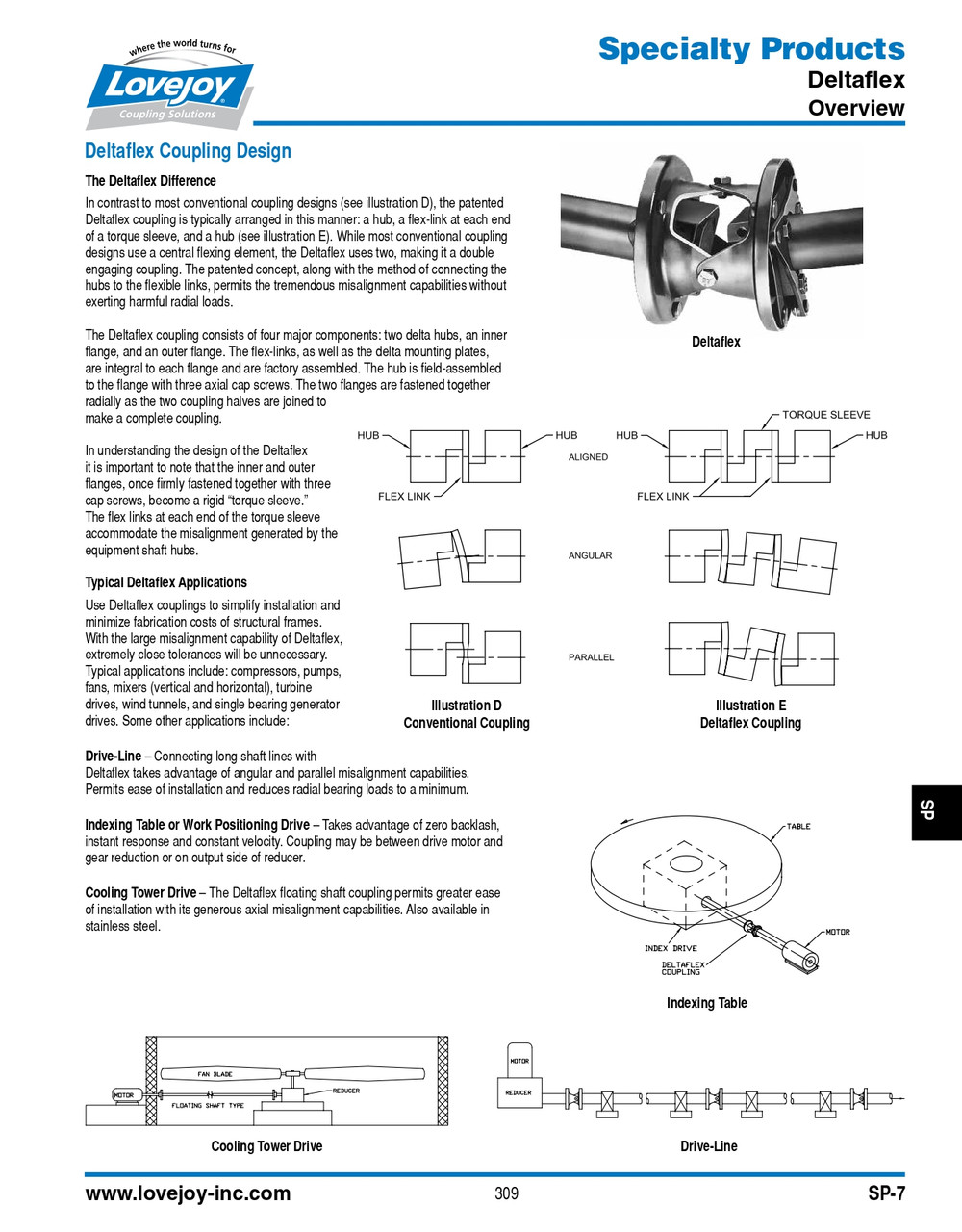

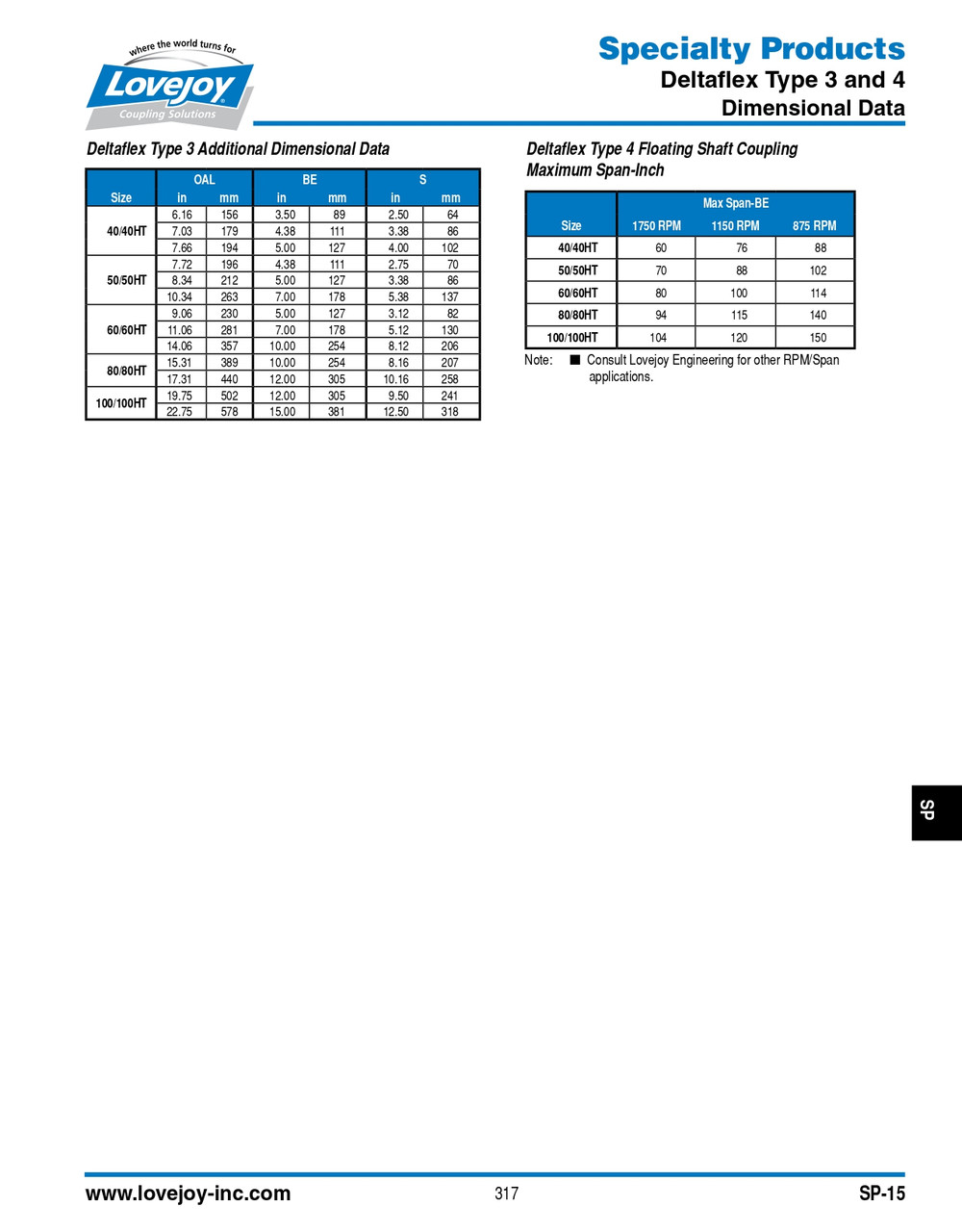

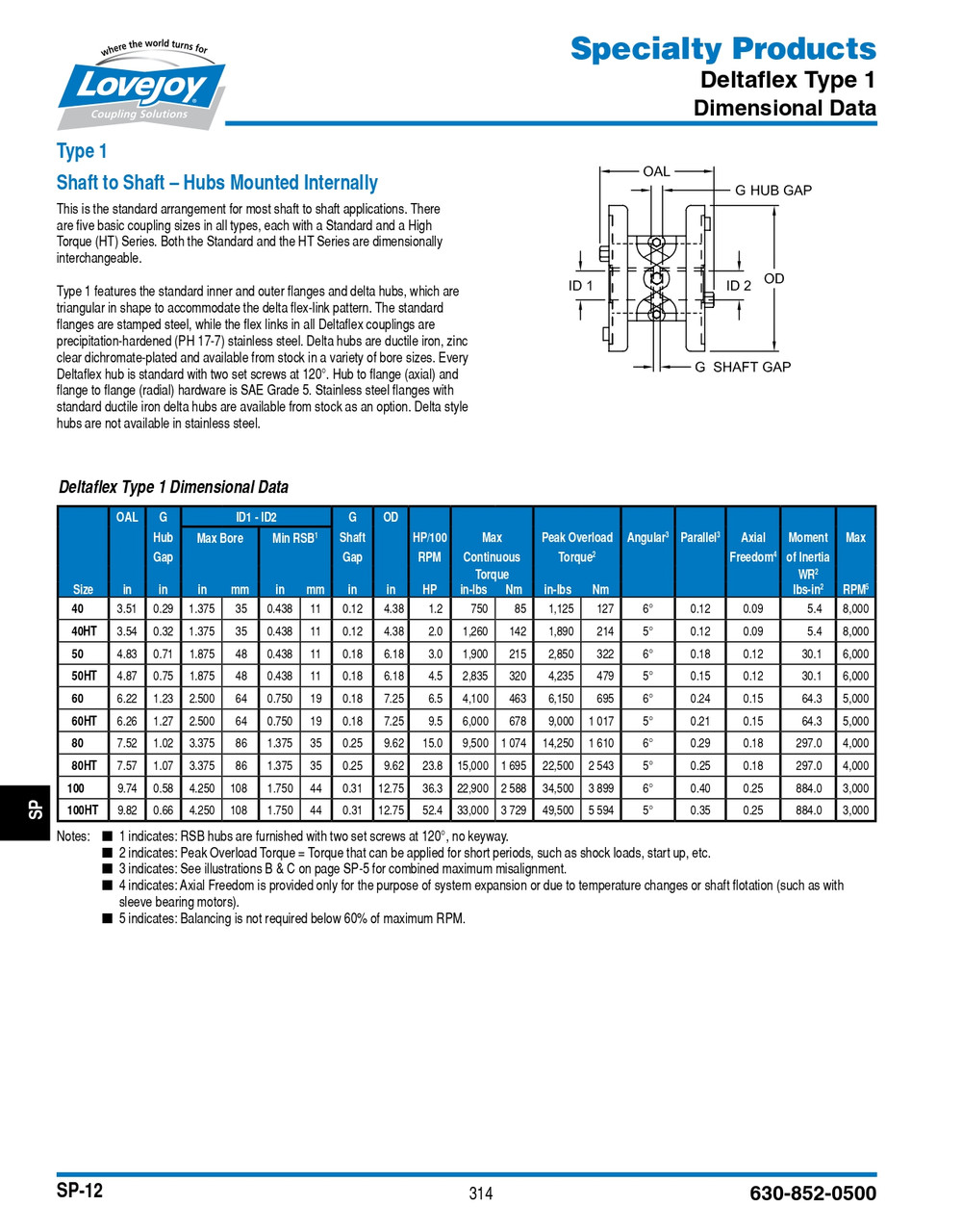

    adobepdficon.png Timken Lovejoy Master Catalog

    adobepdficon.png Deltaflex Coupling Installation Guide

    • Product Videos

    Custom Field

    Series 50
    Shaft diameter 1-1/4"
    Keyway size No keyway
    Coupling type Deltaflex coupler
