1-1/4" Heavy Duty V-Belt D480

Name: 1-1/4" Heavy Duty V-Belt D480
Brand: D&D Global
SKU: D&D D480
Price: 365.1 CAD
Availability: InStock

D&D Global

$365.10

(No reviews yet) Write a Review

SKU:: D&D D480
Weight:: 18.10 LBS
Oil and heat resistant:: Yes
Material:: EPDM rubber
Static dissipating:: Yes
Construction:: Polyester cords
Features:: Unimatch® system
Applications:: Predominantly used in industry, agriculture, and aggregates
Note:: The outside diameter (O.D.) of "D" belts is 5" longer than the part number would indicate (i.e. D90 = 95.0" O.D.)

Note: Belts currently listed are single rib only. If you require a banded, multi-rib molded belt, please inquire for pricing and availability

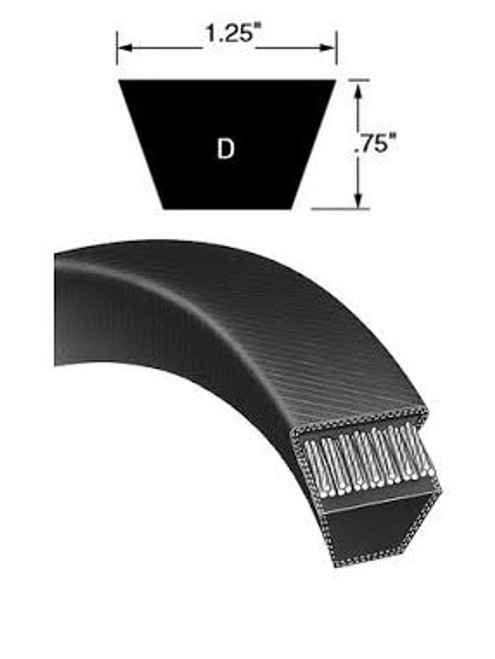

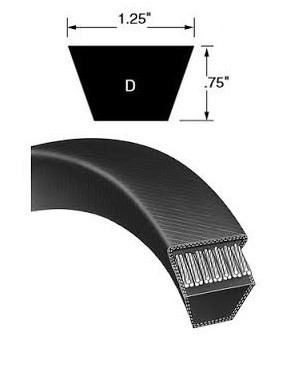

D section V-Belt (1-1/4" top width, 3/4" thick)

The "D" belt series can be ordered in banded sets of two or more for increased pulling power

Please click this link for a convenient V-Belt and pulley calculator

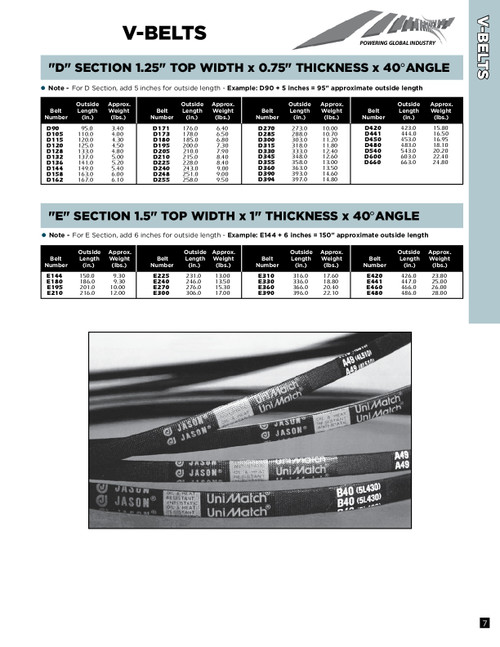

D&D Global Power Transmission Catalog

Oil and heat resistant Yes

Material EPDM rubber

Static dissipating Yes

Construction Polyester cords

Features Unimatch® system

Applications Predominantly used in industry, agriculture, and aggregates

Note The outside diameter (O.D.) of "D" belts is 5" longer than the part number would indicate (i.e. D90 = 95.0" O.D.)
