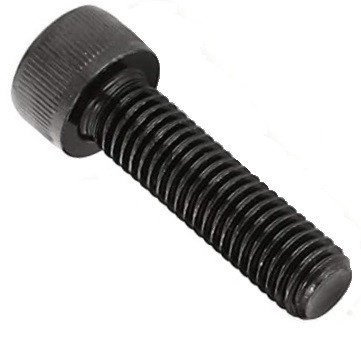

  • 1-1/4"-7 UNC Socket Head Cap Screw - Black Oxide 011555 - 011581
  • 1-1/4"-7 UNC Socket Head Cap Screw - Black Oxide 011555 - 011581
  • 1-1/4"-7 UNC Socket Head Cap Screw - Black Oxide 011555 - 011581
  • 1-1/4"-7 UNC Socket Head Cap Screw - Black Oxide 011555 - 011581
  • 1-1/4"-7 UNC Socket Head Cap Screw - Black Oxide 011555 - 011581

    • 1-1/4"-7 UNC Socket Head Cap Screw - Black Oxide 011555 - 011581

    Brighton Best

    $0.00
    (No reviews yet) Write a Review
    SKU:
    BBI 011555 - 011581
    Weight:
    0.00 LBS
    Box quantity shown in drop down:
    Sold as each
    Class Fit:
    3A
    Head type:
    Standard
    Hardness range:
    Rockwell 39-45
    Standard:
    ASME/ANSI B18.3-2002 ASTM A574
    Treatment:
    Heat treated alloy steel series 1960

    Product Description

  • Black oxide steel socket head cap screws are considered grade 12 (12.9) and are much stronger than the flexible grade 5 (8.8) preferred for shear pins and general use or the stiffness of grade 8 (10.9) fasteners commonly deployed as frame bolts on semi trucks. For specific socket head tensile strengths, please refer to the chart in the image carousel.
  • Black oxide steel screws are mildly corrosion resistant in dry environments as the screws are covered with a light protective oil coating.
  • Baked zinc plated screws aid in the resistance to corrosion and are an economical substitute to stainless while still maintaing the high tensile strength of steel.
  • Stainless steel offers the best protection against deterioration among the three fasteners but has caveats. The tensile strength of type 316 stainless steel is only slightly stronger than un-hardened grade 2 ferrous steel. Also, please be aware that when combining stainless steel fasteners; especially stainless lock nuts regardless the thread type or bolt diameter, it's recommended to coat the male bolt threads in never-seez before assembly as galling can occur and cause the nut to fuse to the bolt during installation/disassembly, leaving the threads looking melted as the nut seizes in place and any further turning of the wrench just shears the bolt in half.

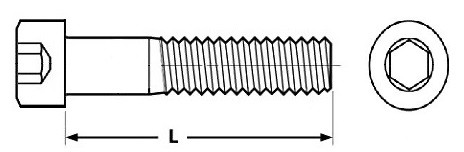

  • To correctly measure the length "L" of any socket head cap screw, you must measure under the head on standard/button/low head screws and include the head when measuring flat head (countersunk) screws.
  • When selecting inch threads, thread pitch is measured by counting every thread contained within 1" and is spoken as "threads per inch" (i.e. 3/8"-16 TPI)
  • When selecting metric threads, thread pitch is measured from one thread peak to the next in millimeters (i.e. M10-1.25mm). Many metric threaded bolts are cut with fine and extra-fine threads which further necessitate the need for proper thread identification before ordering. Vernier calipers and thread gauges proove invaluable for this task.

  • Click this link for a detailed Wiki explanation on the Unified Thread Standard

  • Click this link for a detailed Wiki explanation on the Metric Thread Standard

  • Fasteners meet ASTM A574, ASTM A574M, and ISO 898-1 comply with specifications and testing requirements for material quality. Fasteners meet ASME B18.3, ASME B18.3M, ISO 21269, and ISO 4762 (formerly DIN 912) comply with specifications for dimensional standards.

    adobepdficon.png Brighton Best General Catalog

    • Product Videos

    Custom Field

    Box quantity shown in drop down Sold as each
    Class Fit 3A
    Head type Standard
    Hardness range Rockwell 39-45
    Standard ASME/ANSI B18.3-2002 ASTM A574
    Treatment Heat treated alloy steel series 1960
