  • 1-1/2" Shaft Lovejoy® Series F-1 Exposed Bolt Rigid Flanged Gear Coupling Half F-1E-HUB RGD-1-1/2-3/8X3/16KW
  • 1-1/2" Shaft Lovejoy® Series F-1 Exposed Bolt Rigid Flanged Gear Coupling Half F-1E-HUB RGD-1-1/2-3/8X3/16KW
  • 1-1/2" Shaft Lovejoy® Series F-1 Exposed Bolt Rigid Flanged Gear Coupling Half F-1E-HUB RGD-1-1/2-3/8X3/16KW
  • 1-1/2" Shaft Lovejoy® Series F-1 Exposed Bolt Rigid Flanged Gear Coupling Half F-1E-HUB RGD-1-1/2-3/8X3/16KW
  • 1-1/2" Shaft Lovejoy® Series F-1 Exposed Bolt Rigid Flanged Gear Coupling Half F-1E-HUB RGD-1-1/2-3/8X3/16KW
  • 1-1/2" Shaft Lovejoy® Series F-1 Exposed Bolt Rigid Flanged Gear Coupling Half F-1E-HUB RGD-1-1/2-3/8X3/16KW
  • 1-1/2" Shaft Lovejoy® Series F-1 Exposed Bolt Rigid Flanged Gear Coupling Half F-1E-HUB RGD-1-1/2-3/8X3/16KW

    • 1-1/2" Shaft Lovejoy® Series F-1 Exposed Bolt Rigid Flanged Gear Coupling Half F-1E-HUB RGD-1-1/2-3/8X3/16KW

    Timken

    $616.52
    (No reviews yet) Write a Review
    SKU:
    TIM F-1E-HUB RGD-1-1/2-3/8X3/16KW
    UPC:
    UPC 69790408903
    Weight:
    0.00 LBS
    Series:
    F-1
    Shaft diameter:
    1-1/2"
    Keyway size:
    3/8 x 3/16"
    Coupling type:
    Gear coupler
    Adding to cart… category.add_cart_announcement

    Product Description

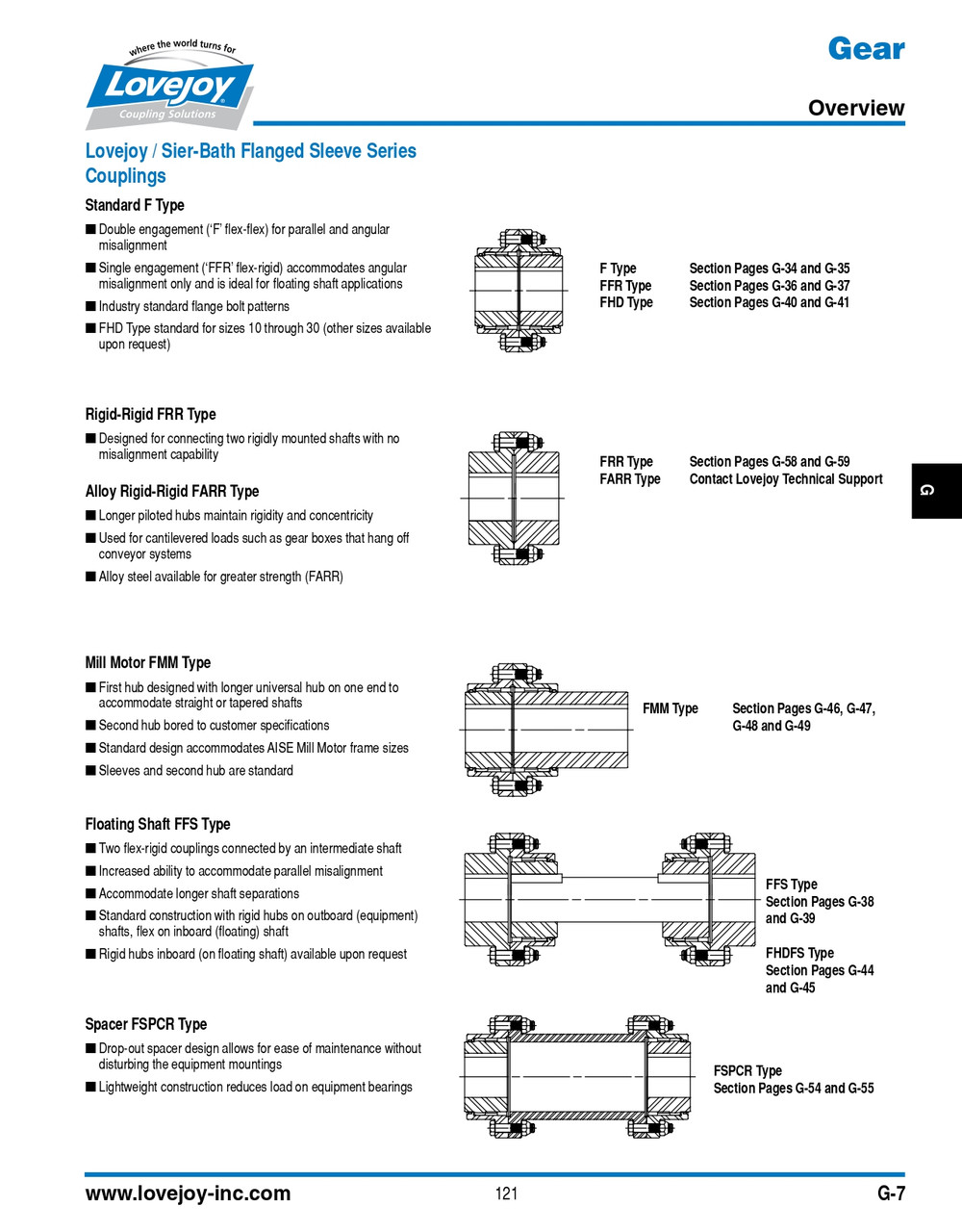

  • F type rigid hubs, solid & rough stock bore - exposed and shrouded bolt designs
  • For use with FFR (flex-rigid) or FRR (rigid-rigid) couplings.
  • The FFR Type coupling consists of one flex hub, one rigid hub, one sleeve, and one accessory kit.
  • Exposed bolts (E) are the standard design for this coupling, though shrouded bolt (S) designs are available upon request through size 5.5.
  • The FFR Type has a max angular misalignment of 1.5 degrees (1.5 degrees per gear mesh).
  • The FRR Type coupling consists of two rigid hubs and one accessory kit.
  • Exposed bolts (E) are also the standard design for this coupling, though shrouded bolt (S) designs are available upon request through size 5.5.
  • The FRR Type coupling does not accommodate for any angular misalignment.
  • For larger torques, consider the FHD type gear coupling in sizes 10 through 30.

    adobepdficon.png Timken Lovejoy Master Catalog

    adobepdficon.png F & FA Flange Gear Coupling Installation Guide

    • Product Videos

    Custom Field

    Series F-1
    Shaft diameter 1-1/2"
    Keyway size 3/8 x 3/16"
    Coupling type Gear coupler
