1-1/2" Industrial Set Screw Flange Block Assembly YCJ1 1/2 SGT

Incorporates Shaft Guarding Technology, which reduces replacement time, provides shaft protection and prolongs the life of the shaft

The same basic design as the RCJ series, except specially designed set screws are used as the locking device instead of an eccentric collar

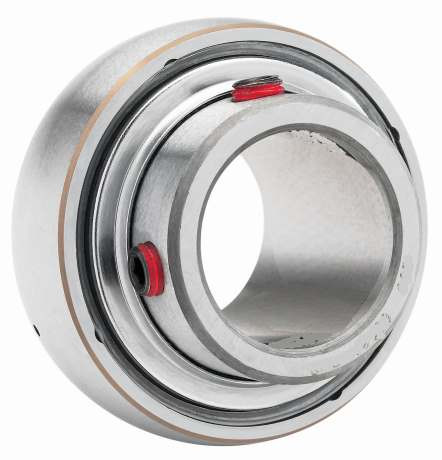

All units are equipped with GY-KRRB wide-inner-ring set screw bearings

Spherical outside diameter of the bearings mounted in the corresponding machined housing seats provides the initial self-alignment

Bolt-hole spacing dimensions are interchangeable with the RCJ series and most competitive units

Units are factory-prelubricated, but a grease fitting is provided for relubrication if required

Safety end caps are available for selected sizes

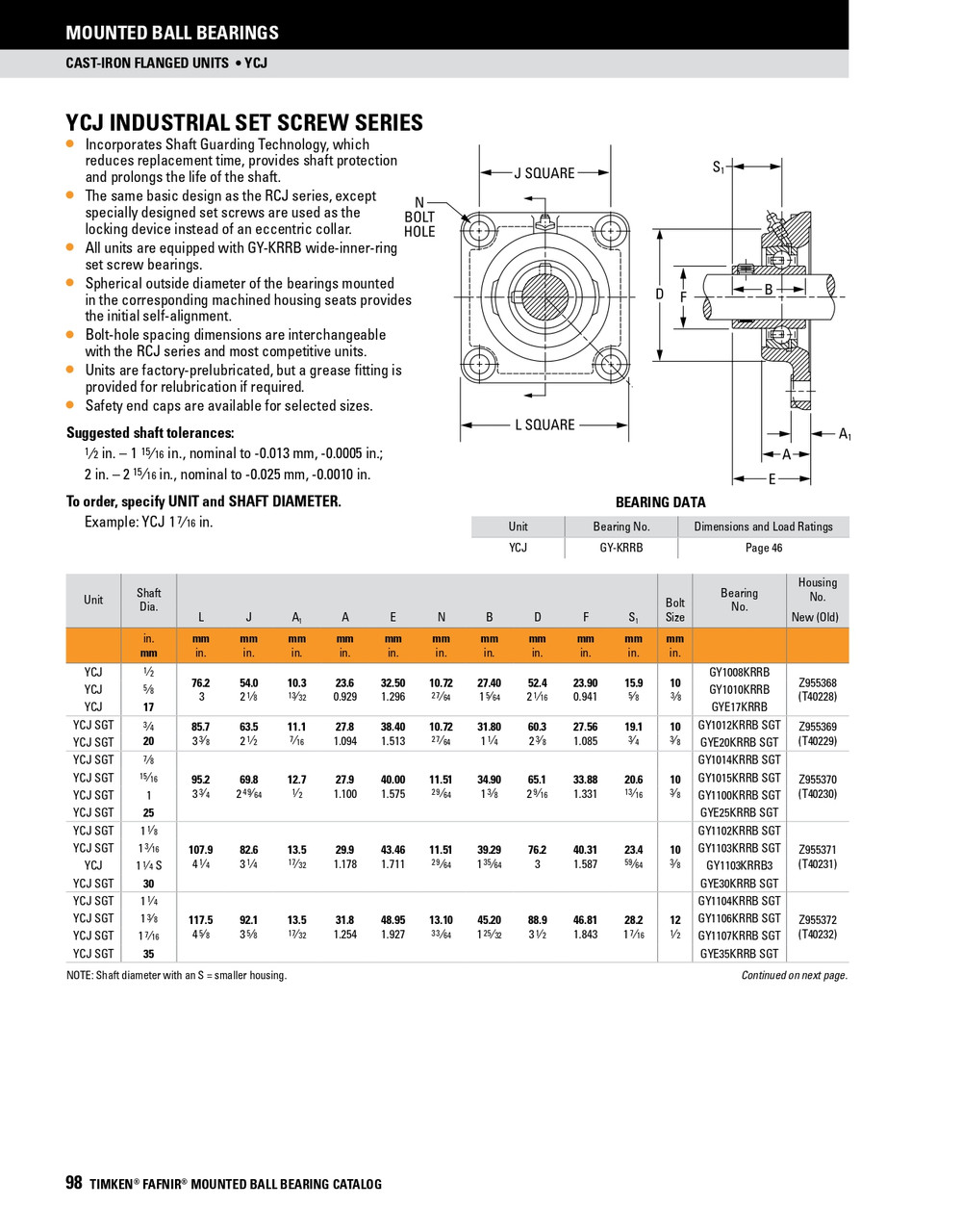

Timken Fafnir Mounted Ball Bearing Catalog

Timken Fafnir Competitive Interchange Chart

Bearing Type Deep groove ball bearing

Shaft profile Round

Bearing material Hardened steel

Housing material Cast iron

Outer diameter profile Spherical

Locking device Set screws

Shaft guard technology equipped Yes
