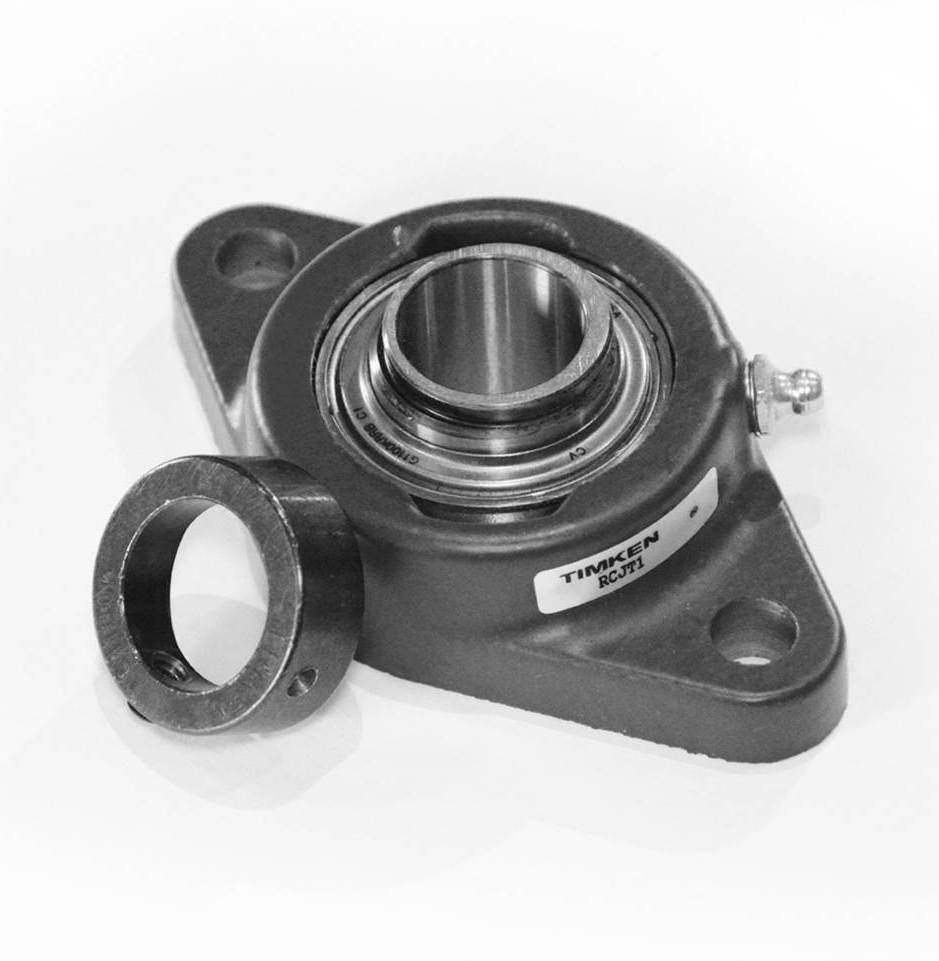

  • 1-1/2" Industrial Eccentric Locking Collar Rhombus Flange Block Assembly TCJT1 1/2
  • 1-1/2" Industrial Eccentric Locking Collar Rhombus Flange Block Assembly TCJT1 1/2
  • 1-1/2" Industrial Eccentric Locking Collar Rhombus Flange Block Assembly TCJT1 1/2
  • 1-1/2" Industrial Eccentric Locking Collar Rhombus Flange Block Assembly TCJT1 1/2
  • 1-1/2" Industrial Eccentric Locking Collar Rhombus Flange Block Assembly TCJT1 1/2
  • 1-1/2" Industrial Eccentric Locking Collar Rhombus Flange Block Assembly TCJT1 1/2
  • 1-1/2" Industrial Eccentric Locking Collar Rhombus Flange Block Assembly TCJT1 1/2

    • 1-1/2" Industrial Eccentric Locking Collar Rhombus Flange Block Assembly TCJT1 1/2

    Timken

    $278.63
    (No reviews yet) Write a Review
    SKU:
    TIM TCJT1 1/2
    UPC:
    UPC 087796110496
    Weight:
    4.29 LBS
    Bearing Type:
    Deep groove ball bearing
    Shaft profile:
    Round
    Bearing material:
    Hardened steel
    Housing material:
    Cast iron
    Outer diameter profile:
    Spherical
    Locking device:
    Eccentric locking collar
    Adding to cart… category.add_cart_announcement

    Product Description

  • The cartridges are the same basic design as RCJ, TCJ, and LCJ types, except they have two bolt holes instead of four
  • This series is primarily designed for applications where the mounting area is restricted
  • The RCJT cartridge is equipped with G-KRRB (R-seal) wide inner-ring ball bearings The TCJT is equipped with G-KPPB (tri-ply seal) wide-inner-ring ball bearings The LCJT is equipped with the G-KLLB (Mechani-seal) wide-inner-ring ball bearings
  • The units are factory-prelubricated, but a grease fitting is provided for relubrication
  • Safety end caps are available for selected sizes

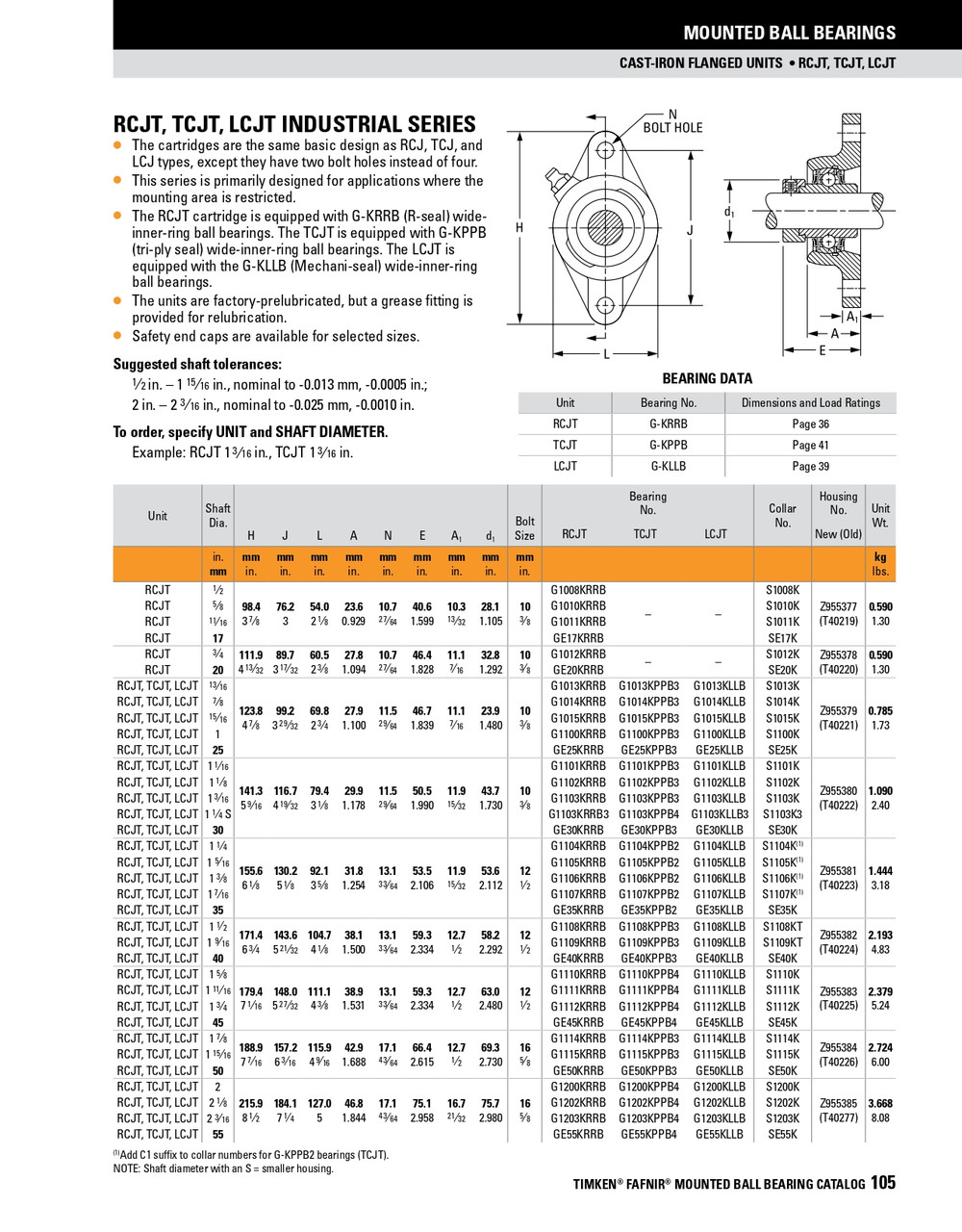

    adobepdficon.png Timken Fafnir Mounted Ball Bearing Catalog

    adobepdficon.png Timken Fafnir Competitive Interchange Chart

    • Product Videos

    Custom Field

    Bearing Type Deep groove ball bearing
    Shaft profile Round
    Bearing material Hardened steel
    Housing material Cast iron
    Outer diameter profile Spherical
    Locking device Eccentric locking collar
