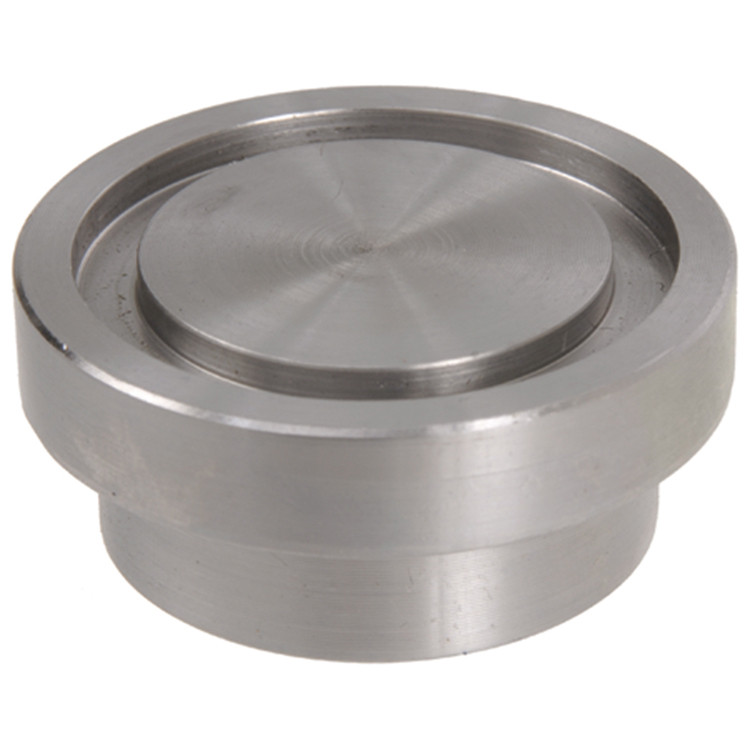

  • 1-1/2" (2.50" Flange) Code 62 Flange Plug 0900HP-24
  • 1-1/2" (2.50" Flange) Code 62 Flange Plug 0900HP-24
  • 1-1/2" (2.50" Flange) Code 62 Flange Plug 0900HP-24
  • 1-1/2" (2.50" Flange) Code 62 Flange Plug 0900HP-24

    • 1-1/2" (2.50" Flange) Code 62 Flange Plug 0900HP-24

    Greenline

    $31.30
    (No reviews yet) Write a Review
    SKU:
    GRN 0900HP-24
    Weight:
    0.00 LBS
    Adding to cart… category.add_cart_announcement

    Product Description

  • SAE 4-bolt flange connections are commonly used on heavy mobile equipment and other high-pressure applications.
  • There are two SAE series of flanges as well as Caterpillar's® newer proprietary version.
  • Code 61 denotes the standard series and Code 62 the high pressure series flanges.
  • Code 62 flanges have larger and thicker head diameters and use a different bolt size, bolt grade (8 instead of 5), and bolt hole pattern.
  • Caterpillar® style flanges feature a thicker 0.560" flange head and require special flange halves that do not conform to Code 62 bolt hole patterns.
  • Flange heads have a machined groove where the o-ring seats and sealing is achieved when the o-ring is compressed between the flange head and the smooth faced port.
  • The flange head is secured to the port by two split flange clamp halves and four bolts.
  • Other less common flanges include the Komatsu style flange in -10, and the very rare French Poclain style flanges.

    adobepdficon.png Pulsar Hydraulic Hose & Fittings 10th Edition Catalog
