Product Description

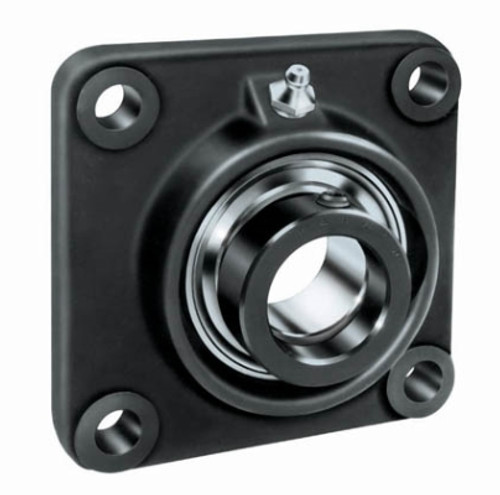

Timken Fafnir cartridges are used in applications where a minimum amount of machining is to be done
Each unit comes assembled and ready for mounting, with bolts through the flange
These are wide-inner-ring ball bearings, self-aligning B-types, which compensate for shaft misalignment
The RCJ flange cartridge is equipped with G-KRRB (R-seal) wide-inner-ring ball bearings The TCJ is equipped with G-KPPB (tri-ply seal) wide-inner-ring ball bearings The LCJ is equipped with the G-KLLB (Mechani-seal) wide-inner-ring ball bearings
The TCJ flange cartridges are identical to RCJ units, except they use the tri-ply seal bearing Tri-ply units offer the best protection in dirty environments
The units are factory-prelubricated, but a grease fitting is provided for relubrication if required The units are supplied with self-locking collars
Timken Fafnir Mounted Ball Bearing Catalog
Timken Fafnir Competitive Interchange Chart
Custom Field
Bearing Type Deep groove ball bearing
Shaft profile Round
Bearing material Hardened steel
Housing material Cast iron
Outer diameter profile Spherical
Locking device Eccentric locking collar
