0.8T @ 10' Lift VQ Super Series Lever Chain Hoist 3855 31008

Compact and extremely light weight

Fully machined lifting wheels

Optimal gear ratio

Unique hand wheel & knob design, no preload required

Needle roller bearing

Weston style dual pawl brake system, double pawl design increases safety

Fused brake disc (ratchet disc and friction plate/discs are fused together)

Grade 100 heat treated load chain with dichromate finish

Steel handles with rubber hand grip providing greater operator comfort and control

Self-articulating top hooks

Extra-large forged alloy top and bottom hooks (with cast latches) rotate 360°

Top and bottom hooks are designed to stretch when overloaded before chain failure

Each hoist is proof tested at 1.5 times the rated capacity, certificate provided

Durable baked enamel paint protection

Meet ASME B30.21 safety standards

ISO 9001 - 2001 certified factory

Custom length units available upon request

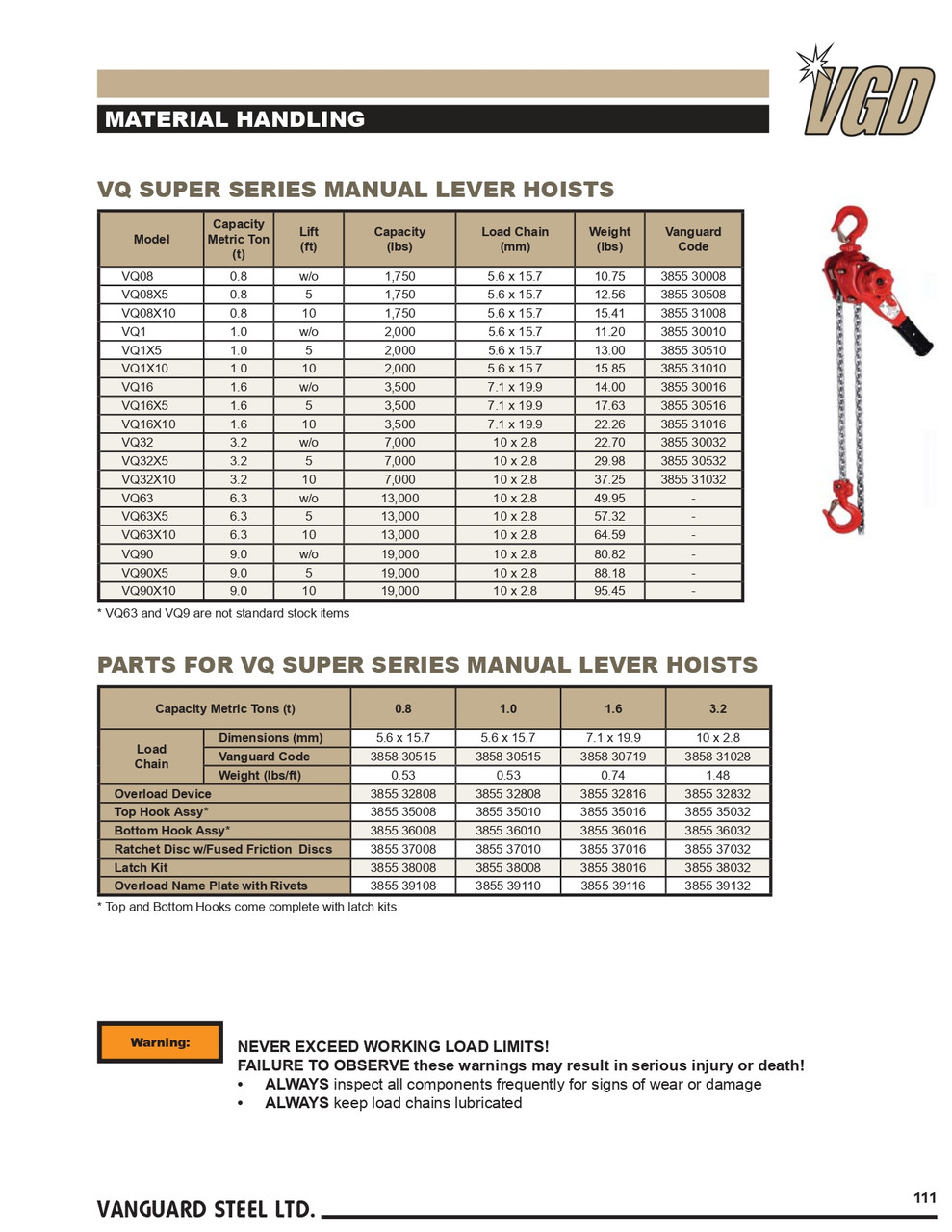

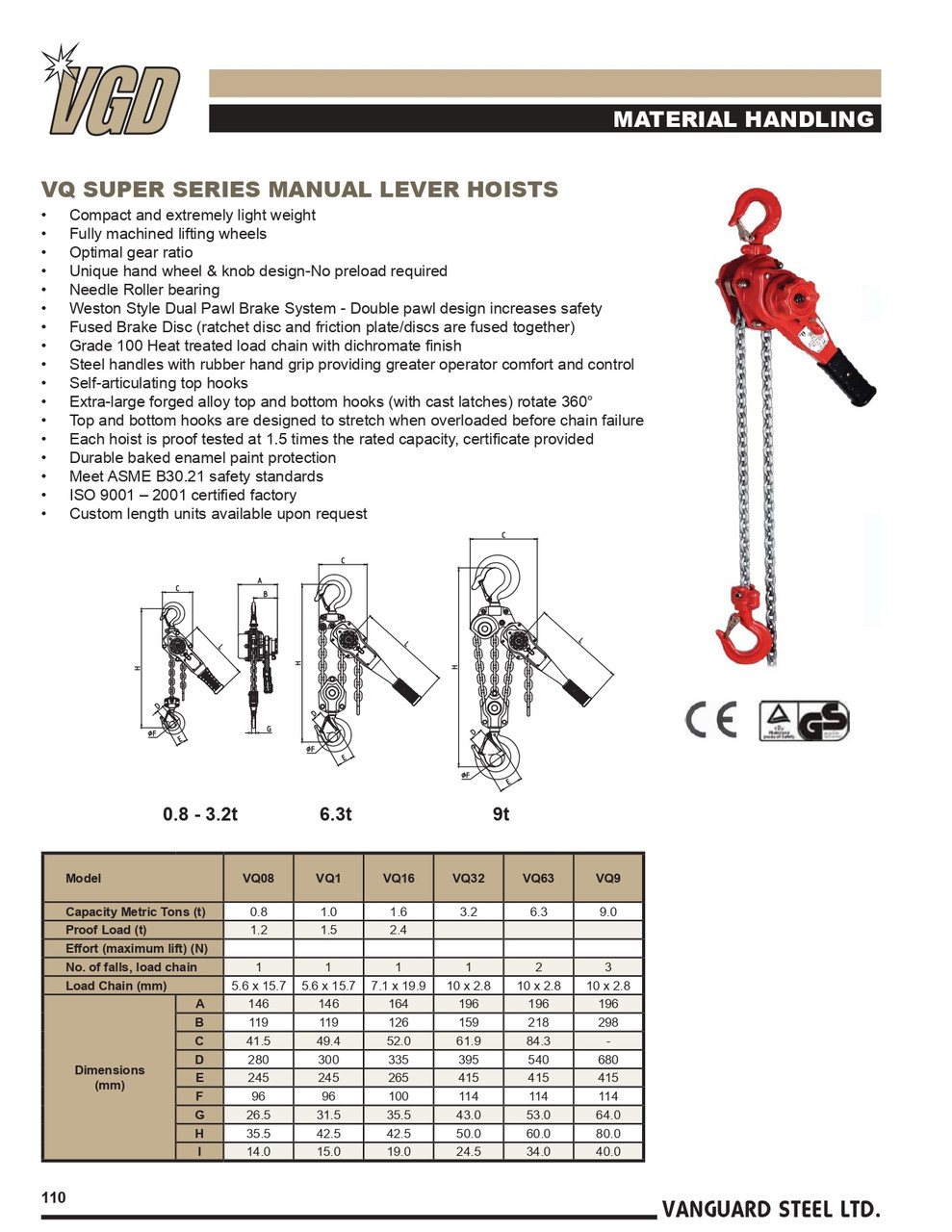

Vanguard Catalog

Working load limit 0.8T

Lift (ft) 10'
