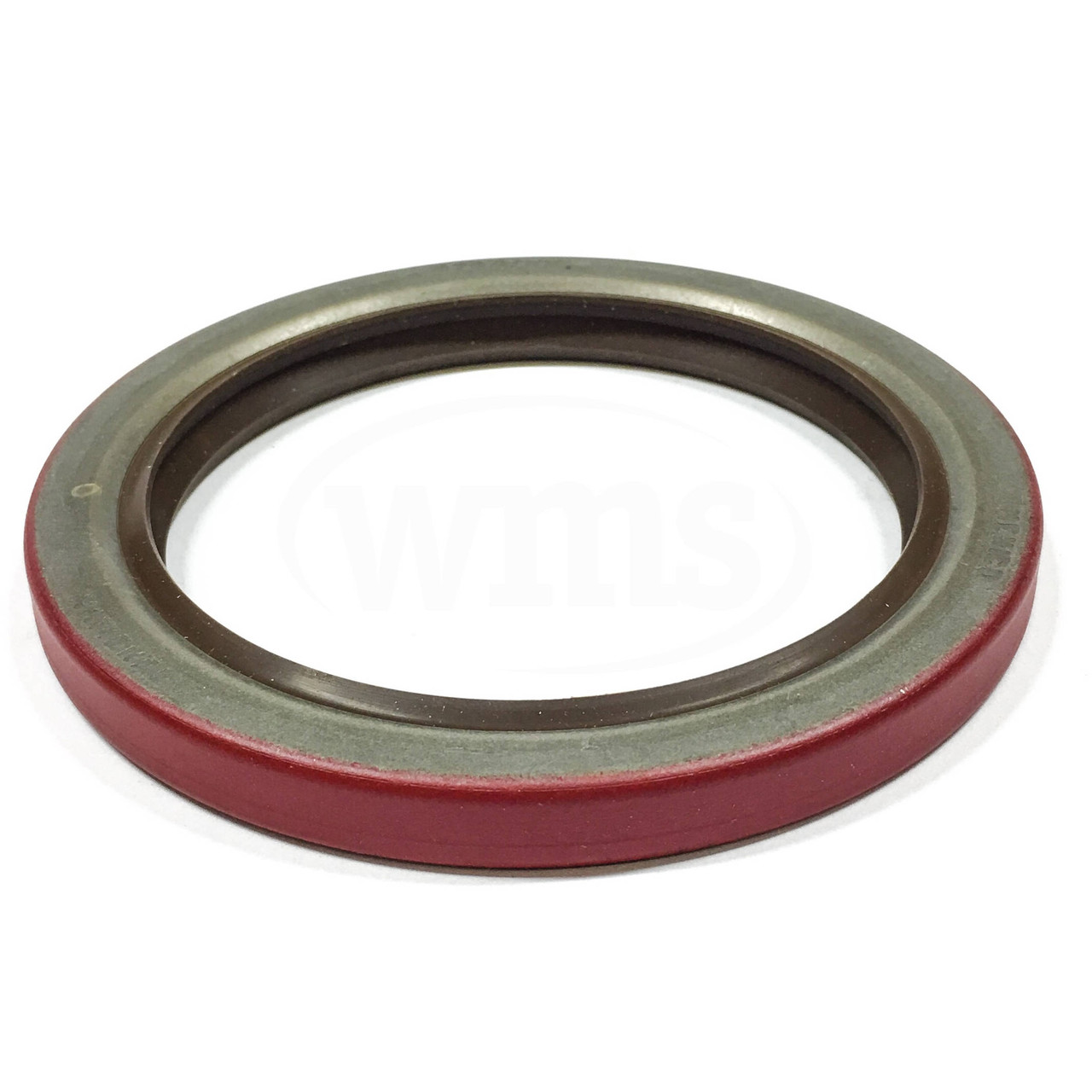

  • 0.812" Inch Metal Double Lip Viton® Oil Seal 471645V
  • 0.812" Inch Metal Double Lip Viton® Oil Seal 471645V
  • 0.812" Inch Metal Double Lip Viton® Oil Seal 471645V
  • 0.812" Inch Metal Double Lip Viton® Oil Seal 471645V
  • 0.812" Inch Metal Double Lip Viton® Oil Seal 471645V
  • 0.812" Inch Metal Double Lip Viton® Oil Seal 471645V

    • 0.812" Inch Metal Double Lip Viton® Oil Seal 471645V

    National Oil Seals

    $38.09
    (No reviews yet) Write a Review
    SKU:
    NAT 471645V
    UPC:
    UPC 053893509662
    Weight:
    0.03 LBS
    Shaft size:
    0.812"
    Seal outer diameter:
    1.628"
    Seal width:
    0.250"
    Seal type & style:
    47 (Double lip)
    Lip material:
    V (Viton®)
    Case material:
    Redicoat® on metal case
    Temperature range:
    -40° ~ 204°C (-40° ~ 400°F)
    Spring retained:
    Yes
    Seal series:
    470000
    Hardness:
    75 Durometer
    Denoted measurement:
    Inch
    Shown in catalog:
    Yes
    Adding to cart… category.add_cart_announcement

    Product Description

  • Viton® FKM (Lip code: V) fluoroelastomer premium lip material offers the widest temperature range and chemical resistance of all seal materials.
  • Fluoroelastomers resist most special lubricants and chemicals that can destroy nitrile, polyacrylates or silicones.
  • This premium material, with its superior resistance to abrasion and high temperatures, provides superior performance and wear.
  • Works in dry running applications but only for intermittent periods.
  • It must be noted that although fluoropolymers such as FKM and PTFE are classed as resistant to high temperatures, they will thermally degrade on exposure to extreme temperatures (FKM @ 316°C/600°F) and (PTFE @ 371°C/700°F) and emit hazardous fumes containing hydrofluoric acid (HF).
  • In the unlikely event of such a high temperature incident, allow the components in question to cool, douse with limewater (Calcium hydroxide solution), and handle with PVC gloves until neutral pH confirmed, then discard.

  • Many of Nationals metal cased seals are offered with Redi-Coat® rubberized coating which is applied over the seals bare metal case and helps fill in any minor bore imperfections upon installing the new seal.

  • Please note that not all product images are representative of the item being shown but are similar in appearance. Please refer to the seals technical specifications sheet provided in the image carousel for absolute confirmation before ordering.

    Follow this link for access to Timken's interactive, multi-vehicle, bearing & seal application database.

    Follow this link to access Timken's National oil seal & competitor's interchange.

    adobepdficon.png Timken Metric Oil Seal Catalog

    adobepdficon.png National 7707 Inch Oil Seal Catalog & Interchange

    • Product Videos

    Custom Field

    Shaft size 0.812"
    Seal outer diameter 1.628"
    Seal width 0.250"
    Seal type & style 47 (Double lip)
    Lip material V (Viton®)
    Case material Redicoat® on metal case
    Temperature range -40° ~ 204°C (-40° ~ 400°F)
    Spring retained Yes
    Seal series 470000
    Hardness 75 Durometer
    Denoted measurement Inch
    Shown in catalog Yes
